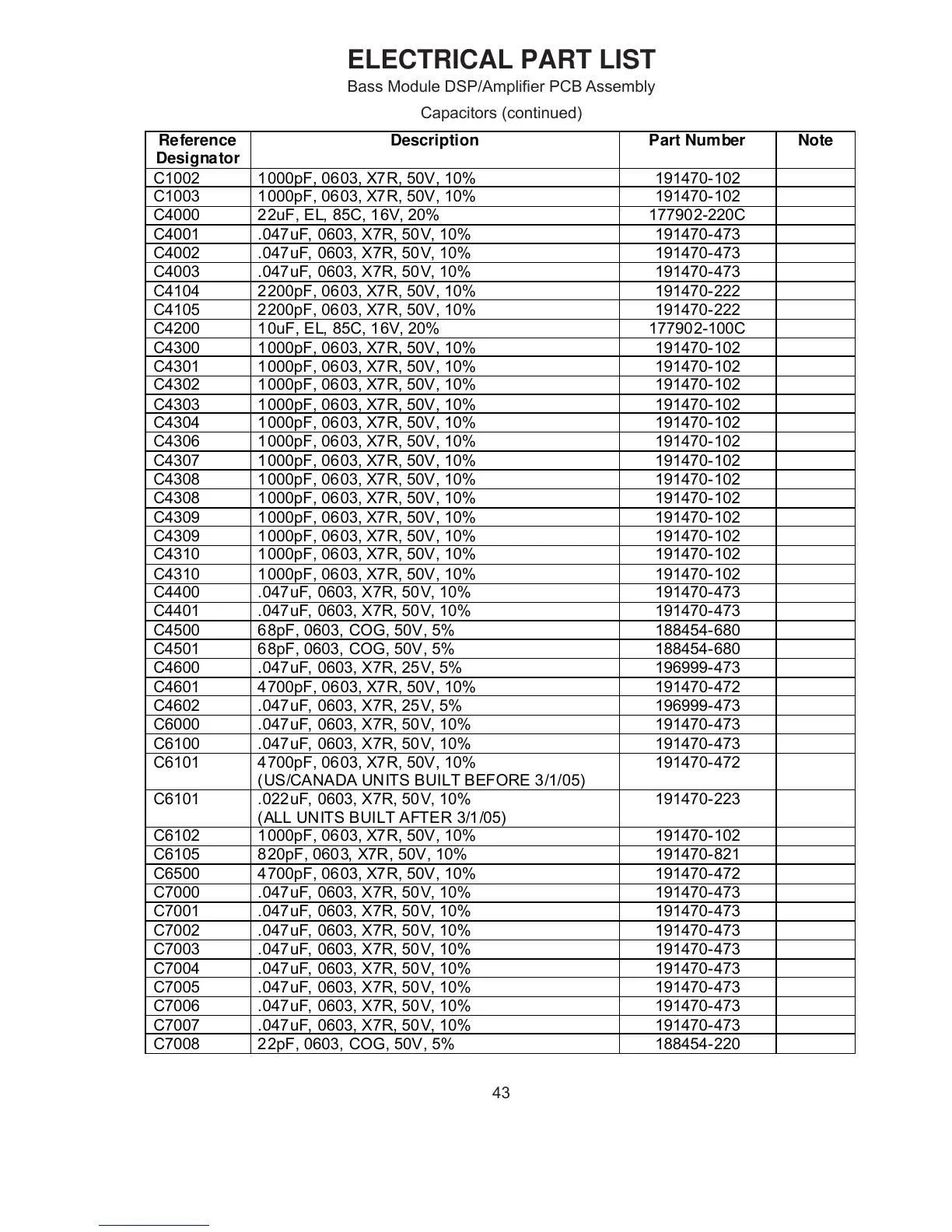

ELECTRICAL PART LIST
Bass Module DSP/Amplifier PCB Assembly
Capacitors (continued)
Reference
Designator
Description Part Numbe
r
Note
C1002 1000
p
F, 0603, X7R, 50V, 10% 191470-102
C1003 1000pF, 0603, X7R, 50V, 10% 191470-102
C4000 22uF, EL, 85C, 16V, 20% 177902-220C
C4001 .047uF, 0603, X7R, 50V, 10% 191470-473
C4002 .047uF, 0603, X7R, 50V, 10% 191470-473
C4003 .047uF, 0603, X7R, 50V, 10% 191470-473
C4104 2200
p
F, 0603, X7R, 50V, 10% 191470-222
C4105 2200pF, 0603, X7R, 50V, 10% 191470-222
C4200 10uF, EL, 85C, 16V, 20% 177902-100C
C4300 1000
p
F, 0603, X7R, 50V, 10% 191470-102
C4301 1000pF, 0603, X7R, 50V, 10% 191470-102
C4302 1000pF, 0603, X7R, 50V, 10% 191470-102
C4303 1000
p
F, 0603, X7R, 50V, 10% 191470-102
C4304 1000pF, 0603, X7R, 50V, 10% 191470-102
C4306 1000pF, 0603, X7R, 50V, 10% 191470-102
C4307 1000
p
F, 0603, X7R, 50V, 10% 191470-102
C4308 1000pF, 0603, X7R, 50V, 10% 191470-102
C4308 1000pF, 0603, X7R, 50V, 10% 191470-102
C4309 1000
p
F, 0603, X7R, 50V, 10% 191470-102
C4309 1000pF, 0603, X7R, 50V, 10% 191470-102
C4310 1000pF, 0603, X7R, 50V, 10% 191470-102
C4310 1000pF, 0603, X7R, 50V, 10% 191470-102
C4400 .047uF, 0603, X7R, 50V, 10% 191470-473
C4401 .047uF, 0603, X7R, 50V, 10% 191470-473
C4500 68
p
F, 0603, COG, 50V, 5% 188454-680
C4501 68pF, 0603, COG, 50V, 5% 188454-680
C4600 .047uF, 0603, X7R, 25V, 5% 196999-473
C4601 4700
p
F, 0603, X7R, 50V, 10% 191470-472
C4602 .047uF, 0603, X7R, 25V, 5% 196999-473
C6000 .047uF, 0603, X7R, 50V, 10% 191470-473
C6100 .047uF, 0603, X7R, 50V, 10% 191470-473
C6101 4700pF, 0603, X7R, 50V, 10%
(US/CANADA UNITS BUILT BEFORE 3/1/05)
191470-472
C6101 .022uF, 0603, X7R, 50V, 10%
(ALL UNITS BUILT AFTER 3/1/05)
191470-223
C6102 1000pF, 0603, X7R, 50V, 10% 191470-102
C6105 820pF, 0603, X7R, 50V, 10% 191470-821
C6500 4700pF, 0603, X7R, 50V, 10% 191470-472
C7000 .047uF, 0603, X7R, 50V, 10% 191470-473
C7001 .047uF, 0603, X7R, 50V, 10% 191470-473
C7002 .047uF, 0603, X7R, 50V, 10% 191470-473
C7003 .047uF, 0603, X7R, 50V, 10% 191470-473
C7004 .047uF, 0603, X7R, 50V, 10% 191470-473
C7005 .047uF, 0603, X7R, 50V, 10% 191470-473
C7006 .047uF, 0603, X7R, 50V, 10% 191470-473
C7007 .047uF, 0603, X7R, 50V, 10% 191470-473
C7008 22pF, 0603, COG, 50V, 5% 188454-220
