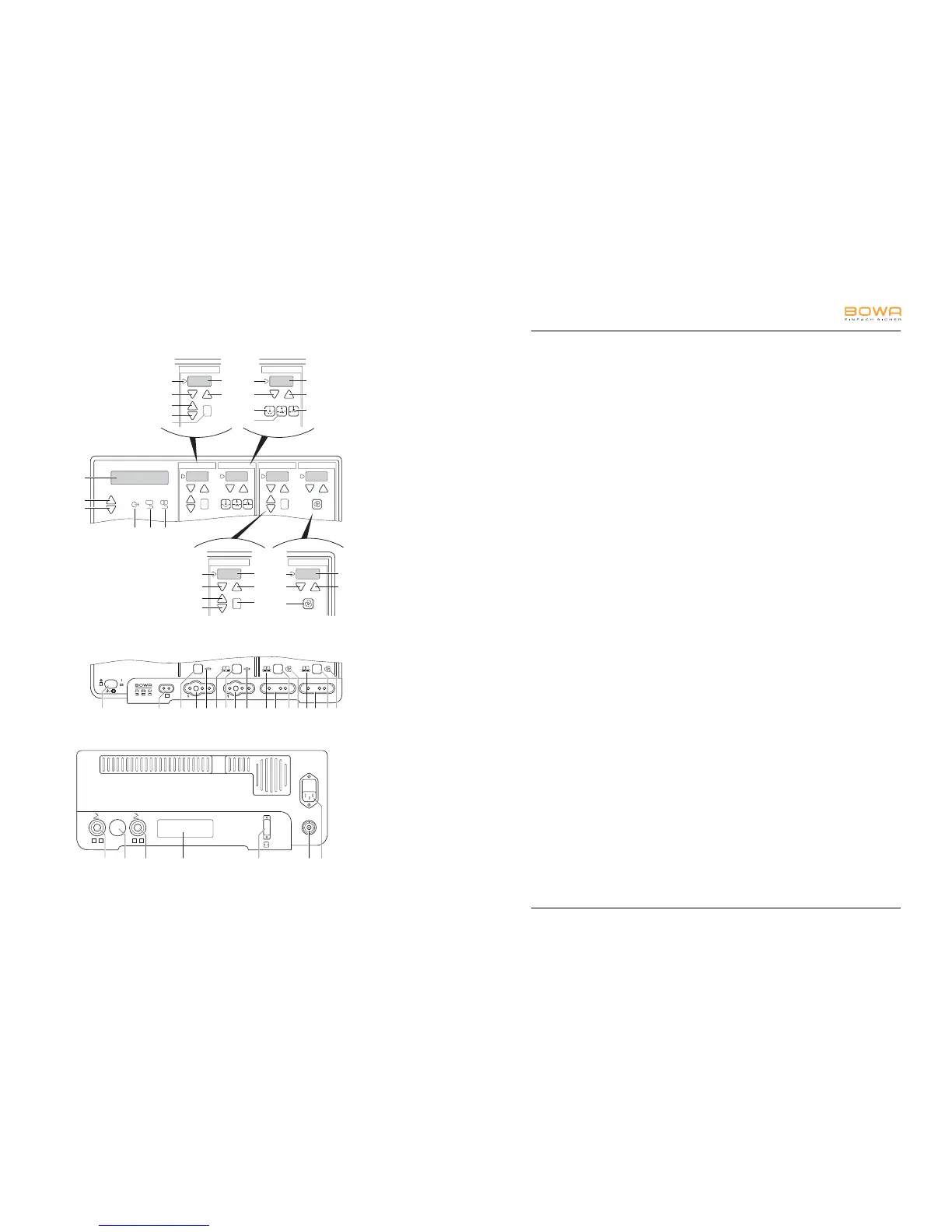

Legend
6 ARC 300 / ARC 350 Operating manual 900-350_IFU_V2.6_10296-S13-20100111-EN
Monopolar Cut
Blend
Bipolar Coag
ON
Bipolar Cut
Blend
15
18
Monopolar Coag
Program
F
321 4
Monopolar Cut Bipolar Cut Bipolar CoagMonopolar Coag
Blend Blend ON
15
18
1
3 4
2
5
6
7
8
10 11
12 14
9
13
21
23 24
25
26
27
22
28
30
32
31
29
16
15
17
36 37 41 42 46353433 38 40 43
201918
4744 45 494839
1
3+
23
4 2+3
50 51 52 54 5653 55
ARC 300/350
Legend
1 "Monopolar Cut" indicator arrow (yellow)
2 "Monopolar Cut" 7-segment indicator
3/4 Power limitation for monopolar cutting
5/6 Key for the degree of scabbing during monopolar cutting
7 Blend factor indicator for "Monopolar Cut"
Blend settings 0-9
8 Indicator arrow for "Monopolar Coag" (blue)
9 "Monopolar Coag" 7-segment indicator
10/11 Power limitation for monopolar coagulation
12 Key/indicator for "Moderate Coagulation" current
13 Key/indicator for "Forced Coagulation" current
14 Key/indicator for "Spray Coagulation" current
15 Indicator on main display: programs and information
Current indicator on 2-line display
16/17 Program key
18 Error status indicator
19 EASY neutral electrode monitoring for solid neutral
electrode(EASY monitoring solid)
20 EASY neutral electrode monitoring for split neutral
electrode(EASY monitoring split)
21 "Bipolar Cut" indicator arrow (yellow)
22 "Bipolar Cut" 7-segment indicator
23/24 Power limitation for bipolar cutting
25/26 Key for the degree of scabbing during bipolar cutting
27 Blend factor indicator for "Bipolar Cut"
Blend settings 0–9
28 Indicator arrow for "Bipolar Coag" (blue)
29 "Bipolar Coag" 7-segment indicator
30/31 Power limitation for bipolar coagulation
32 AUTOSTART key/indicator "Bipolar Output 3 or 4“
(connection socket 43 or 47)
Only for bipolar coagulation!
33 On/off switch
34 Socket for the neutral electrode (NE)
35 Key/indicator for "Monopolar Output 1"
(connection socket 36)
For monopolar instruments with manual switching
36 Connection socket for monopolar instruments with manual
switching
37 "Monopolar Output 1" finger switch indicator
38 "Monopolar Output 2"
foot switch assignment indicator
39 "Monopolar Output 2" key/indicator
(connection socket 40)
