11 Technical specifications
90 ARC 300 / ARC 350 Operating manual 900-350_IFU_V2.6_10296-S13-20100111-EN
Setting Program
Moderate COAG Dessication 3 0-6, 9, 12, 14-16, 17, 24-99 (socket 1+2),
23 (only socket 1)
Dessicate 3
60W
Dessicate 3
120W
ARC350MCD3_SE_080124_2
0
20
40
60
80
100
120
140
10 100 1000 10000
R [
]
P [W]
Measurement of resistances

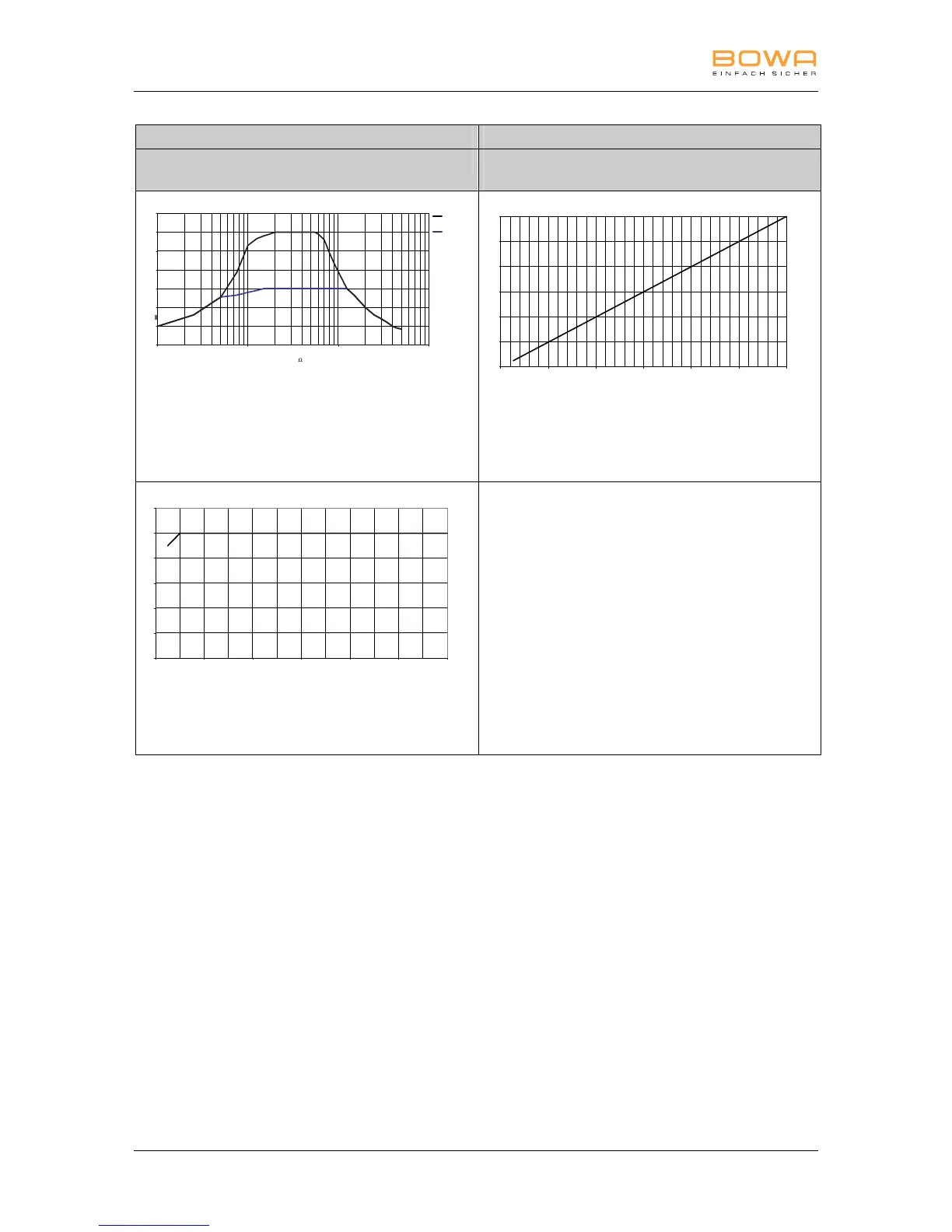

• Diagram of power output P [W] as a
function of the load resistance R [Ω] for
the setting “Moderate COAG
Dessication 3” = 120 W/60 W
ARC350MCD3_SE_080124_2
0
20
40
60
80
100
120
0 20 40 60 80 100 120
displayed value
P [W]
• Diagram of power output P [W] as a
function of the “Moderate COAG
Dessication 3” setting. Measured load
resistance = 500 Ω
ARC350MCD3_SE_080125_3
0
100
200
300
400
500
600
0 20 40 60 80 100 120
displayed value
U [Vp]
• Diagram of HF output voltage U [Vp] as
a function of the “Moderate COAG
Dessication 3” setting (idle mode)
