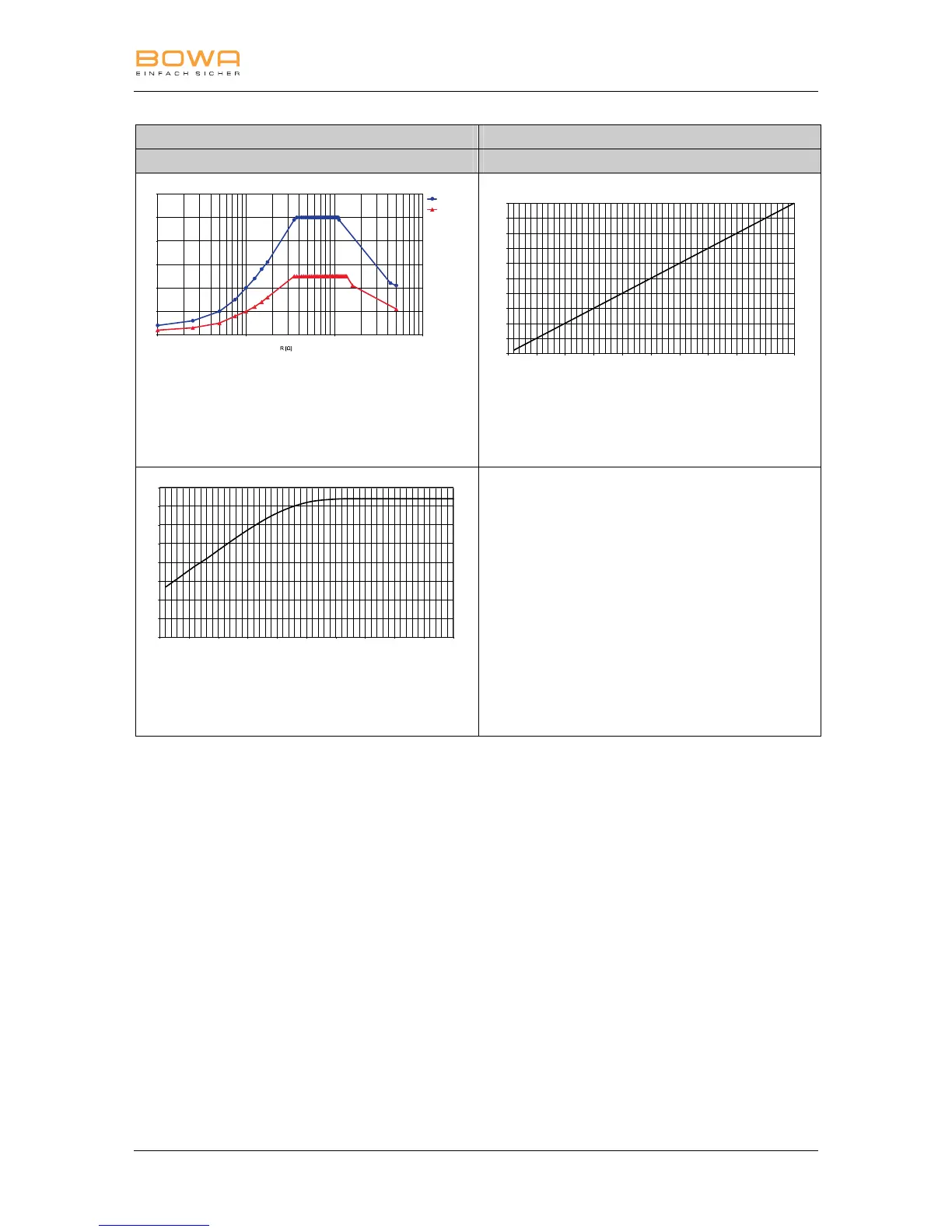

11 Technical specifications
900-350_IFU_V2.6_10296-S13-20100111-EN ARC 300 / ARC 350 Operating manual 95
Setting Program
GastroCUT ForcedCOAG 21, 22 (only Socket 2)
ARC350GCFC_SE_080125_1
0
10
20
30
40
50
60
10 100 1000 10000
P [W]
P=25W
P=50W
Measurement of resistances
• Diagram of power output P [W] as a
function of the load resistance R [Ω] for
the setting “GastroCUT ForcedCOAG”
= 50 W/25 W
ARC350GCFC_SE_080125_3
0
5
15
25
35
45
10
20
30
40
50
0 5 10 15
20 3025 35 40 45 50
displayed value
P [W]
• Diagram of power output P [W] as a
function of the “GastroCUT
ForcedCOAG” setting. Measured load
resistance = 500 Ω
ARC350GCFC_SE_080125_2
0
500
1000
1500
2000
2500
3000
3500
4000
0 5 10 15 20 25 30 35 40 45 50
displayed value
U [Vp]
• Diagram of HF output voltage U [Vp] as
a function of the “GastroCUT
ForcedCOAG” setting (idle mode)
