Assembling Your BOWFLEX Ultimate
10

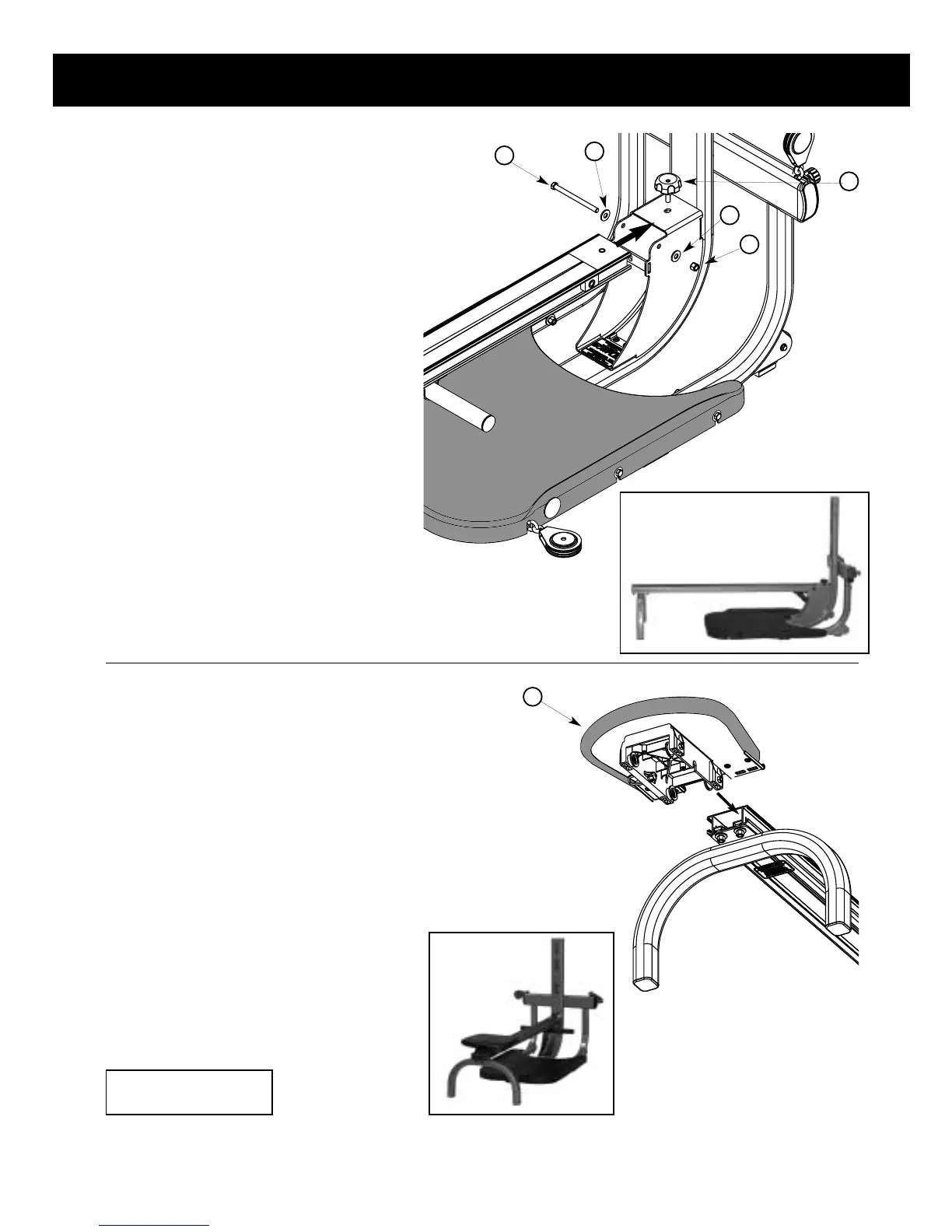

Step 8: SEAT INSTALLATION
Locate the following parts for this step:
• Seat Assembly
❏ Pull out and lock the pin on the left side of the seat
assembly and slide the seat onto the rail as shown in
Figure G.
Figure G
14
Unit appears
like this
following this
assembly step
Step 7: SEAT RAIL INSTALLATION
The following parts are required for this step:
• Seat Rail (Item #10)
• One (1) 3/8"X5" bolt (Item #53)
• Two (2) 3/8" washers (Item #54)
• One (1) 3/8" nylon lock nut (Item #57)
• Large Knob (Item #37)
❏ If you have not already done so, remove
the twist-tie that holds the rail spacer blocks
and tube in place on the side of the seat rail.
❏ Slide the seat rail, right side up, into the
main frame and rest it on the cross bar as
shown in Figure F.
❏ Slide the 3/8"X5" bolt (Item #53) with a
washer through main frame and seat rail as
shown in Figure F. Place 3/8" washer
(Item
#54)
and 3/8" nylon lock nut
(Item #57) on bolt and tighten.
❏ Place the large knob (Item #37) into the
hole in the top of the frame and tighten.
Figure F
37
53
54
54
57
Unit appears like
this following this
assembly step
Components for this
step are in Box 3
