Bowflex ULTIMATE - Leg Assembly Parts List

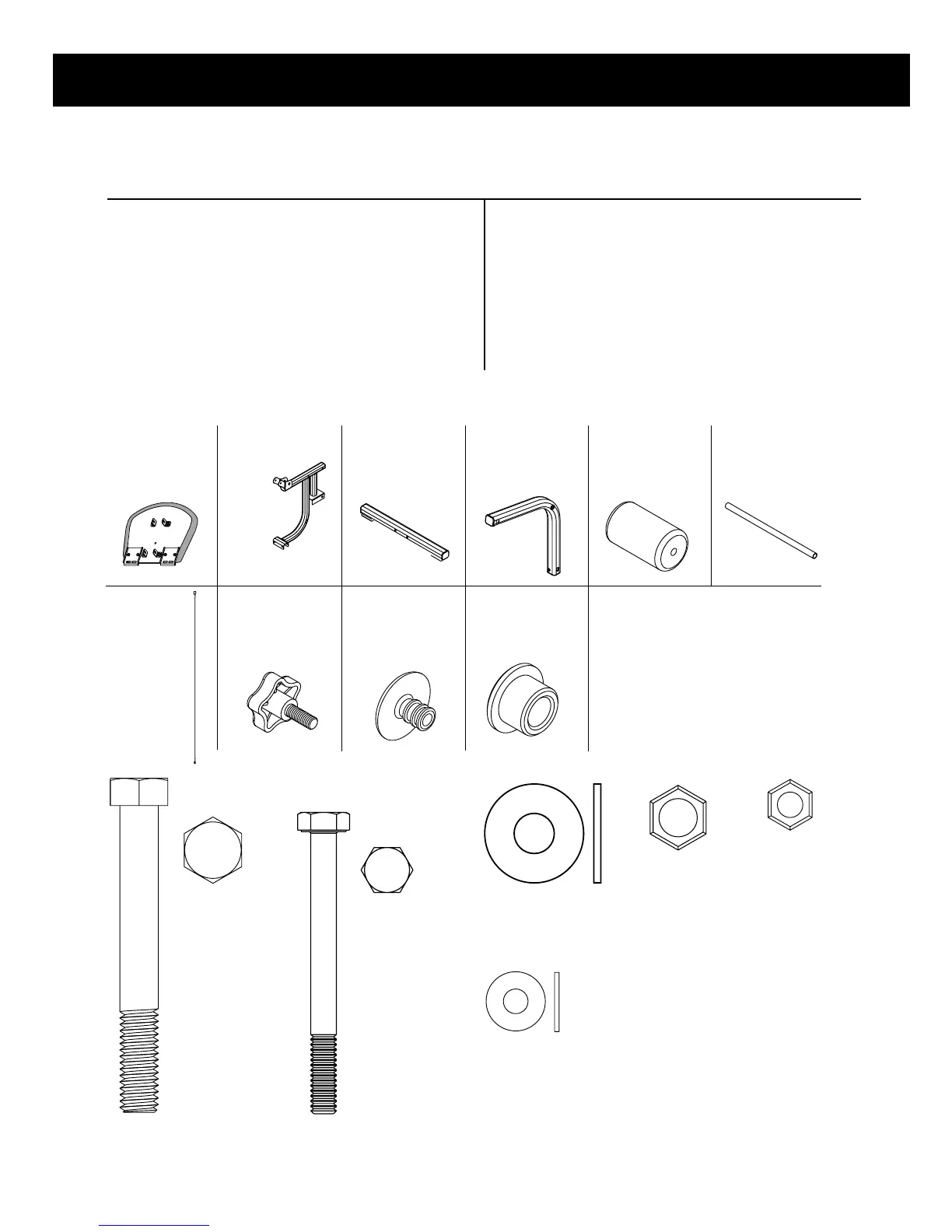

BOWFLEX Ultimate Leg Assembly Parts Reference Guide
16
Item #: 61
Qty.: 1
Part #: 10053
Descr: Leg Extension
Seat Assembly
Item #: 63
Qty.: 1
Part #: 10052
Descr: Leg Extension
Foot Tube
Item #: 68
Qty.: 2
Part #: 90161
Descr: 1” Small
Knob
Item #: 69
Qty.: 6
Part #: 90218
Descr: 3/4” End Cap
Item #: 70
Qty.: 2
Part #: 90189
Descr: Pivot Bushing
Item #: 64
Qty.: 1
Part #: 10054
Descr: Leg Extension
Pivot Tube
Item #: 65
Qty.: 6
Part #: 50304
Descr: Leg Extension
Roller
Item #: 67
Qty.: 2
Part #: 10056
Descr: Leg Ext.
Cable
Length: 73.50”
Item #: 62
Qty.: 1
Part #: 10051
Descr:
Leg Ext.
Main Frame
55 4 90153 1/4” WASHER
61 1 10053 LEG EXTENSION SEAT ASSEMBLY
62 1 10051 LEG EXTENSION MAIN FRAME
63 1 10052 LEG EXTENSION FOOT TUBE
64 1 10054 LEG EXTENSION PIVOT TUBE
65 6 50304 FOAM ROLLER
66 3 95206A 3/4”X15 3/4” CHROME TUBE
67 2 10056 LEG EXTENSION CABLE
68 2 90161 1” SMALL STAR KNOB
69 6 90218 3/4” END CAP
70 2 90189 PIVOT BUSHING
71 2 10170 HEX HEAD BOLT, 1/4" X 2-3/4"
72 2 90204 NUT, 1/4" NYLON LOCK
Leg Assembly Parts List
Item #: 66
Qty.: 3
Part #: 95206A
Descr: Leg Extension
Chrome Tube
Item #: 51
Qty.: 3
Part #: 90139
Descr: 3/8” X 3”
Bolt
Item #: 54
Qty.: 6
Part #: 90138
Descr: 3/8” Washer
Item #: 57
Qty.: 3
Part #: 90196
Descr: 3/8”
Nylon Lock
Nut
Item #: 55
Qty.: 4
Part #: 90156
Descr: 1/4”
Washer
Item #: 71
Qty.: 2
Part #: 10170
Descr: 1/4” X 2-3/4”
Bolt
Item #: 72
Qty.: 2
Part #: 90204
Descr: 1/4”
Nylon Lock
Nut
Leg Assembly
The Leg Assembly is an optional attachment which,
depending on the machine you ordered, may or may not
be part of your Bowflex
.
