BOWFLEX Ultimate Lat Assembly Parts Reference Guide
14
Item #: 31
Qty.: 2
Part #: 10038
Descr: Lat
Cable
Length: 56.25”
Item #: 34
Qty.: 1
Part #: 10037
Descr: 50” Bent Bar
Item #: 20
Qty.: 1
Part #: 10032
Descr: Strap Hook
Item #: 17
Qty.: 1
Part #: 10033
Descr: Upper Lat
Cross Bar w/
pulleys
Item #: 19
Qty.: 1
Part #: 10031
Descr: Upper
Lat
Tower
Item No. Qty. Part No. Description
17 1 10033 UPPER LAT CROSS BAR W/ PULLEYS
19 1 10031 UPPER LAT TOWER
20 1 10032 STRAP HOOK
31 2 10038 LAT CABLE
33 2 50334 SNAP HOOK
34 1 10037 50” BENT BAR
Item No. Qty. Part No. Description
40 2 10163 SCREW, 1/4" x 5/8"
PHILLIPS HEAD MACHINE
46 6 10103 BOLT, 3/8" X 3/4"
50 2 10109 BOLT, 3/8" X 2-3/4"
54 10 90138 WASHER, 3/8"
57 2 90196 NUT, 38", NYLON LOCK

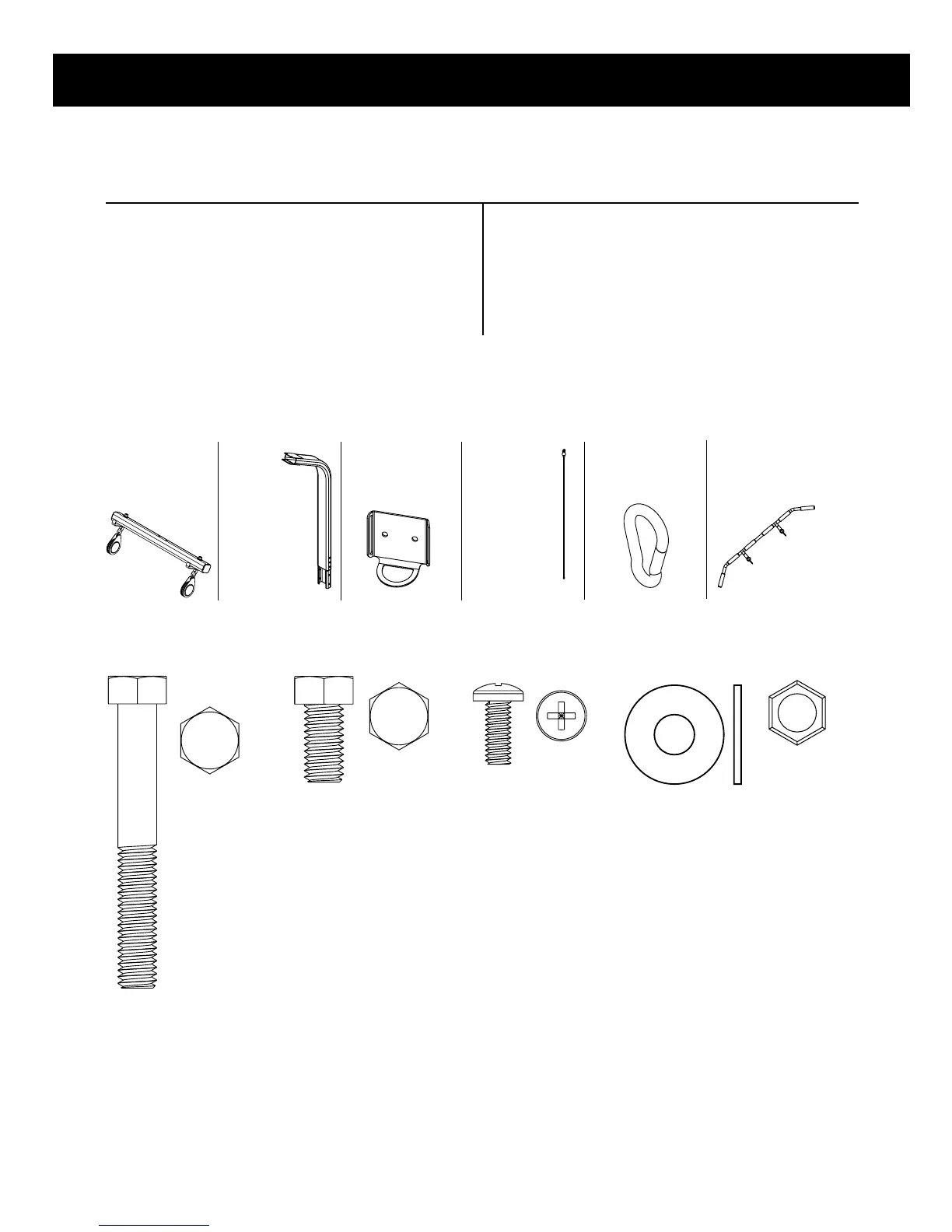

Lat Assembly Parts List
Item #: 40
Qty.: 2
Part #: 10163
Descr: 1/4” X 5/8”
Phillips Head
Machine Screw
Item #: 46
Qty.: 6
Part #: 10103
Descr: 3/8” X 3/4”
Bolt
Item #: 50
Qty.: 2
Part #: 10109
Descr: 3/8” X 2-3/4”
Bolt
Item #: 54
Qty.: 10
Part #: 90138
Descr: 3/8” Washer
Item #: 57
Qty.: 2
Part #: 90196
Descr: 3/8”
Nylon Lock
Nut
Lat Assembly
Item #: 33
Qty.: 2
Part #: 50334
Descr: Snap Hook
The Lat Assembly is an optional attachment which,
depending on the machine you ordered, may or may
not be part of your Bowflex
.
