Brady IP Series Printer
Replacing assembly units
Edition 12/07 Service Manual 17
2.11 Replacing the blades of the cutting unit

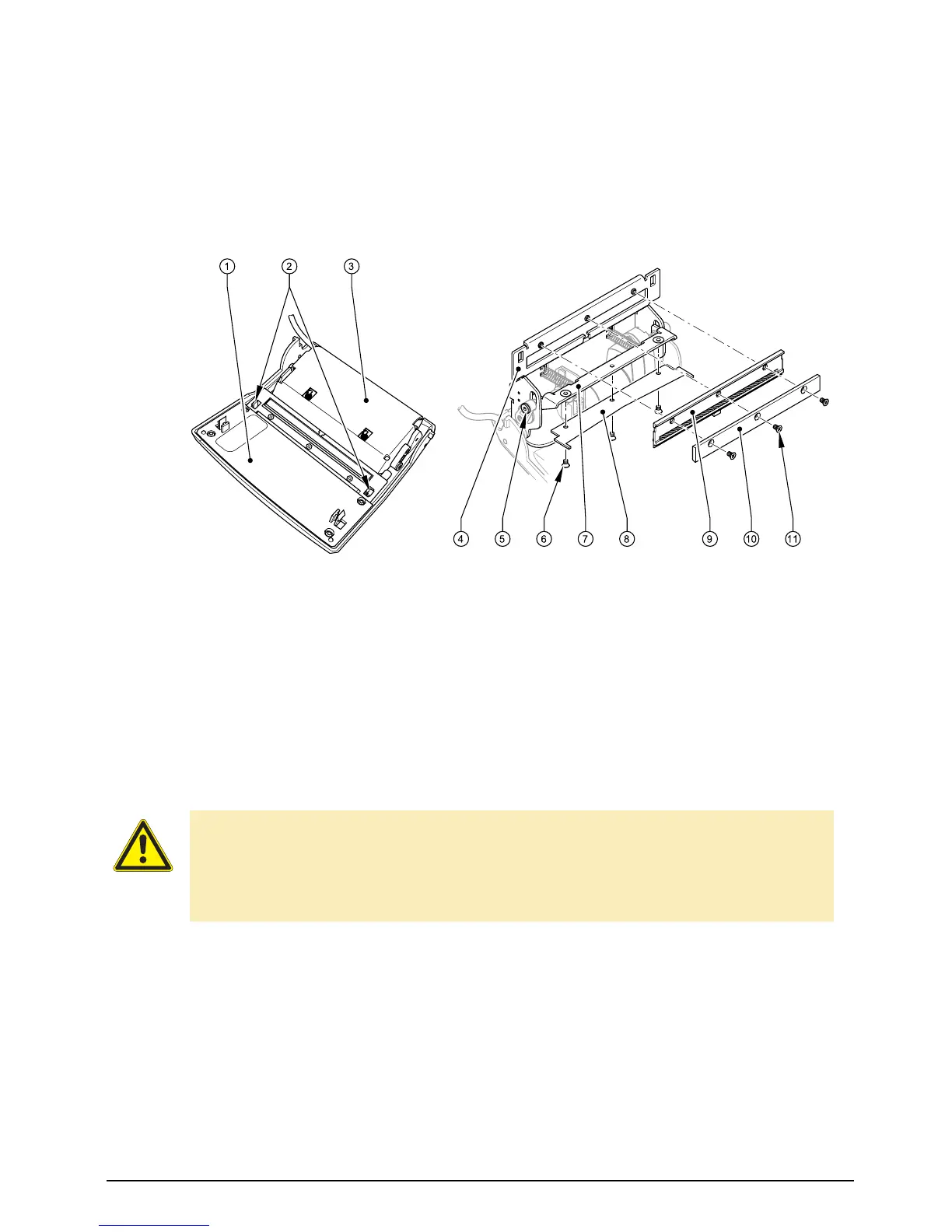

Fig. 10: Replacing the blades of the cutting unit
1. Turn the control panel (1) down and hinge it up.
2. Unlock the cutting unit (3) at the both plastic latches (2) and lift it.
3. Turn the screw (5) clockwise using a 2.5mm Allen key and that way swivel the clamp (7) with the lower blade
(8) away from the upper blade (10).
4. Loosen the three screws (6) of the lower blade (8), remove the blade and attach the new blade with
the three screws at the clamp (7).
5. Loosen the three screws (11) of the upper blade (10), remove the blade and the paper guide (9) and
attach the paper guide and the new blade with the three screws at the base plate (4).
6. Go on mounting in reverse order.
1
Control panel
2 Two plastic latches
3 Cutting unit
4 Base plate
5 Screw
6 Three screws
7 Clamp
8 Lower blade
9 Paper guide
10 Upper blade
11 Three screws
CAUTION!
Danger of cuts and bruising!
⇒ The springs at the clamp are strongly tight while turning up or down and when it is
turned down. Do not reach into the area between the blades.
⇒ Do not touch the blade edges with bare hands.
