Brainlab CURVE - 3 Rd-Party Connections

2.2.1 3rd-Party Connections
General Information
The 3rd-party equipment connections are located on the connection panel.
When connecting 3rd-party devices, adhere to the applicable regulations in IEC
60601-1:2012 clause 16.

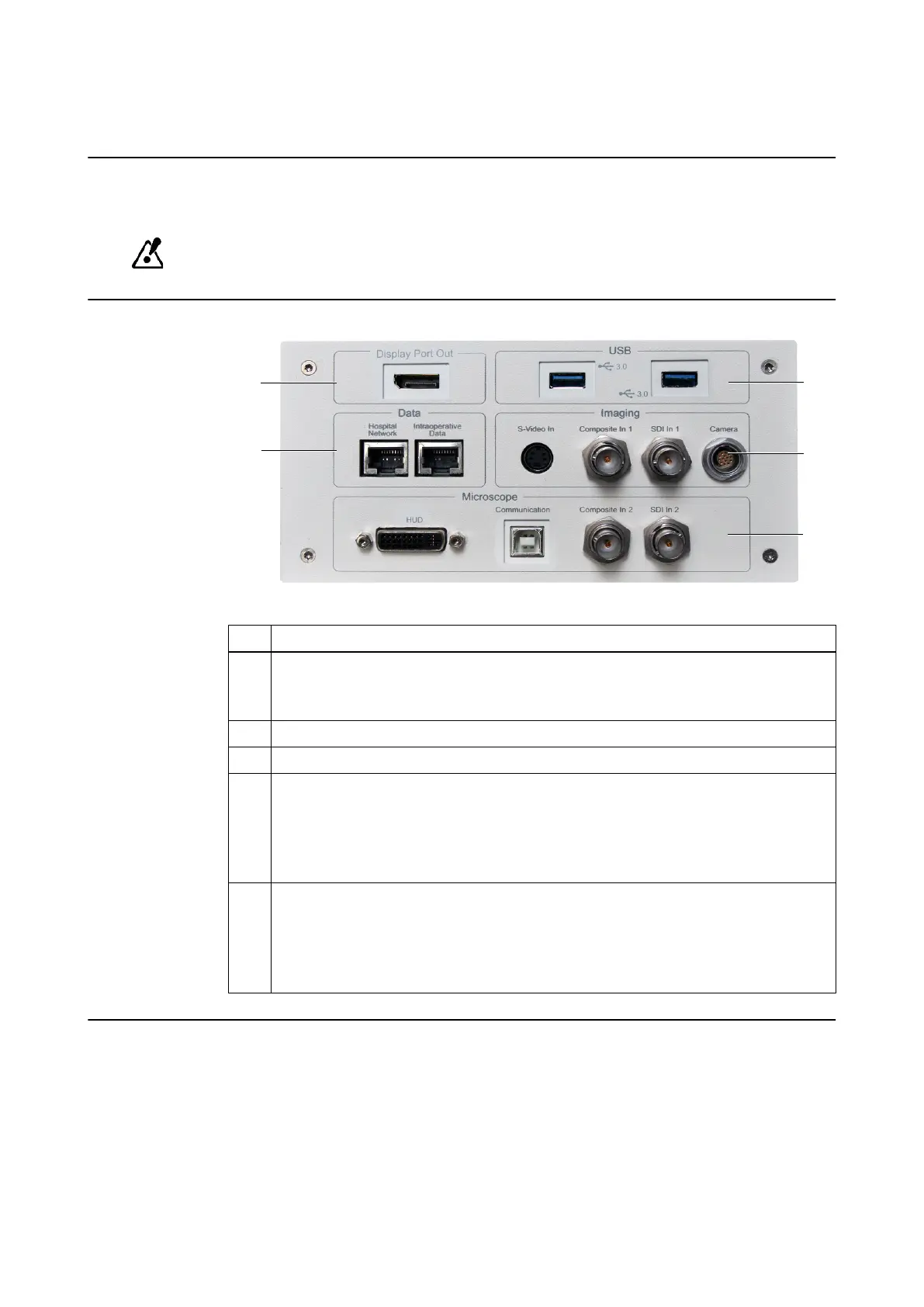

Connection Panel
①
②
③
④
⑤
Figure 4
No. Component
①
Data ports:
• Hospital Network
• Intraoperative Data
②
Display Out
③
USB ports
④
Imaging ports:
• S-Video In
• Composite In 1
• SDI In 1
• Camera
⑤
Microscope ports:
• HUD
• Communication
• Composite In 2
• SDI In 2
WLAN
The WLAN transmitter uses a frequency band for sending and receiving at 2400 - 2483.5 MHz or
5725 - 5850 MHz. The effective isotropic radiated power (EIRP) for the 2,4 GHz Band is
18,86 dBm, and for the 5 GHz Band is 21,87 dBm.
