Camera Components

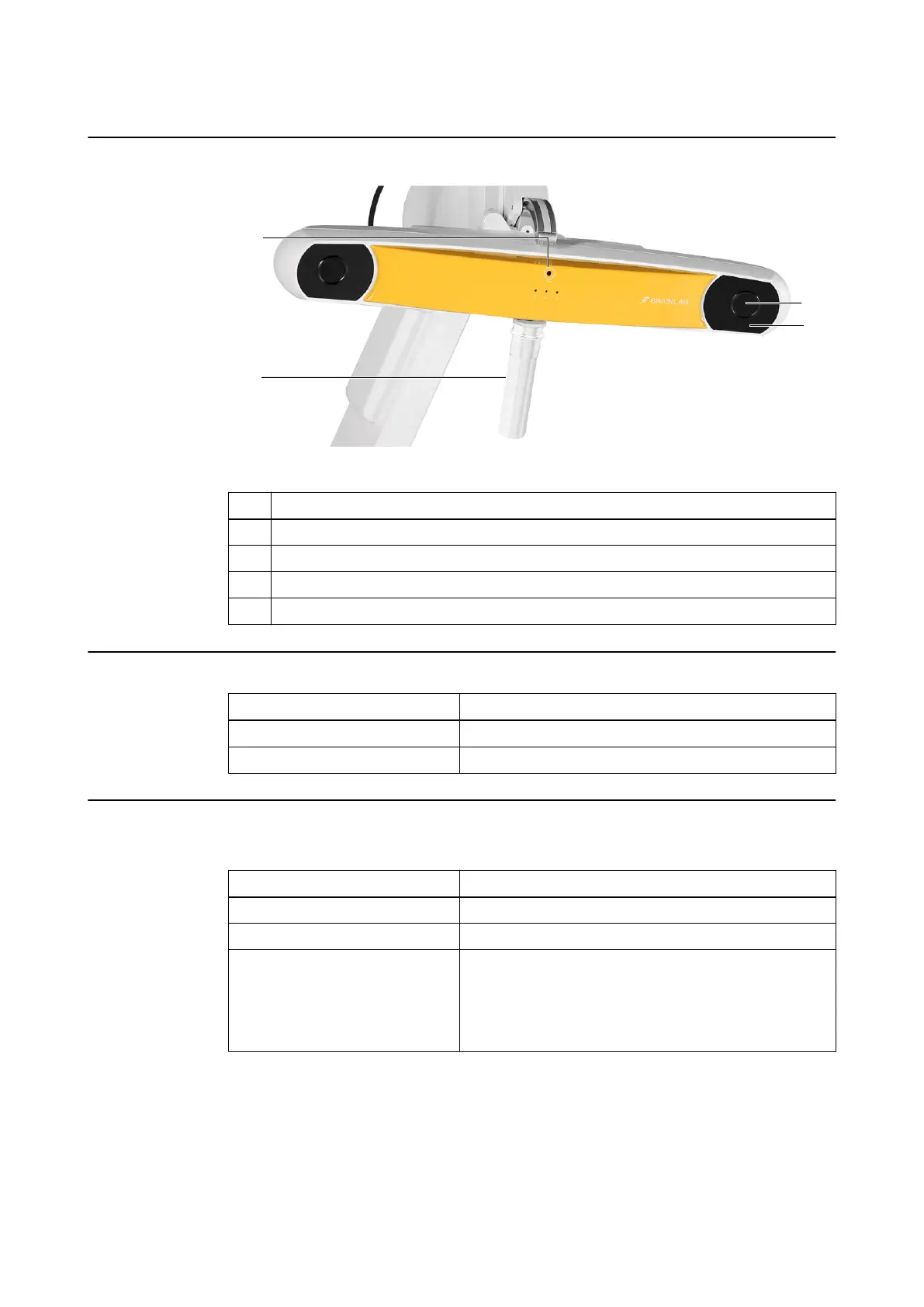

Figure 7
No. Component
①
Laser trigger (back side of handle, not visible)
②
Positioning laser
③
Lens
④
Illuminator filter
Power Specifications
Specification Value
Voltage 18-32 Vdc
Power consumption 13.5 W
Positioning Laser Specifications
The camera contains a Class II positioning laser ②.
Specification Value
Wavelength 635 nm
Maximum output 1 mW
Conforms to standards
• ANSI Z136.1 (2000)
• IEC 60825-1 (2001)
• FDA/CDRH 21 CFR 1040.10 and 1040.11 (except for de-
viations pursuant to Laser Notice No. 50 dated July 26,
2001)
Camera Cart
26 Technical User Guide Rev. 1.1 Curve Dual Navigation Station Ver. 1.2
