Brainlab CURVE - Page 32

①
③
④
⑤
⑥
⑦
⑧
⑨
⑩
②

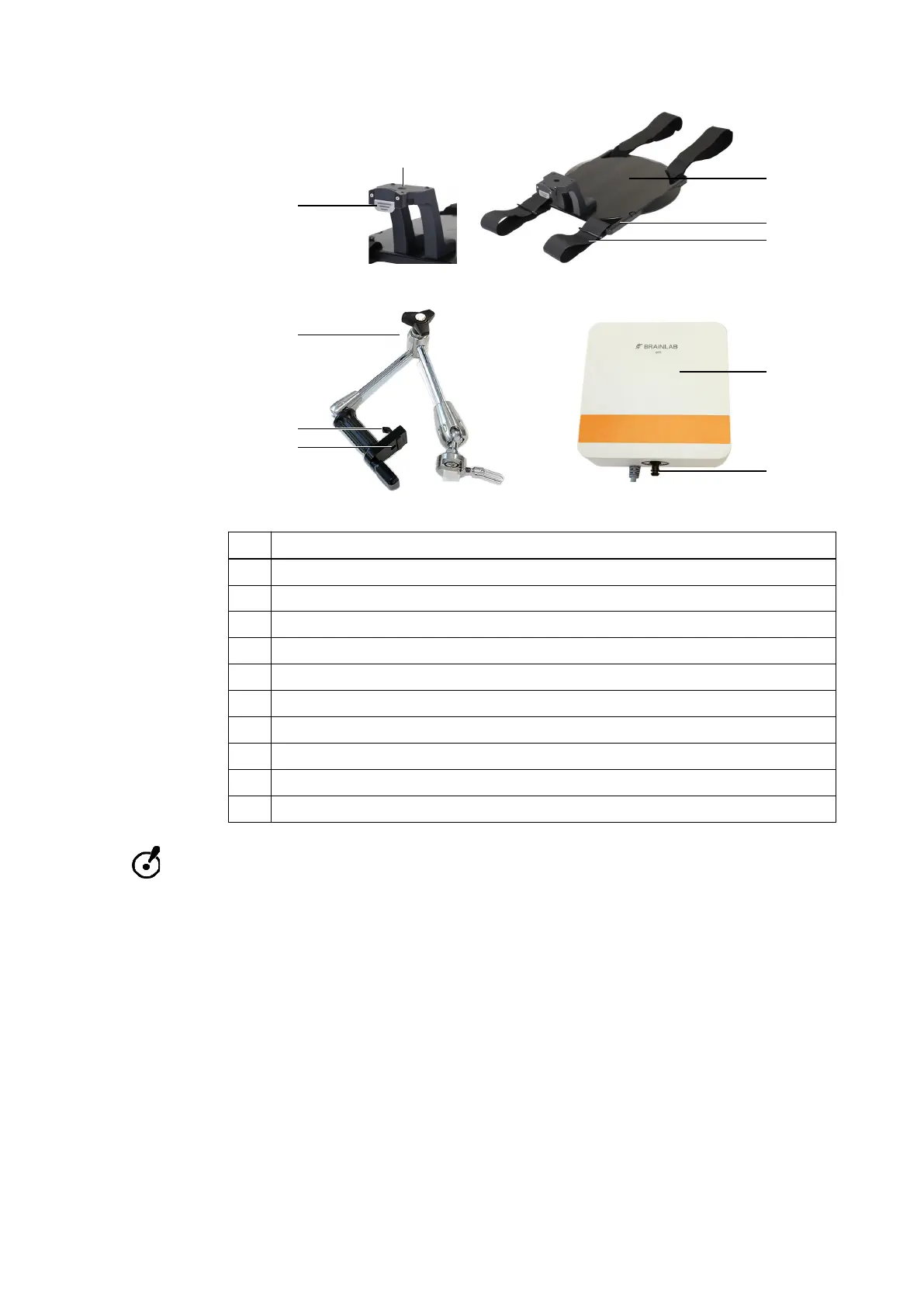

Figure 10
No. Component
①
Fixation interface for EM Field Generator Positioning Arm
②
Release mechanism for Em Field Generator Positioning Arm
③
EM Field Generator Positioning Arm
④
Release mechanism for EM Field Generator Fixation Plate
⑤
Fixation interface for EM Field Generator Fixation Plate
⑥
EM Field Generator Fixation Plate
⑦
Velcro strap attachment
⑧
Velcro strap
⑨
EM Field Generator
⑩
EM Field Generator fixation piece
Check the EM Field Generator Fixation Plate and Positioning Arm for visible damage before
use and do not used if damaged.
EM Tracking Unit
32 Technical User Guide Rev. 1.1 Curve Dual Navigation Station Ver. 1.2
