EM Tracking Field of View

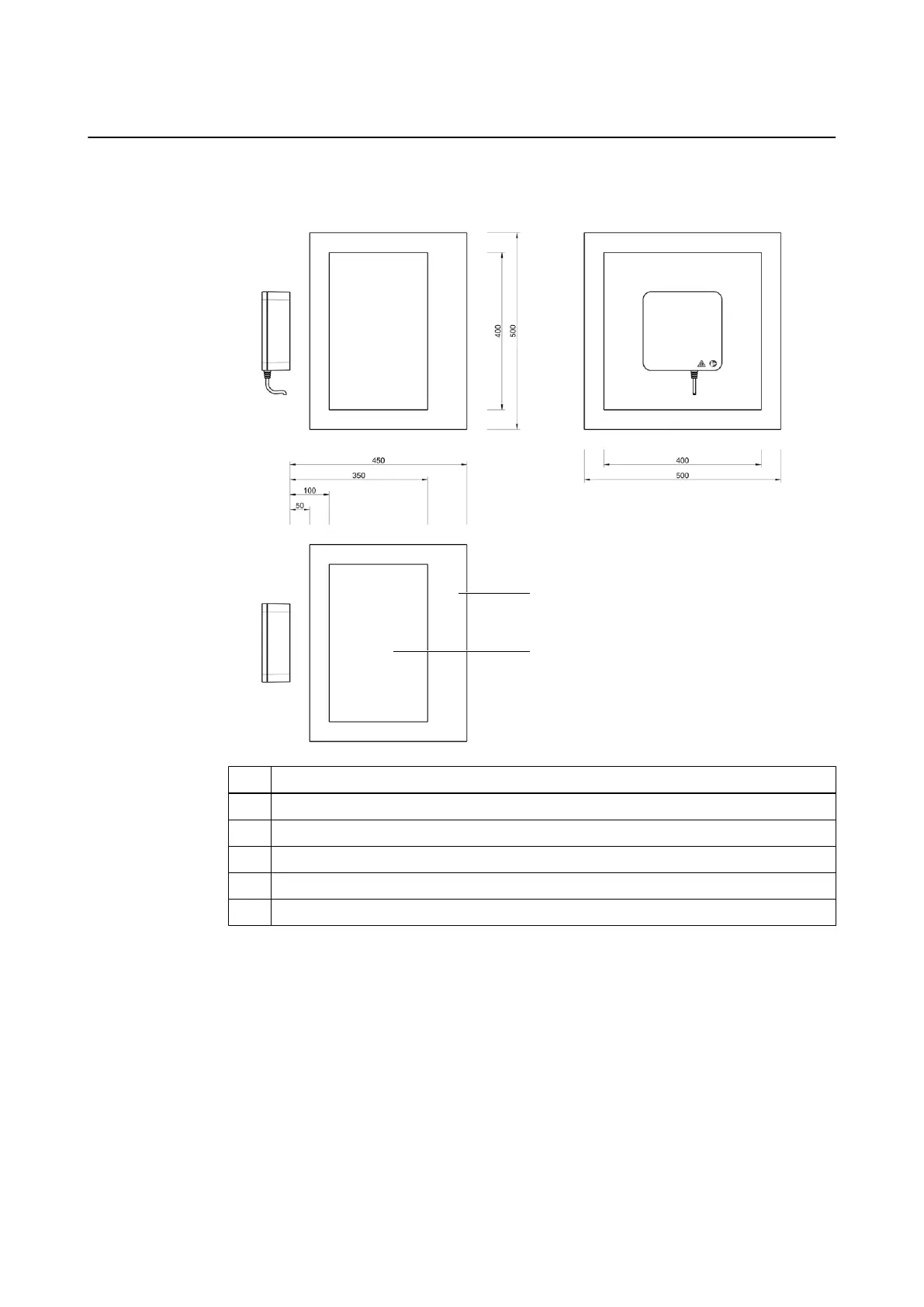

The navigation volume starts at 50 mm from the EM Field Generator front. The optimal working
distance is between 100 and 350 mm from the EM Field Generator front.
③
②
①
④
⑤
No. Component
①
Top
②
Side
③
Back
④
Available navigation volume
⑤
Ideal navigation volume
EM Tracking Unit
