INSTALLING 3POINT LINK
a) Attach the lower link to the link hook and insert pin
into hook.
b) Connect Check chain to bracket & Lift link mounting
hole and adjust length.
Refer to instruction of implement for adjusting swing
clearance.

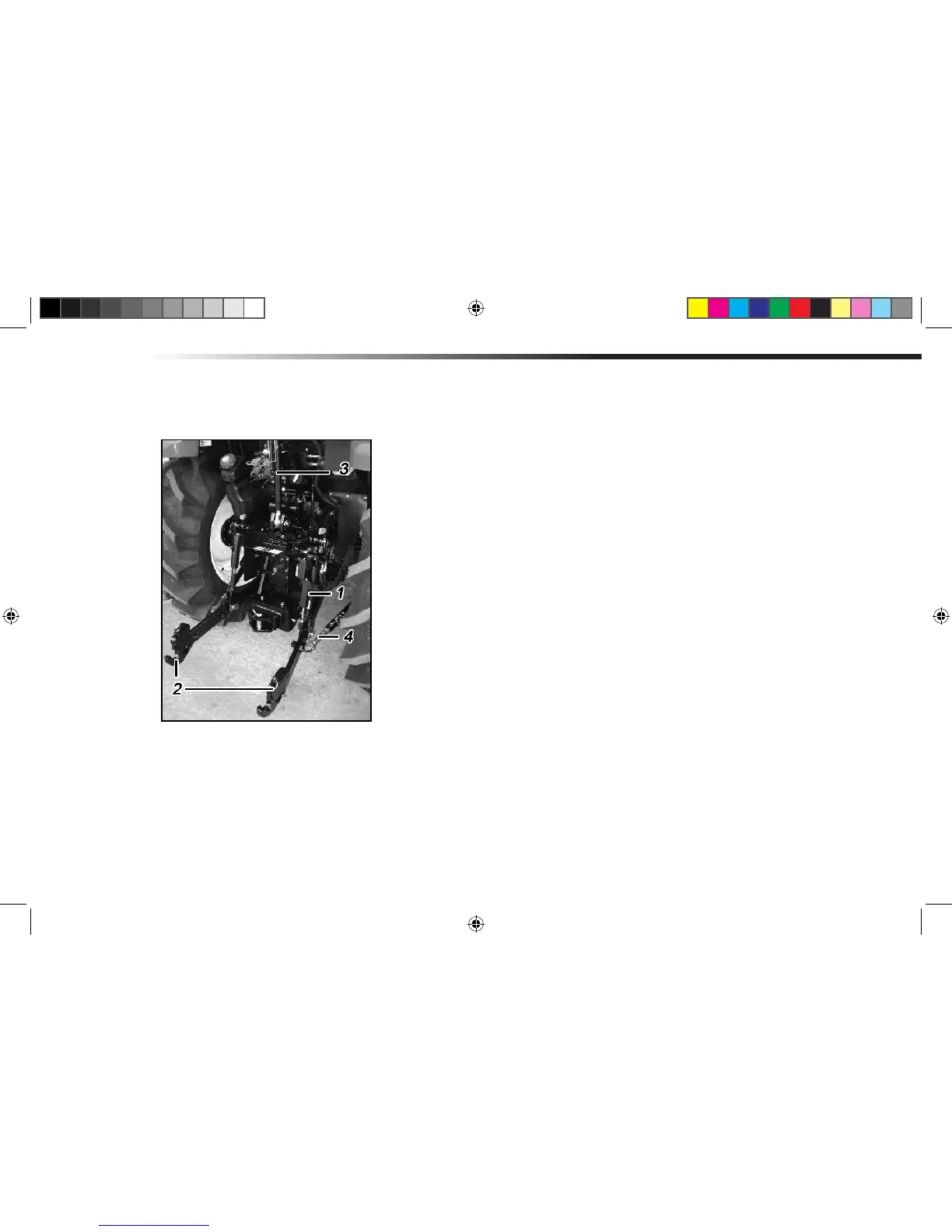

1 : LIFT LINK
2: LOWER LINK
3: CENTER LINK
4: STABILIZER LINK
