3. FRONT AXLE OIL
CHECKING OIL

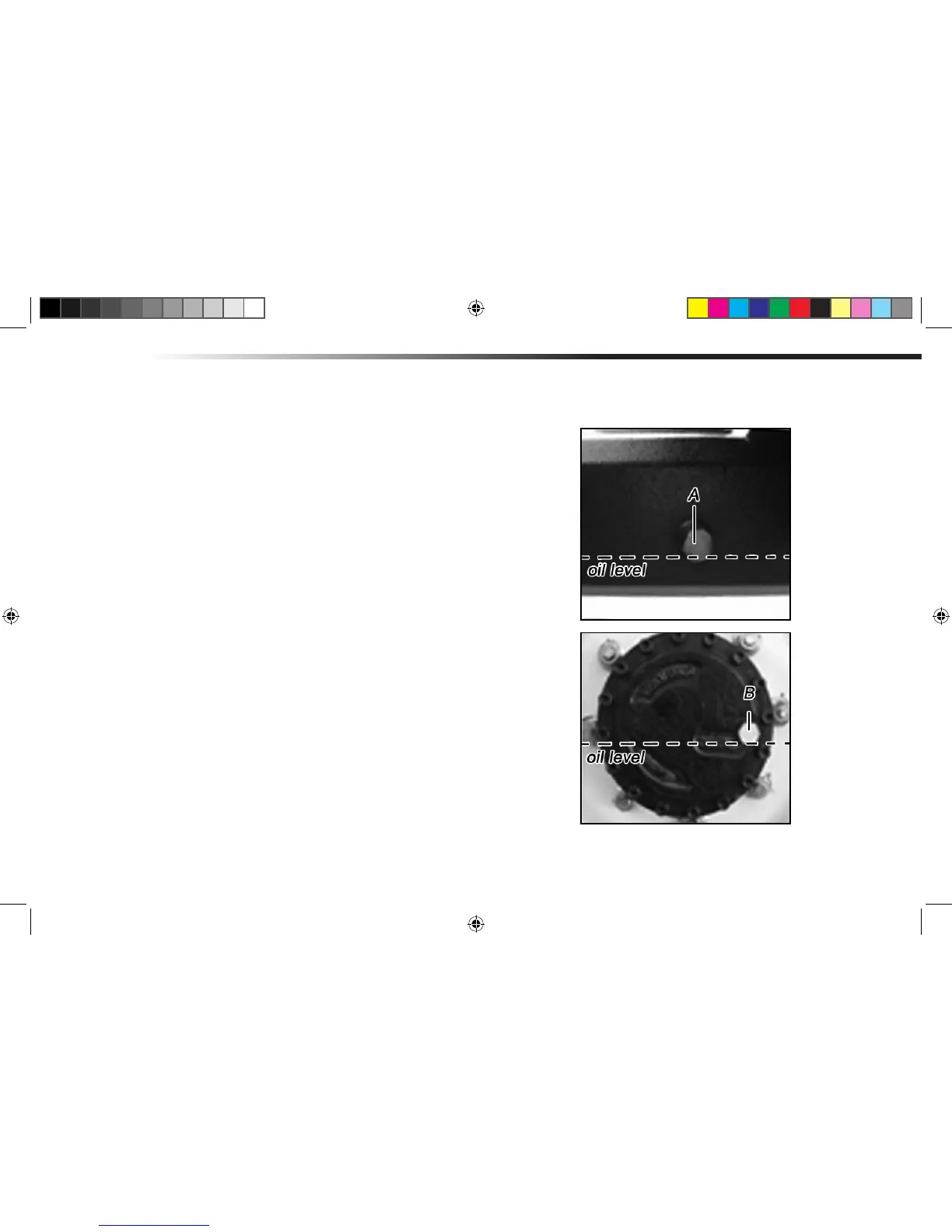

<Axle Case>
1. Tractor should be positioned on level ground to ensure
correct oil levels when checking.
2. Remove plug (A) and check oil level look into the hole.
<Gear Case>
1. Tractor should be positioned on level ground to ensure
correct oil levels when checking.
2. Rotate the wheels so oil level ll mark is parallel to the
ground.
3. Remove plug (B) and check oil level look into the hole.
