61
2WD : Rear wheel drive high range - this is for driving on
dry hard surfaces.
4WD AUTO : 4WD Auto range - This is automatically dis-
engaged when either brake pedal is pressed or if speed
exceeds 9.3mph (15km/h)
4WD : Four-wheel drive - This range provides full time
four-wheel dirve.

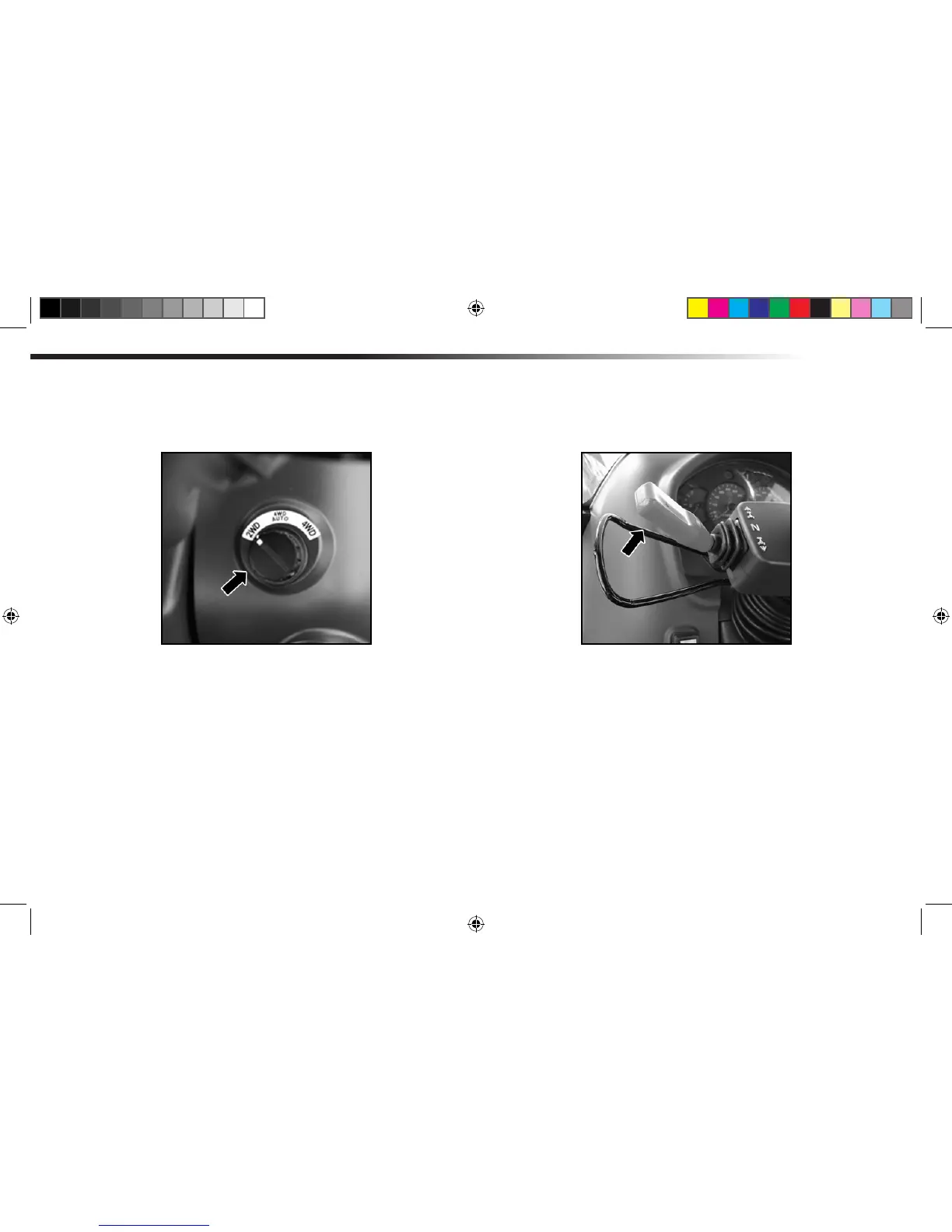

6. 4WD SHIFT SWITCH 7. F/R HYD SHUTTLE LEVER
It is used for shifting between “forward” and “reverse”
drive.
[Precaution]
For safety, when shifting from “forward” to “reverse” or
from “reverse” to “forward”, put the lever in the “neutral”
position and wait for the tractor to stop moving before
shifting the gear to the opposite direction.
To ensure safety, the lever must rst be pulled upward for
shifting to another position.
FUNCTIONS
8050 OPERATORS MANUAL (122011).indd 61 1/10/2012 9:36:38 PM
