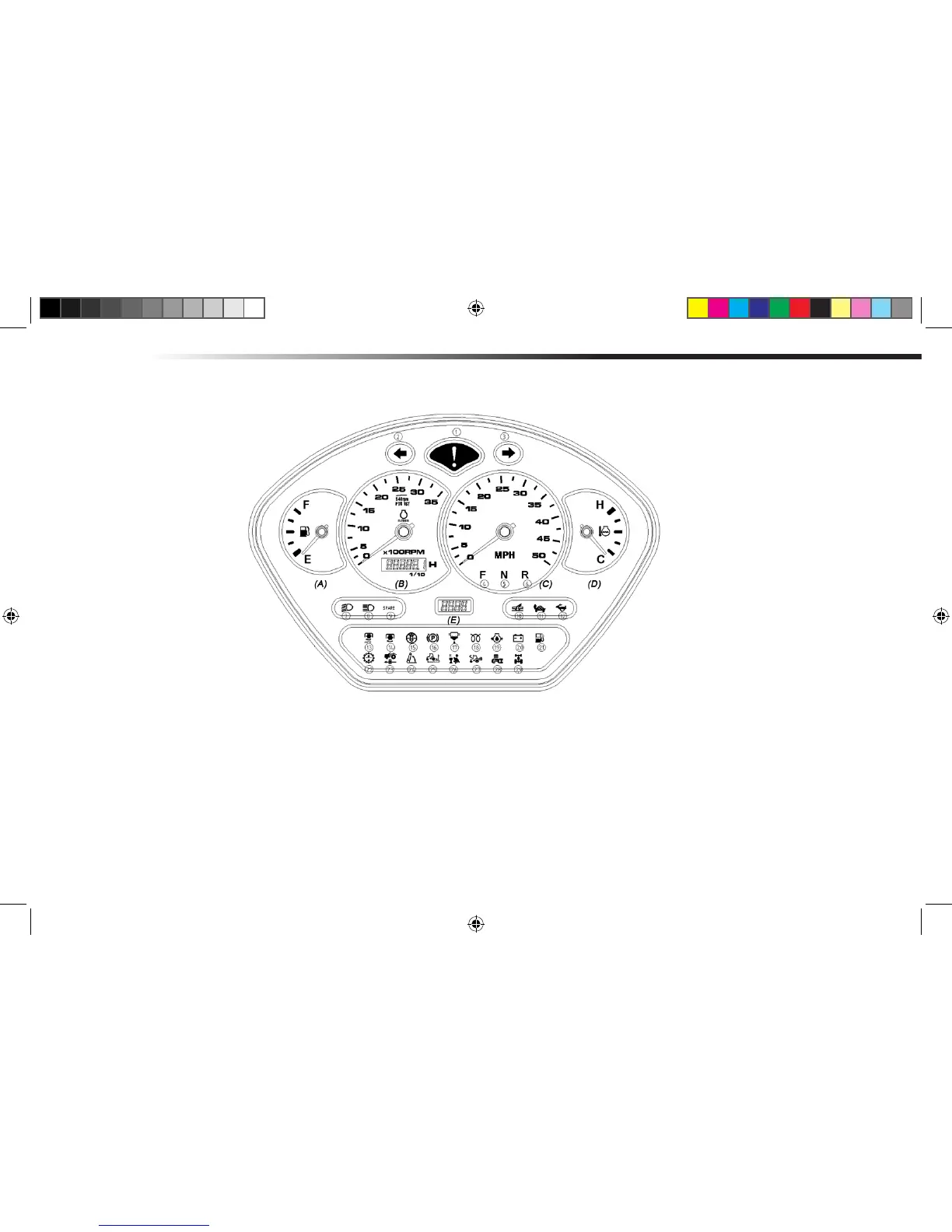

8. DASH METER
1: WARNING LAMP
2: DIRECTION LAMP (LH)
3: DIRECTION LAMP (RH)
4: FORWARD
5: NEUTRAL
6: REVERSE
7: HEAD LIGHT (LOWER-BEAM)
8: HEAD LIGHT (HIGH-BEAM)
9: N/A
10: N/A
11: N/A
12: N/A
13: AUTO PTO
14: PTO OPERATION
15: AIR FILTER SENSOR
16: PARKING BRAKE
17: WATER SEPARATOR
18: PRE-HEAT LAMP
19: OIL PRESSURE
20: BATTERY CHARGE
21: FUEL EMPTY
22: TRANSMISSION WARNING
23: N/A
24: 3P LIFT
25: TOWING POWER
26: N/A
27: N/A
28: N/A
29: MFWD
A: FUEL GAUGE
B: RPM GAUGE
C: SPEED METER
D: COOLANT TEMP GAUGE
E: ERROR CODE DISPLAY
