12. FRONT AXLE TURN RADIUS
1. Slowly turn the steering wheel to the left until the
steering cylinder travel has reached its limit, the steering
stops.

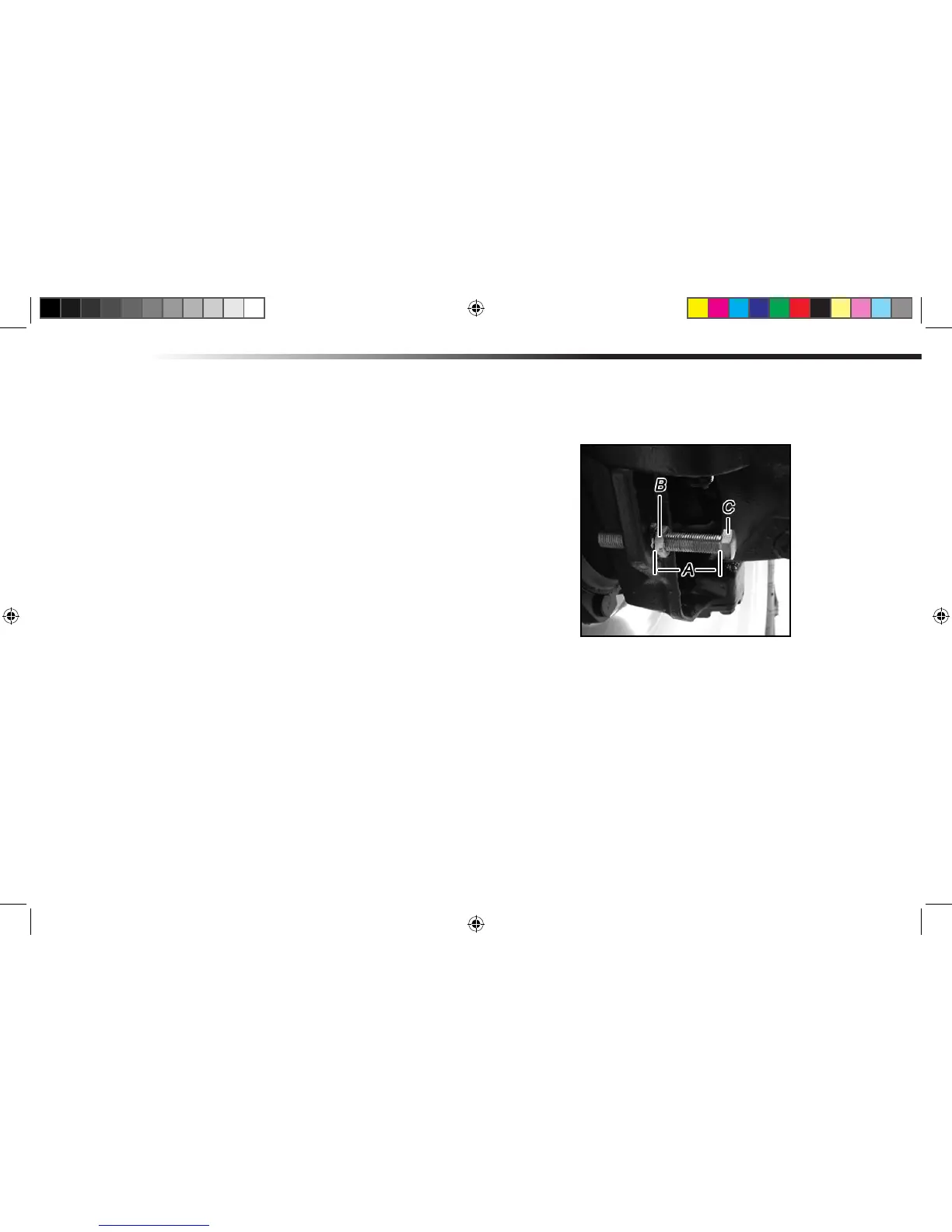

2. Measure between bottom of bolt head and case “A”. It
should be 2 in [50mm].
<How to Adjust>
1. Loosen the lock nut (B) and adjust stop bolt (C).
2. Tighten stop bolt retaining lock nut (A) to 92 lb-ft.
3. Repeat above step for the other side.
PERIODIC MAINTENANCE & ADJUSTMENT
