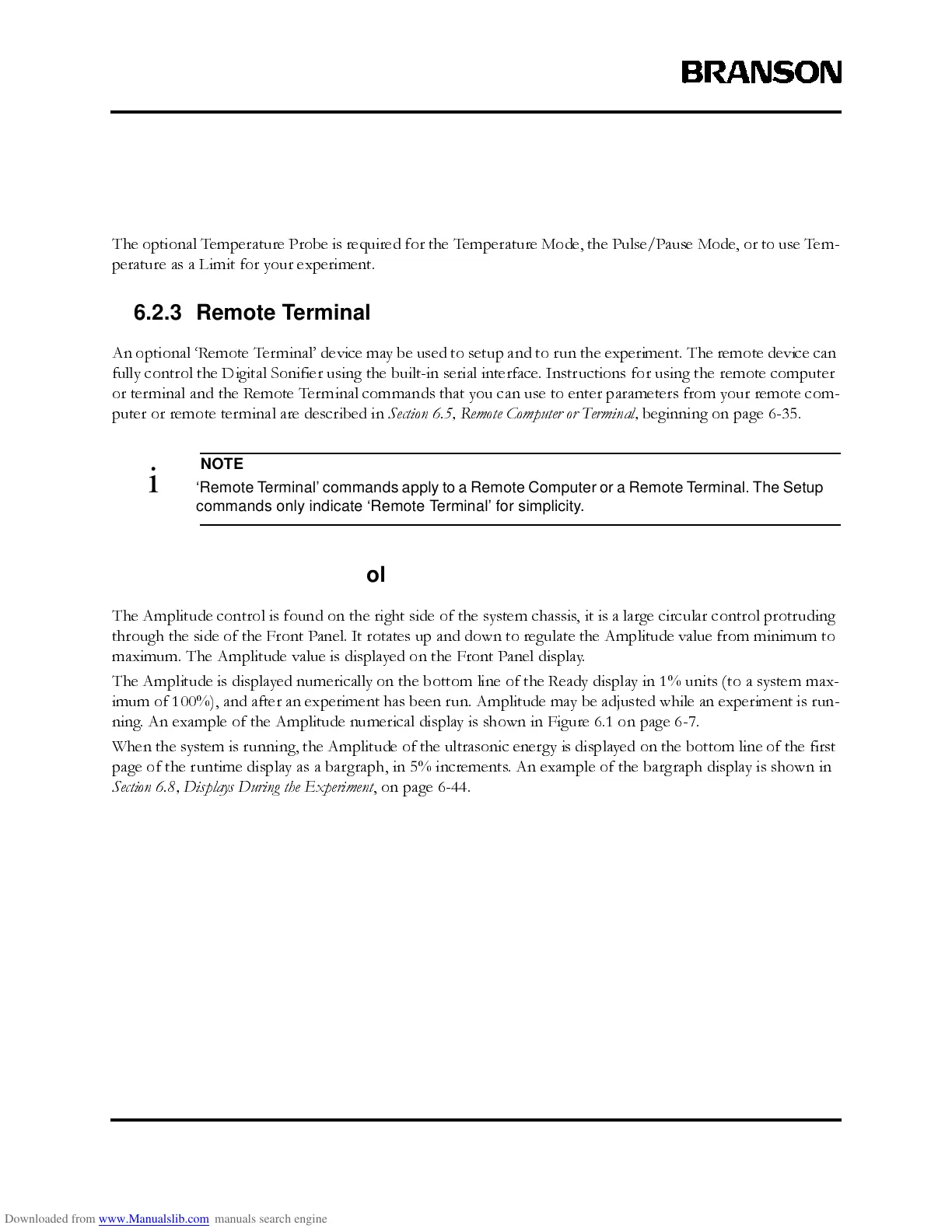

6-6 100-214-239 Rev. A
Operation
6.2.2 Temperature Probe
The optional T emperature Probe is required for the Temperature Mod e, the Pulse/ Pause Mode, or to use Tem-
perature as a Limit for your experiment.
6.2.3 Remote Terminal
An optional ‘Remote Terminal’ device may be used to setup and to run the experiment. The remote device can
fully control the Digital Sonifier using the built-in serial interf ace . Instructions for using the remote computer
or terminal and the Remote Terminal commands that you can use to enter parameters from your remote com-
puter or remote terminal are described in
Section 6.5, Remote Computer or Terminal,
beginning on page 6-35.
NOTE
i ‘Remote Terminal’ commands apply to a Remote Computer or a Remote Terminal. The Setup
commands only indicate ‘Remote Terminal’ for simplicity.
6.2.4 Amplitude Control
The Amplitude control is found on the right side of the system chassis, it is a large circular control protruding
through the side of the Front Panel. It rotates up and down to regulate the Amplitude value from minimum to
maximum. The Amplitude value is displayed on the Front Panel display.
The Amplitude is displayed numerically on the bottom line of the Ready display in 1% units (to a system max-
imum of 100%), and after an experiment has been run. Amplitude may be adjusted while an experiment is run-
ning. An example of the Amplitude numerical display is shown in Figure 6.1 on page 6-7.
When the system is running, the Amplitude of the ultrasonic energy is displayed on the bottom line of the first
page of the runtime display as a bargraph, in 5% increments. An example of the bargraph display is shown in
Section 6.8, Displays During the Experiment
, on page 6-44.
