SERIES 70 ELECTRIC ACTUATOR
Installation, Operation, and Maintenance Manual
39 of 48
© 2022 BRAY INTERNATIONAL, INC. ALL RIGHTS RESERVED. BRAY.COM
The Information contained herein shall not be copied, transferred, conveyed, or displayed in any manner
that would violate its proprietary nature without the express written permission of Bray International, Inc.
Spinner
A spinner is field or factory installable attachment to the actuator handwheel to
ease and speed the manual operation of the Series actuator Actuator Size E
E and E units mount the spinner on a lever which screws onto the back of
the handwheel Actuator Size E - units mount the spinner on the rim of the
handwheel
Spinner

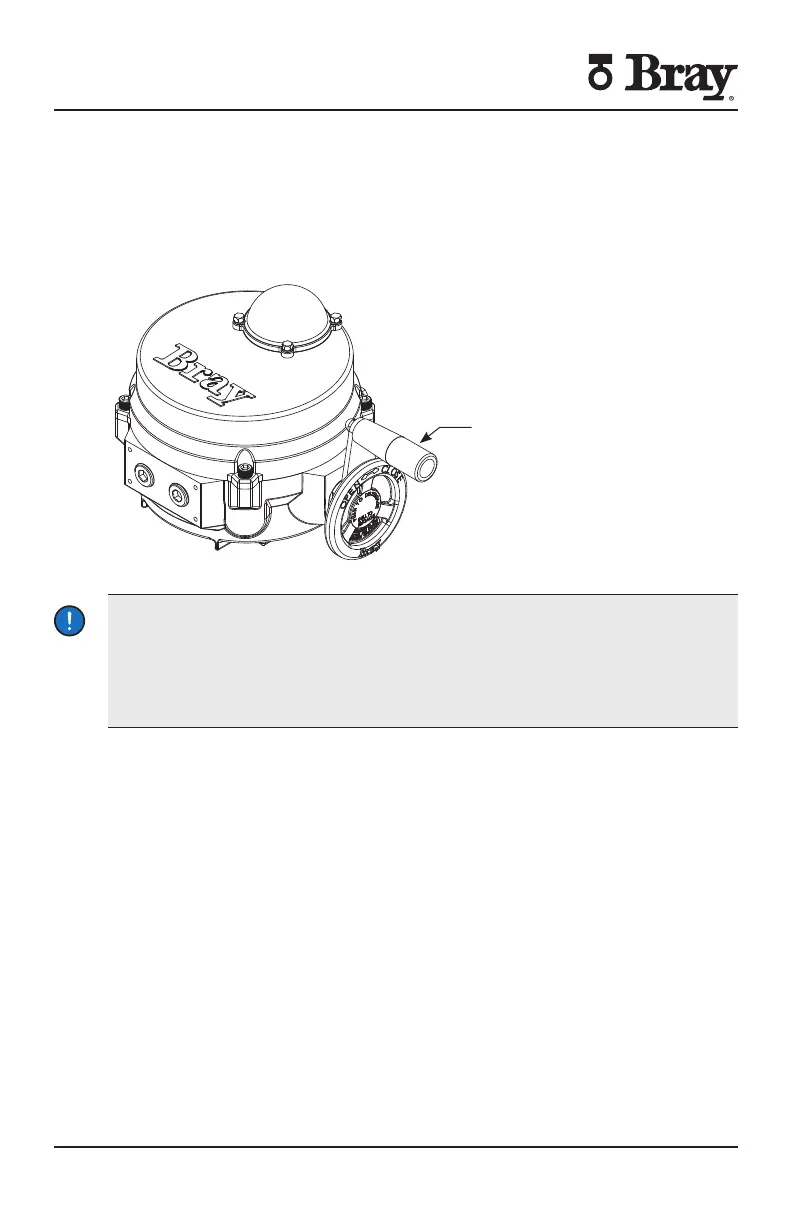

Figure S with Handwheel Spinner Attached
NOTICE
Care should be exercised in the use of a spinner equipped handwheel
Rapid operation of the handwheel to close the valve may cause water hammer
Rapid travel into a travel stop may cause damage
Spinner Kit Actuator Size E E E
Spinner and Lever Assembly
-UNF x Flat Head Socket Cap
Spinner Kit Actuator Size E -
Spinner Handle
-UNC x ¾ Socket Head Shoulder Bolt
Tools Required
Hex Key (Actuator Size E E E)
Hex Key (Actuator Sizes E - )
Installation Procedure
For Actuator Size E E E – Position the lever onto the back of the handwheel
then screw the flat head cap screw in to place from behind
