8 67XXU USB/Serial Scale Service Manual
2 Installation
1. Unpack the scale and all components from the shipping box.
2. Remove the shipping screw from the under side of the scale base. Refer to
Figure 2.1.

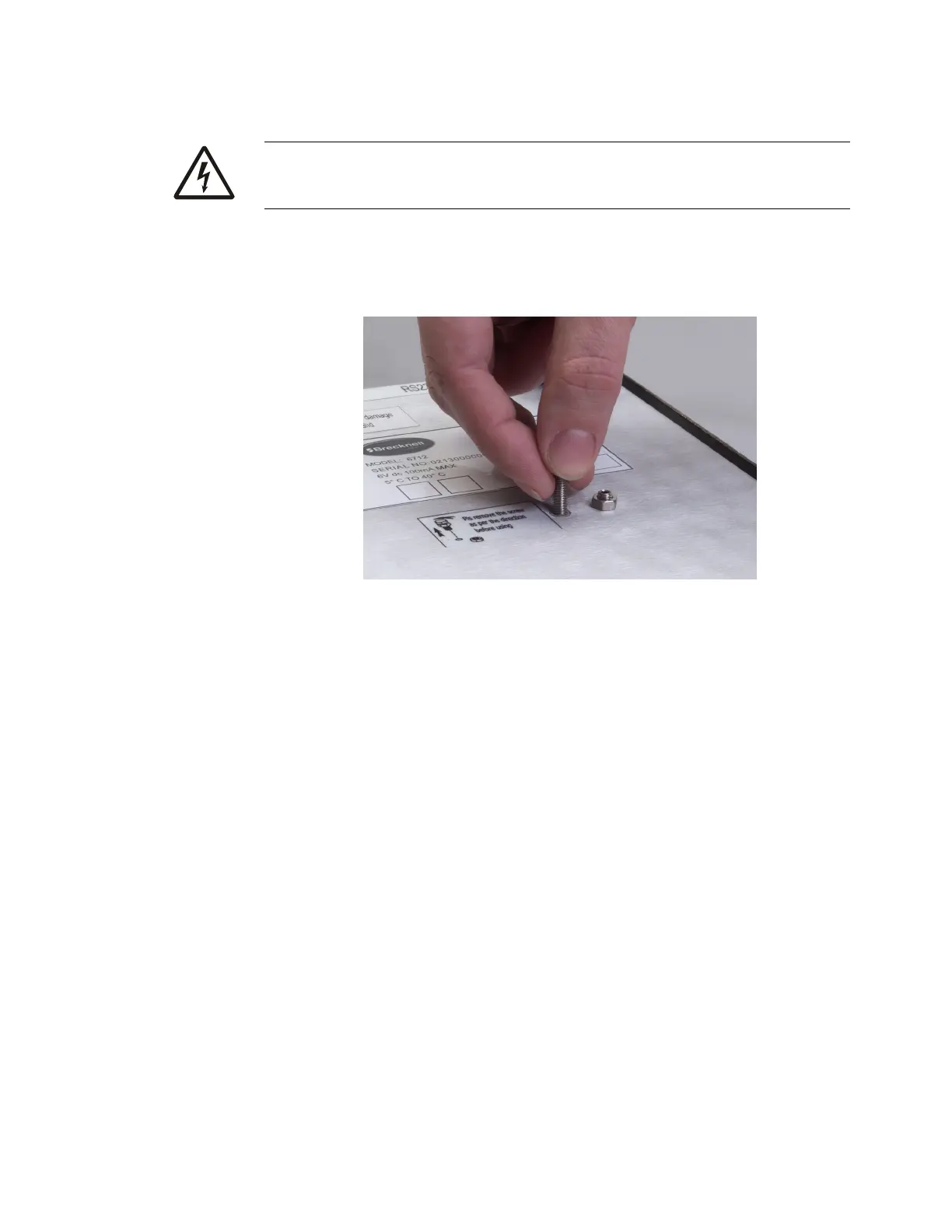

Figure 2.1 Shipping Screw Location
3. Connect all necessary cables to the proper connectors. Refer to this section
for connection details.
4. Level the scale base using the four leveling feet. View the level bubble located
under the platform top.
DANGER: RISK OF ELECTRICAL SHOCK. BE SURE TO UPLUG THE
INDICATOR BEFORE REMOVING THE COVER OR OPENING THE UNIT.
REFER TO QUALIFIED SERVICE PERSONNEL FOR SERVICE.
