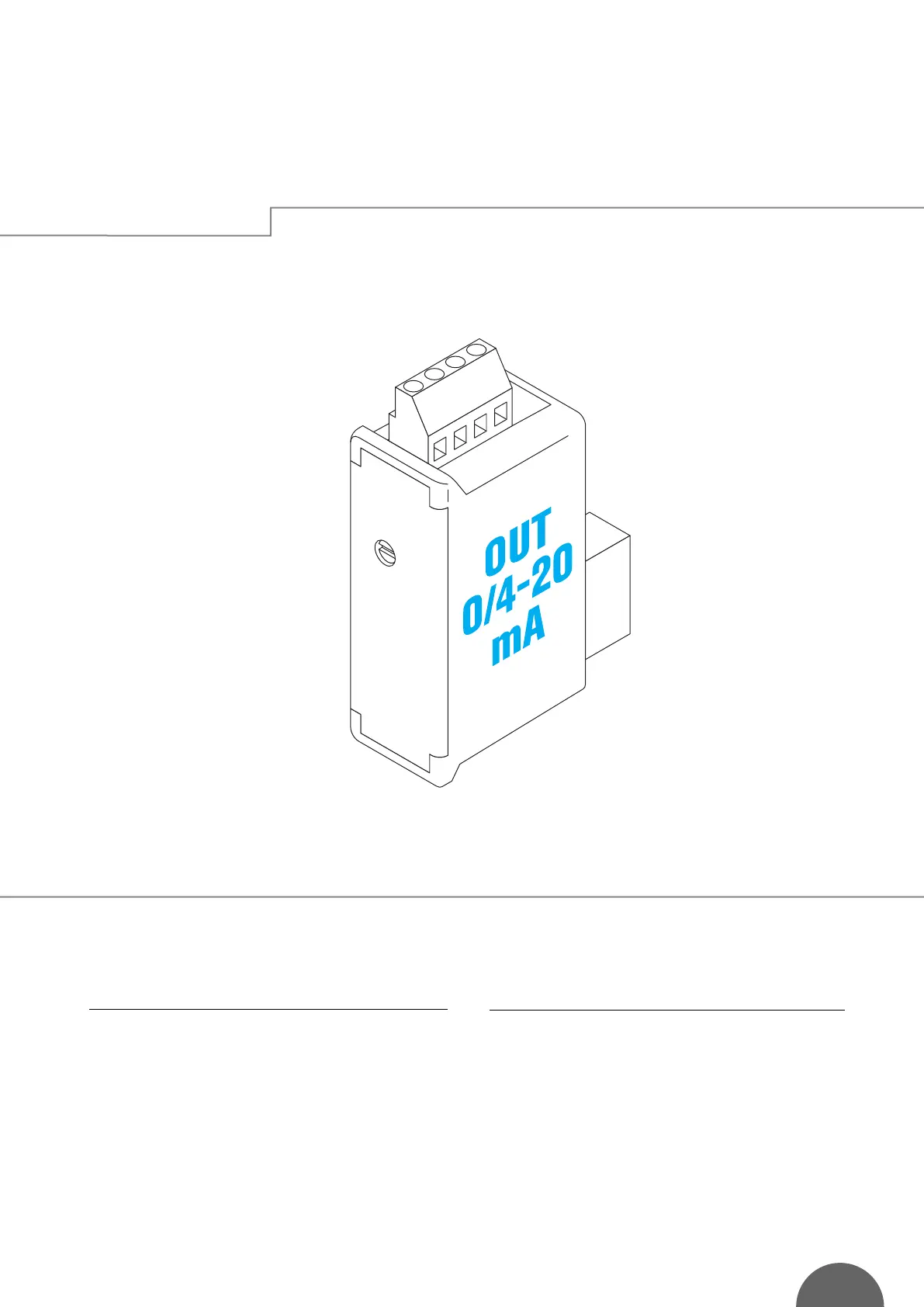

R-DPA96 A/AN - R-Module 4
2 Outputs 0/4 - 20 mA
PRELIMINARY OPERATIONS
When the package containing the optional module
is received, the following points must be checked:
• the packing is in good condition,
• the product has not been damaged during transit,
• the product reference number conforms to your
order,
• the package contains the product,
• the operating instructions.
This optional module must be connected to the R-
DPA96 A/AN (ref. 4825 0A40, 4825 0A41, 4825
1A40, 4825 1A41). It provides 2 entirely congu-
rable 0/4-20 mA analog outputs (threshold at 0 or
4 mA and threshold at 20 mA) on I1, I2, I3, In, U12,
U23, U31,V1, V2, V3, ΣP, ΣQ, ΣS, ΣPF
L/C
and F The
power supply output can also be used using the
30 V function.
Up to a maximum of 2 modules, that is 4 analog
outputs installed on one R-DPA96 A/AN .
