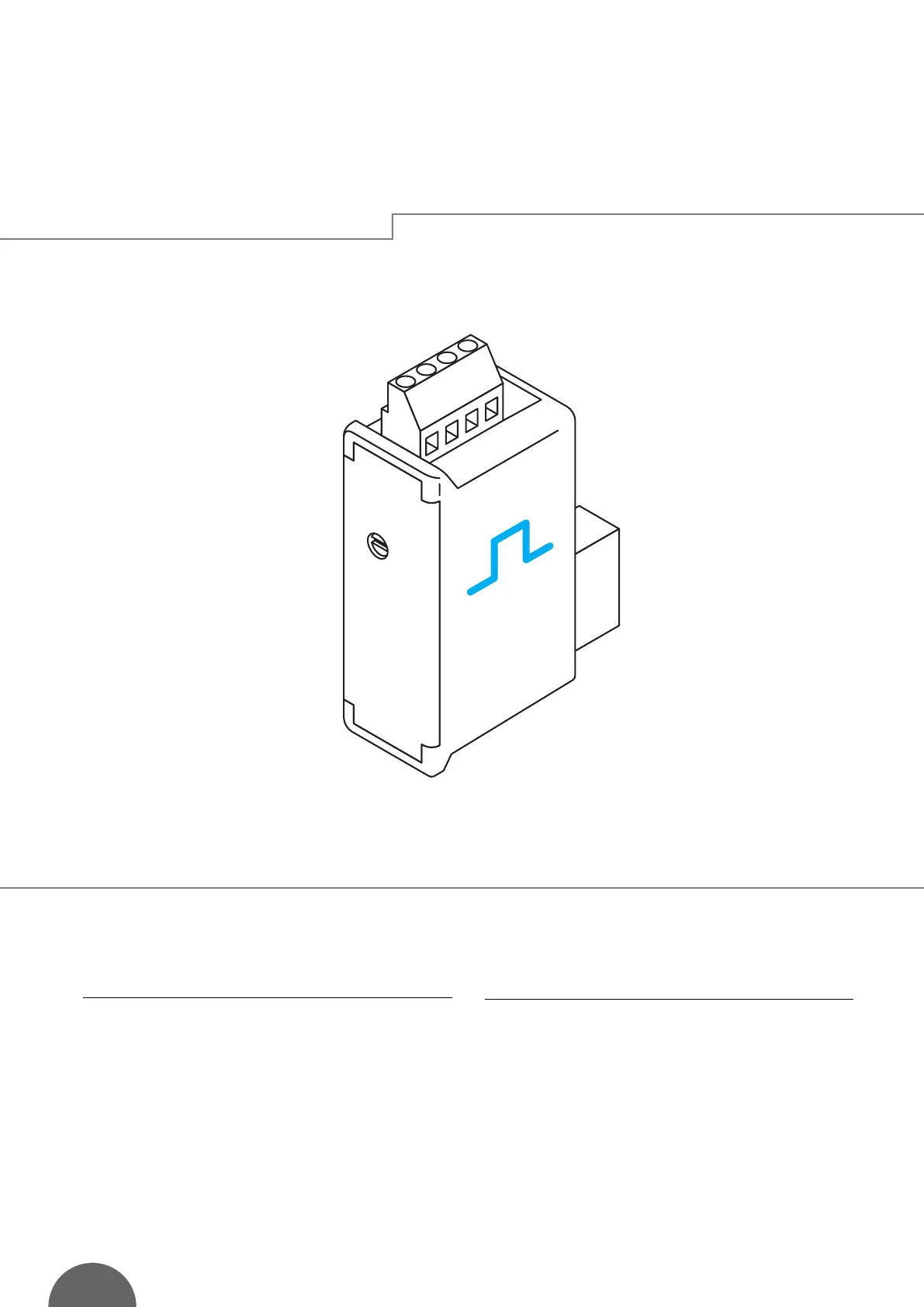

RUDOLF - Ref. :876 584 A
PRELIMINARY OPERATIONS
PRESENTATION
When the package containing the optional module
is received, the following points must be checked:
the packing is in good condition,
the product has not been damaged during transit,
the product reference number conforms to your
order,
the package contains the product,
the operating instructions.
This optional module must be connected to the
R-
DPA96 A/AN
(ref. 4825 0A40, 4825 0A41, 4825 1A40,
4825 1A41). This module allows the combining with
the metering of active (0 to 99 999 999 kWh), reacti-
ve (0 to 99 999999 kvarh) and apparent energy (0 to
99 999 999 kVAh) of two pulse outputs that can be
congured according to value (0.1, 1, 10, 100 kWh,
kvarh or kVAh and 1 or 10 MWh, Mvarh and MVAh)
and duration (100 ms to 900 ms).
R-DPA96 A/AN - R-Module 1
2 Outputs kWh - kvarh - KVAh
