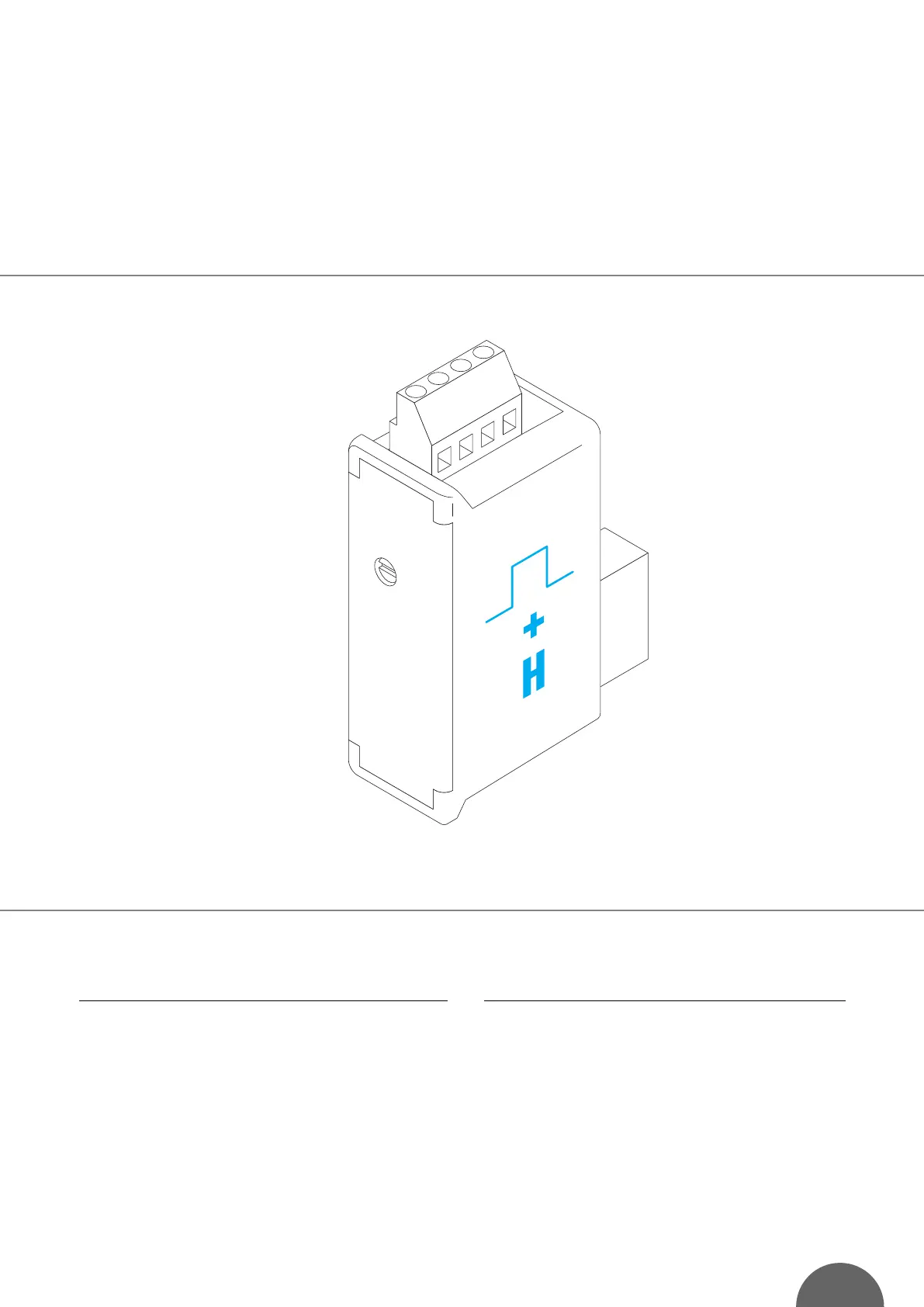

R-DPA96 A/AN - R-Module 2
2 Outputs kWh - kvarh - KVAh, Harmonics
Check the following points as soon as you receive
the module option package:
• the packing is in good condition,
• the product has not been damaged during transit,
• the product reference number conforms to your
order,
• the package contains the product,
• the operating instructions.
PRELIMINARY OPERATIONS
This optional module must be connected to the
DPA96 A/AN
(ref. 4825 0A40, 4825 0A41, 4825
1A40, 4825 1A41). This module allows the combi-
ning with the metering of active +/- (0 to 99 999
999 kWh), reactive +/- (0 to 99 999 999 kvarh) and
apparent energy (0 to 99 999999 kVAh) of two pul-
se outputs that can be congured according to
value (0.1, 1, 10, 100 kWh, kvarh or kVAh and 1 or
10 MWh, Mvarh and MVAh) and duration (100 ms
to 900 ms).
Display of the harmonic percentage per row for 3I,
In, 3U, 3V up to row 25 (row 15 for DPA96 and
DPA96A , software version 1.03) as well as thd 3I,
thd In, thd 3U and thd 3V up to row 51.
PRESENTATION
45
