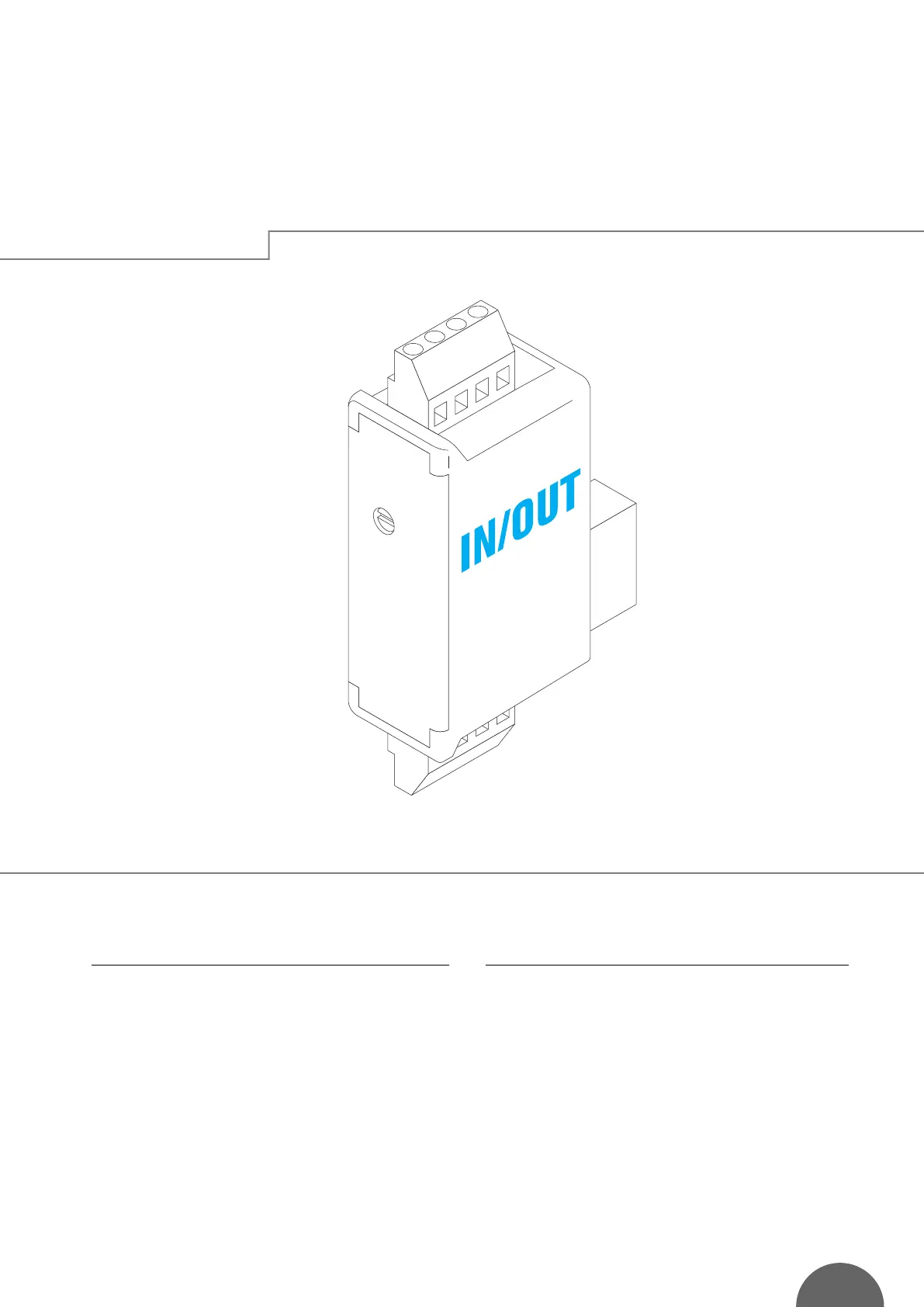

R-DPA96 A/AN - R-Module 5
2 Inputs/2 Outputs
PRELIMINARY OPERATIONS
PRESENTATION
Check the following points as soon as you receive
the optional module package:
• the packing is in good condition,
• the product has not been damaged during transit,
• the product reference number conforms to your
order,
• the package contains the product,
• the operating instructions.
This optional module must be connected to the
R-
DPA96A/AN - Main Module
(ref. 4825 0A40, 4825 0A41,
4825 1A40, 4825 1A41). For the monitoring function,
programming of an upper and lower threshold, of the
hysteresis, of the time delay and of the run mode for
3I, 3U, 3V, In, ΣP, ΣQ, ΣS, F and ΣFP
L/C
, thd 3I, thd 3U,
thd 3V, thd In, HOUr.
Possibility of installing up to 3 modules, that is
6 inputs / 6 outputs.
This module provides instant storage of min/max val-
ues for the 3U, 3F, In, ±ΣP, ±ΣQ, ΣPF, F, thd 3U, thd
3I and thd In via the RS 485.
Comment : For the DPA96 and DPA96 A (version 1.03),
only 2 of the 6 outputs can be set for monitoring. For
the 6 inputs, only 2 are visible on the display.
141
