BRIDEX Rudolf R-DPA96 A User Manual

6
RUDOLF - Ref. : 876 583 A
R-DPA96 A/AN

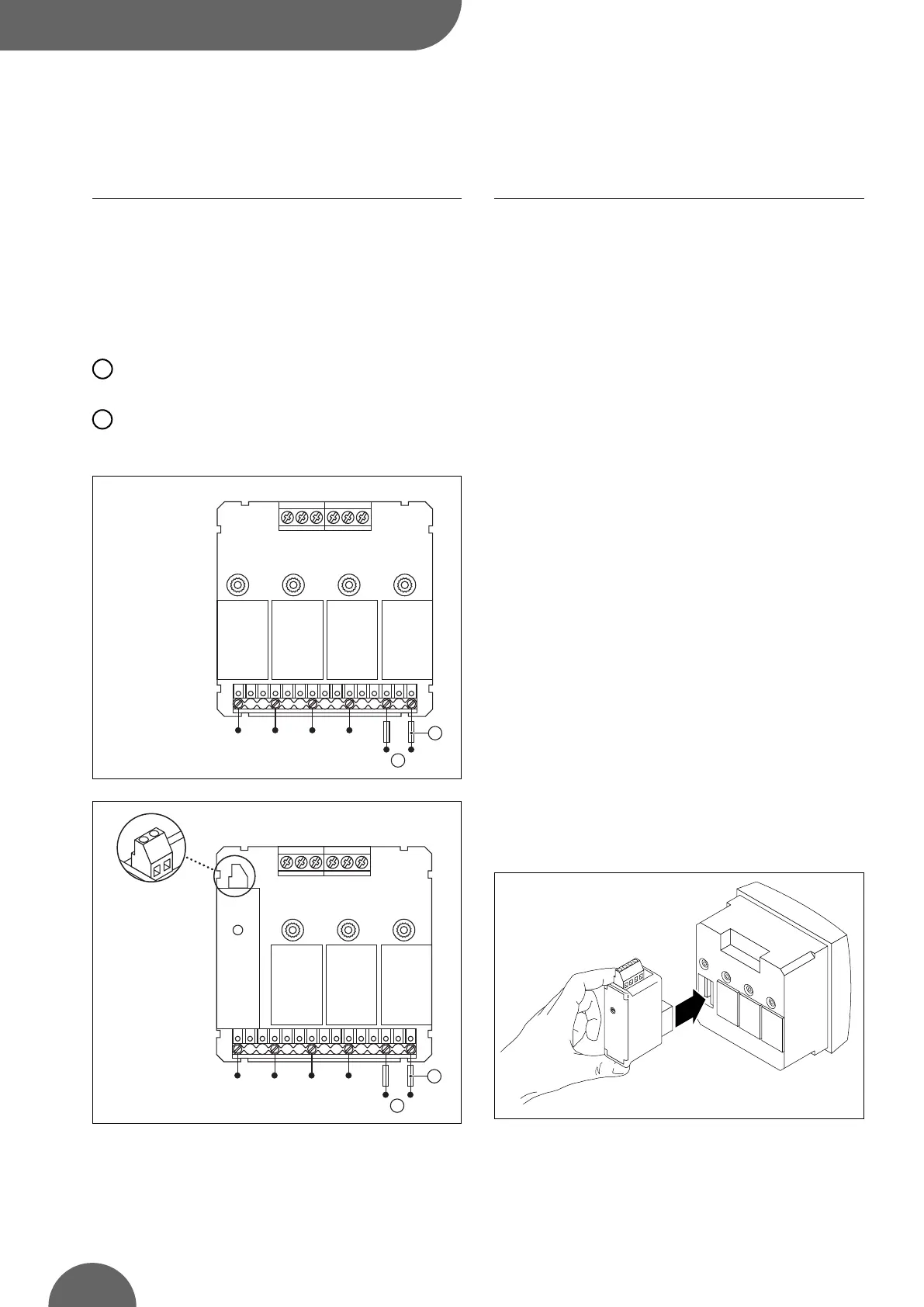

INSTALLATION
The maximum coupling torque for each screw is 0.4
Nm.
Each CT’s secondary winding must be short-circuited
when disconnecting the R-DPA96 A/AN is can be
done automatically using one of Socomec’s cata-
logue products: the PTI. Please contact us for further
information.
S2 S1 S2 S1 S2S1
I2 I3I1
V1 V2 V3 VN
1
2
S2 S1 S2 S1 S2S1
I2 I3I1
In
V1 V2 V3 VN
1
S1 S2
2
R-DPA96 A/AN 286 CR-DPA96 A/AN 453 B
CONNECTION
R-DPA96 A
R-DPA96 AN
Aux.: 110 … 400 V AC
120 … 350 V DC
12 … 48 V DC
Fus.: 0.5 A gG / BS 88 2A gG / 0.5 A class CC
OPTIONAL MODULES
The R-DPA96 A/AN can be tted with optional
modules:
- JBUS/MODBUS communication;
ref: R-MODULE 3:
RS485 JBUS/MODBUS serial port in RTU mode with
a speed from 2400 to 38400 baud. (User manual ref:
CDR 27 028)
- PROFIBUS-DP Communication;
ref: R-MODULE 3+6:
RS485 PROFIBUS-DP serial port with a speed from
9,600 baud to 1.5 Mbaud. (User manual ref: CDR 18
021)
- Pulse outputs; ref: R-MODULE 1:
2 pulse outputs connected to the metering of energy
in kWh, kvarh and KVAh (User manual ref: 876 584)
- Harmonic and pulse outputs; ref: R-MODULE 2:
2 pulse outputs connected to the metering of energy
in kWh, kvarh and KVAh. Analysis of the harmonic
spectrum in current and voltage in rows and in
phases up to row 25 (User manual ref: 876 585
- Analogue outputs; ref: R-MODULE 4:
2 analogue outputs 4/20 mA or 0/20 mA congurable
for current, voltage, power and power factor. 2
modules can be installed, a maximum of 4 outputs
(User manual ref: 876 586)
- Inputs/Outputs; ref: R-MODULE 5:
2 outputs allocated for alarms, for voltage, current,
power, power factor and THD, or remote control.
2 inputs for the metering of pulses or controlling posi-
tion (User manual ref: 876 587).
- Storage capability; ref: R-MODULE 7:
Storage capability for storing mean active and reacti-
ve power, minimum and maximum instantaneous
values, the last 10 alarms, troughs/overvoltages and
power cuts according to EN50160 (User manual ref:
876 588).
R-DPA96 A/AN 343 A
1
2
