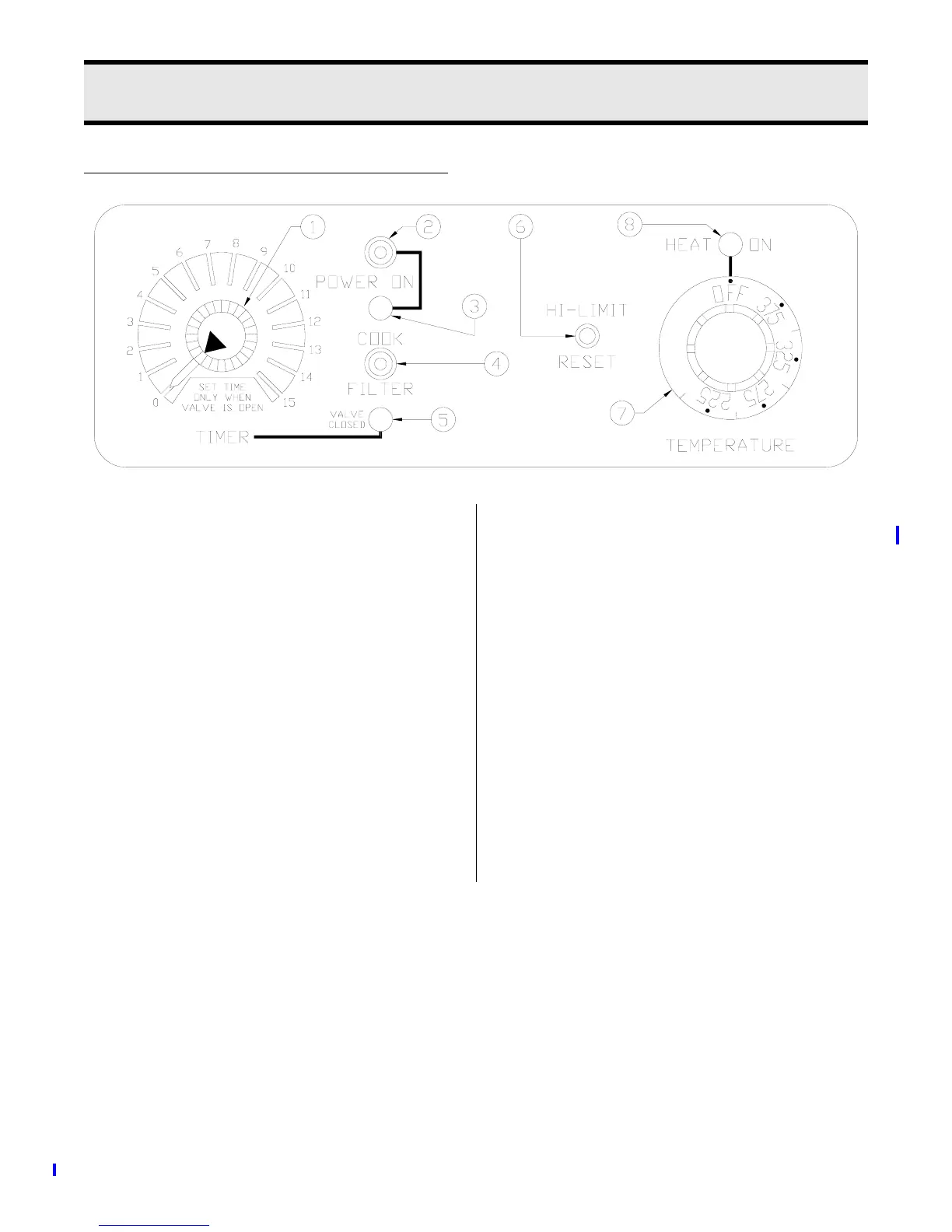

6 - 1600 MECHANICAL CONTROL PANEL
FAMILIARIZATION
6. Hi-Limit Control: Prevents oil tempera-
ture from exceeding 475° F. Turn unit
OFF and DO NOT attempt to operate
unit until it has been serviced by an
authorized Broaster Company repre-
sentative.
Note: It is possible for this control to trip
during shipment. If it does, fully depress red
reset button. If control “clicks” it was
tripped. If not, it is correctly reset.
7. Temperature Control: Regulates oil
temperature.
8. Heat On Indicator Light: Illuminates
when oil is being heated.
1. Timer: Shows desired cooking time
and time countdown during a cook
cycle.
2. Power Switch: Upper position allows
use of the functions shown by cook/fil-
ter switch. Lower position is off.
3. Power On Indicator Light: Illuminates
when power switch is in upper position.
4. Cook/Filter Switch: Has two posi-
tions: COOK and FILTER.
5. Valve Closed Indicator Light: Illumi-
nates when pressure regulating valve
is CLOSED.
6 - 1
Manual #13897 10/97 Rrev 9/05
