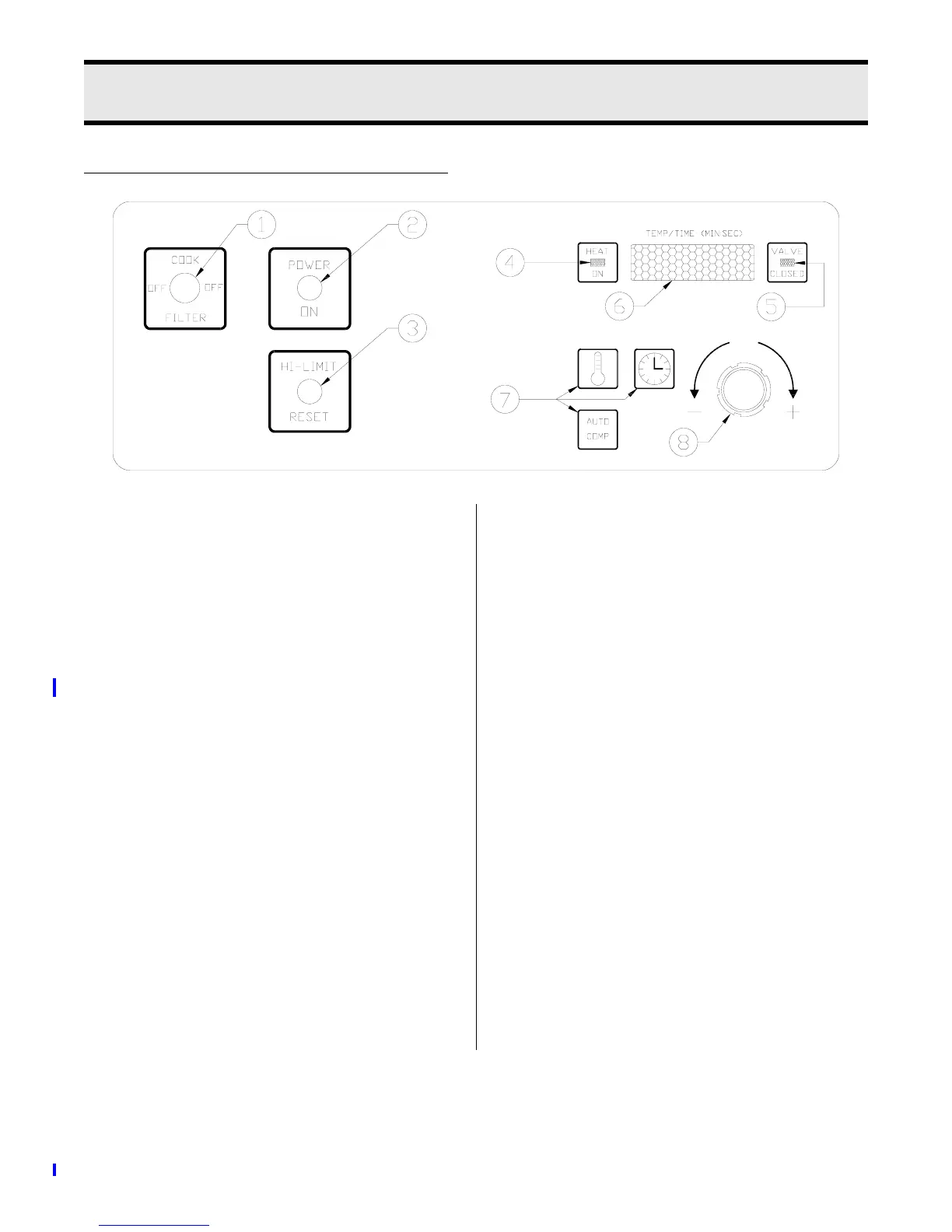

7 - ROTARY DIAL SOLID STATE CONTROL PANEL
FAMILIARIZATION
6. Display: Shows time countdown dur-
ing a cook cycle, program values dur-
ing programming and programmed
time and temperature during idle
period.
7. Program Buttons: Displays program
values, initiates programming, stores
desired program values and exits pro-
gramming mode.
Cook Temperature Button
Cook Time button
AUTO COMP (Automatic Time Com-
pensation) Button: Indicates timing
method. When OFF, controller oper-
ates as a regular timer. When ON,
controller monitors oil temperature and
adjusts time to compensate for fluctua-
tions in the oil temperature.
8. Rotary Knob: Changes program val-
ues.
1. Cook/Filter Switch: Has three posi-
tions: COOK, OFF and FILTER.
2. Power On indicator Light: Illuminates
when cook/filter switch is in COOK
position.
3. Hi-Limit Control: Prevents oil tempera-
ture from exceeding 475° F. Turn unit
OFF and DO NOT attempt to operate
until it has been serviced by an autho-
rized Broaster Company representa-
tive.
Note: It is possible for this control to trip
during shipment. If it does, fully depress red
reset button. If control “clicks” it was
tripped. If not, it is correctly reset.
4. heat On indicator Light: Illuminates
when oil is being heated.
5. Valve Closed Indicator Light: Illumi-
nates when pressure regulating valve
is CLOSED.
7 - 1
Manual #13897 10/97 Rev 9/05
