Port status LEDs TABLE 12
LED Condition Status
Off A link is not established with a remote port.

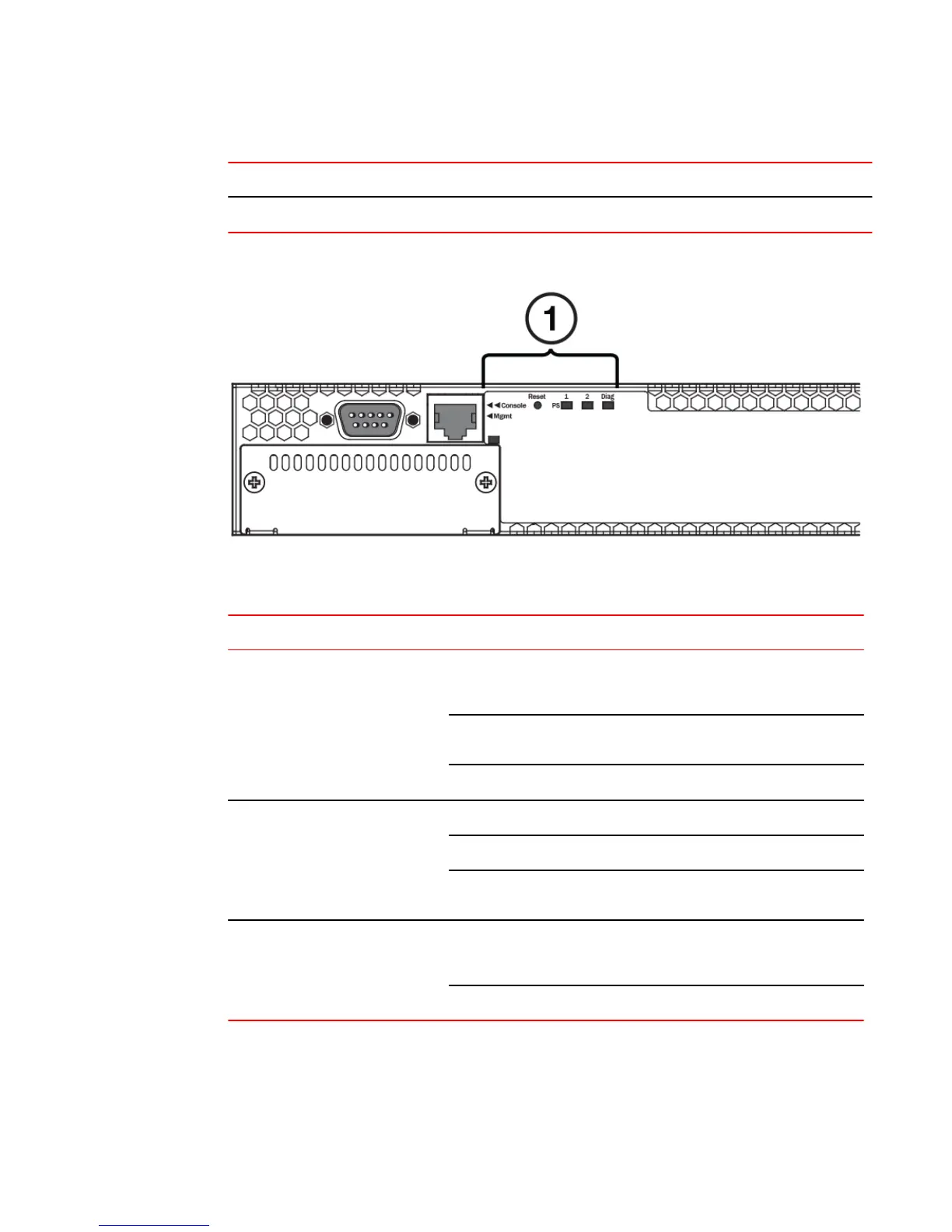

FIGURE 22 System status LEDs
1. System status LEDs
System status LEDs TABLE 13
LED Condition Status
PS1
PS2
(Power Supply Status)
Green Power supply is operating normally. It is installed
properly and the power cord is attached to a power
source.
Amber Power supply fault. The power supply may not be
installed properly.
Off Power off or failure.
Diag
(Diagnostic)
Flashing Green System self-diagnostic test in progress.
Green System self-diagnostic test successfully completed.
Amber System self-diagnostic test has detected a fault.
(Blower, thermal or any interface fault.)
Out-of-band ManagementLink or
Activity
On/Flashing Green The port has established a valid link at 10/100/1000
Mbps. Flashing indicates the port is transmitting and
receiving user packets.
Off A link is not established with a remote port.
FIGURE 23 Power status LEDs
Product Overview
30 Brocade FCX Series Hardware Installation Guide
53-1002977-01
