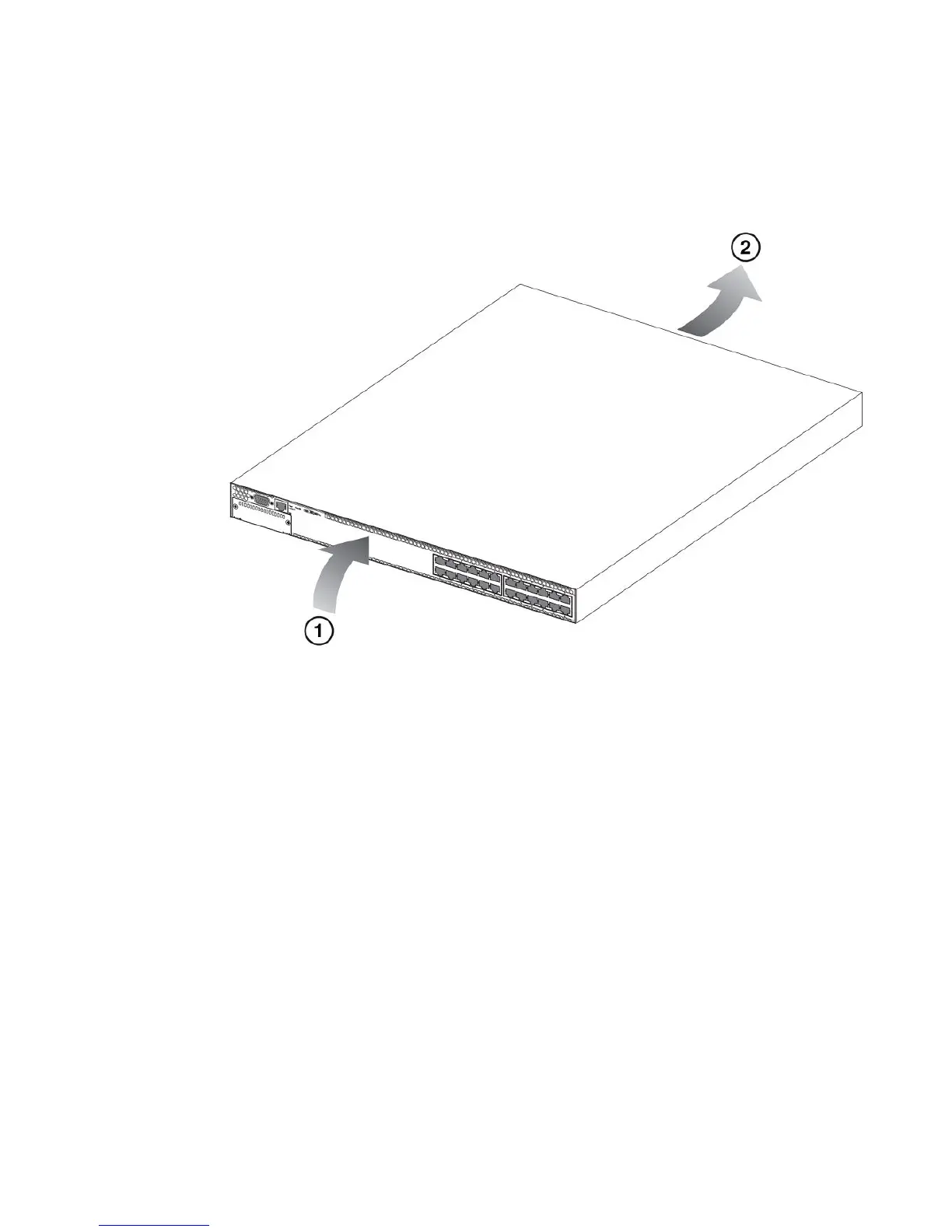

1. Air inflow
2. Air outlet
FIGURE 50 Brocade FCX 624-E and Brocade FCX 648-E device airflow
Hardware Specifications
88 Brocade FCX Series Hardware Installation Guide
53-1002977-01
