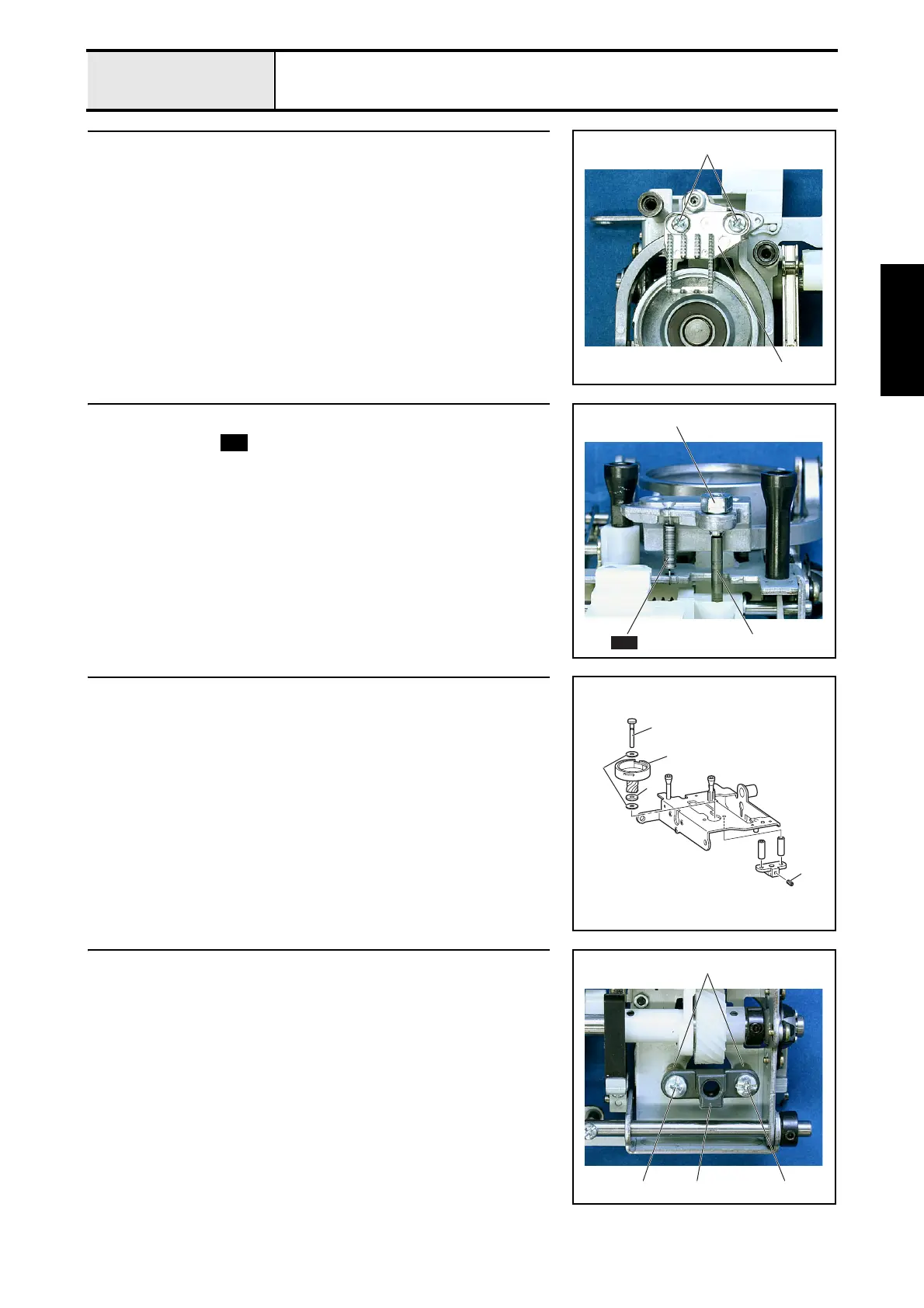

Brother BC800 - Outer Rotary Hook Removal; Feed Dog Removal

2 - 21
Feed unit
Main unit
Disassembly
4 Feed dog removal
1. Remove the 2 screws 1, and then remove the feed dog 1.
1
1
5 Vertical adjuster screw assembly removal
1. Remove spring .
2. Remove the M5 nut 1
3. Remove the vertical adjuster screw assembly 2.
1
2
S04
S10
6 Outer rotary hook removal
1. Remove the screw 1, and then remove the outer rotary hook shaft 1,
washer 6 2, outer rotary hook assembly 3, spacer 4, and washer 6 2 .
1
4
1
3
2
7 Shaft supporter removal
1. Remove the 2 screws 1, and then remove the shaft supporter 1 and the
collar 2.
11
2
1
