Brother BC800 - Feed Arm a Assembly Removal; Feed Arm B ASSY Disassembly

2 - 23
Feed unit
Main unit
Disassembly

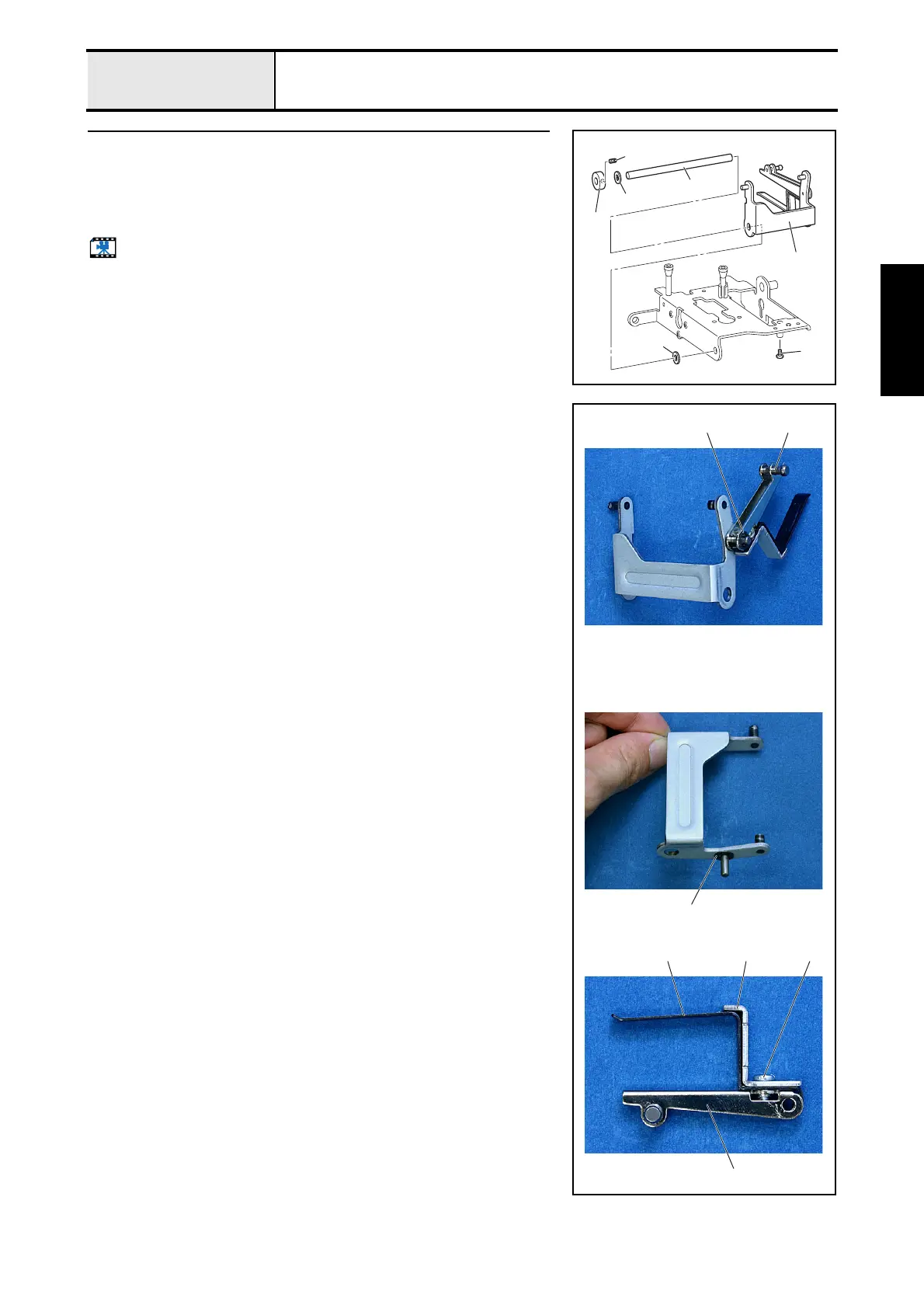

10 Feed arm A assembly removal
1. Remove the screw 1, and then remove the set collar 1 and the thrust
wafer 2 in this order.
2. Remove the screw 2, and then remove the horizontal feed shaft 3.
3. Remove the feed arm A assembly 4 and the thrust wafer 2.
Start movie clip (CD-ROM version only)
2
4
1
2
2
1
3
10-1 Feed arm B ASSY disassembly
1. emove the retaining ring (CSTW-3.5), and then remove the feed arm B
assembly 1 and the polyester slider 2.
2. Remove the screw 1, and then remove the feed supporting plate 4 and
feed supporting plate B 5 from the feed arm B 3.
1
Retaining ring CSTW-3.5
2
15
3
4
