Needle-presser unit
Main unit
Disassembly

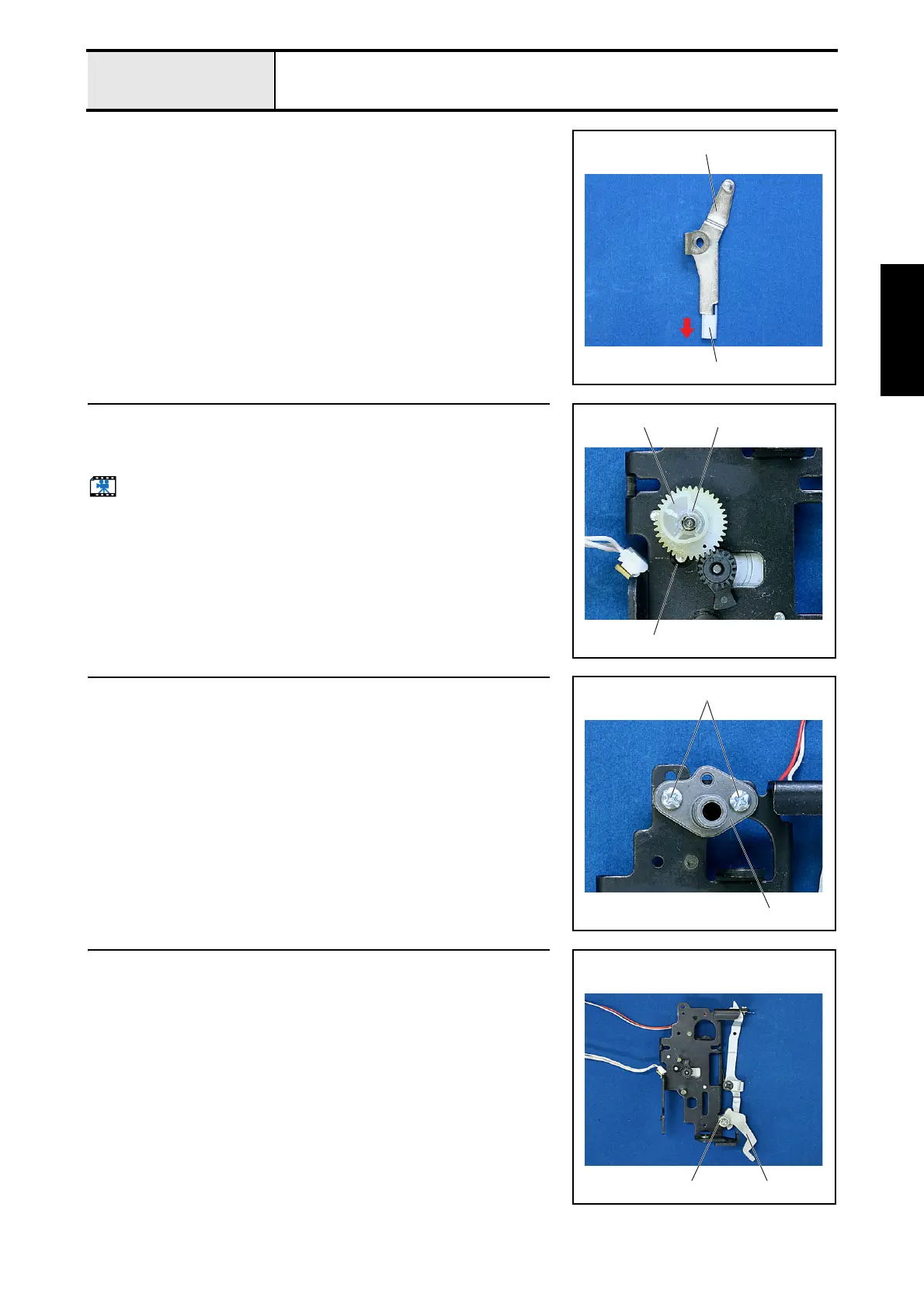

9-1 Z zigzag lever disassembly
1. Pull out the Z zigzag cap 2 from the Z zigzag lever 1.
1
2
10 Z zigzag camp removal
1. Remove the retaining ring (E3), and then remove the Z zigzag cam 1.
2. Remove the rubber 2.
Start movie clip (CD-ROM version only)
1
2
Retaining ring E3
11 Shaft bushing removal
1. Remove the 2 screws 1, and then remove the shaft bushing 1.
1
1
12 Presser foot lifter removal
1. Remove the retaining ring (E4), and then remove the presser foot lifter 1.
1
Retaining ring E4
