Brother BC800 - Spool Pin Attachment

3 - 4
Main unit
Main parts
4 Spool pin attachment

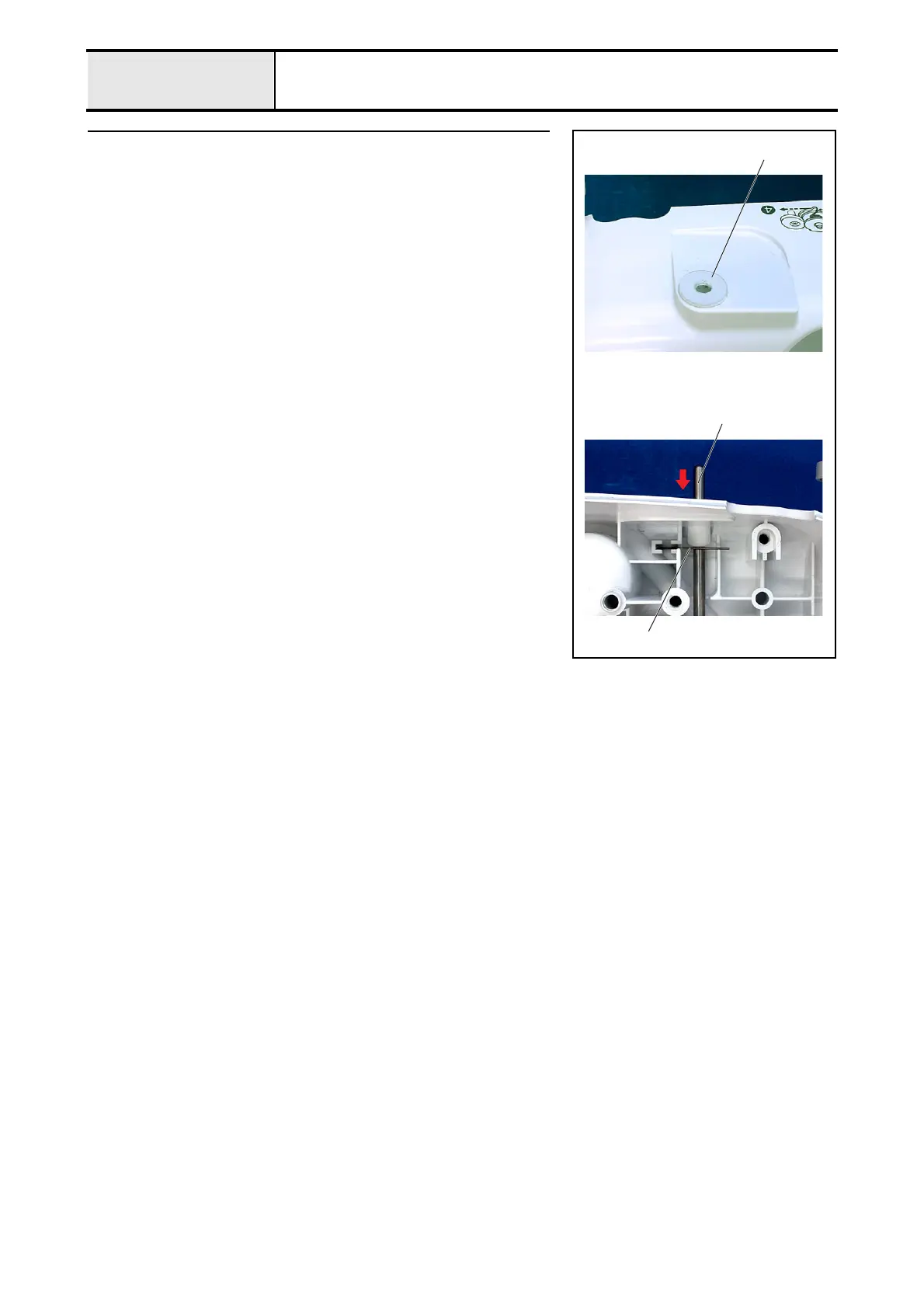

1. Attach the spool pin stand 1 so that it does not protrude from the
attachment section.
2. Insert the spool pin 2 into the arm bed cover. Insert the pin from the
grooved end.
3. Attach the spool pin spring 3 to the arm bed cover.
*Key point
• Check that the spool pin 2 moves lightly.
1
2
3
