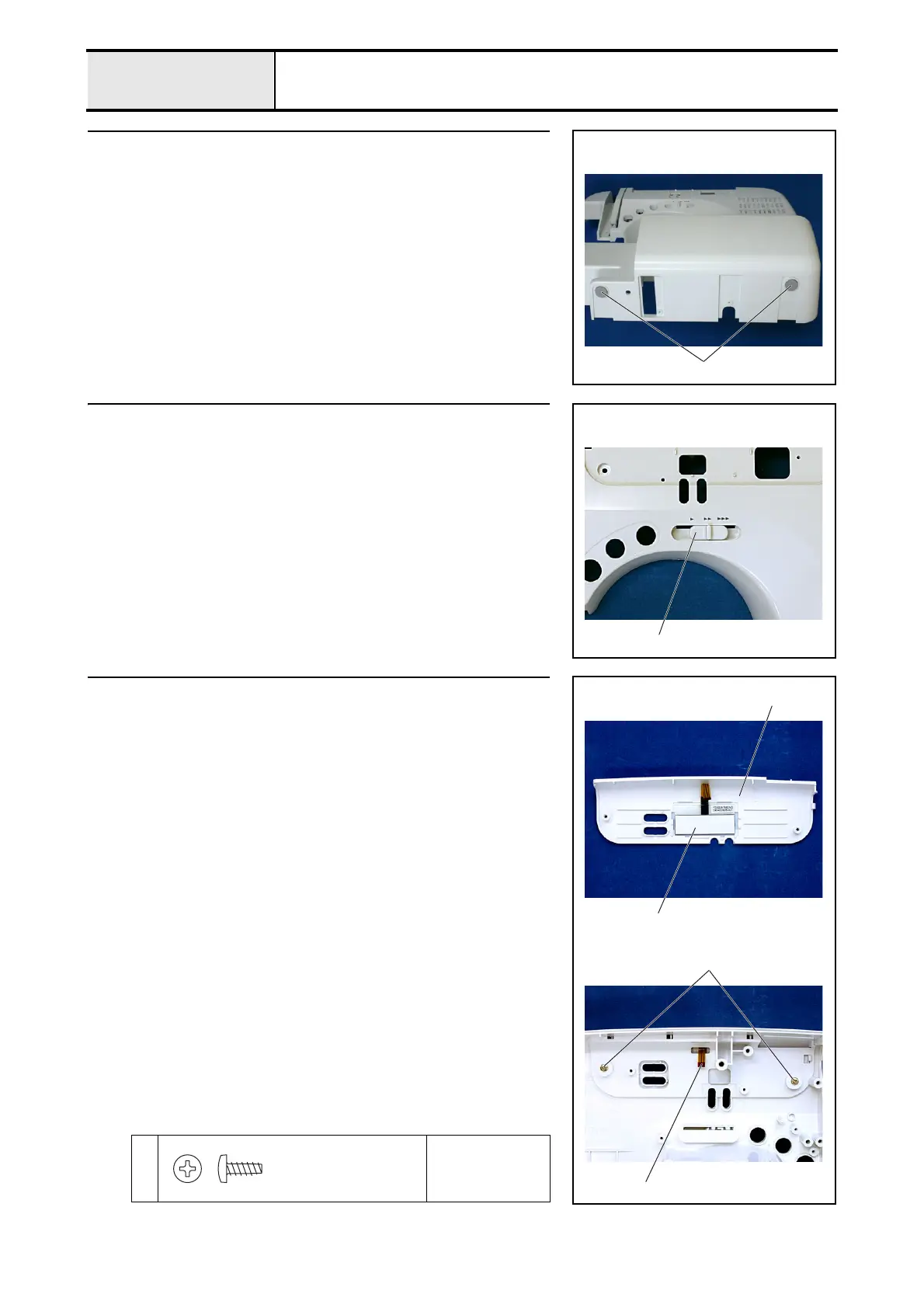

Brother BC800 - Base Plate Rubber Attachment; SV Keytop Attachment; Front Panel LCD Attachment

3 - 14
Main parts
Main unit
19 Base plate rubber attachment
1. Attach the 2 base rubber plates 1.
1
20 SV keytop attachment
1. Attach the SV keytop 1.
1
21 Front panel LCD attachment
1. Attach the LCD 1 and the front panel 2 with the 2 screws 1.
*Key point
• Insert the LCD cable 3 into the hole in the upper section of
the front cover.
1
Torque
0.39 – 0.78 N
·m
2
1
1
3
Taptite, Bind B
M3X8
Color; Gold
