Brother BC800 - LED Lamp Left Assembly; Threader Hook Attachment

3 - 45
Needle-presser unit
Main unit
Assembly

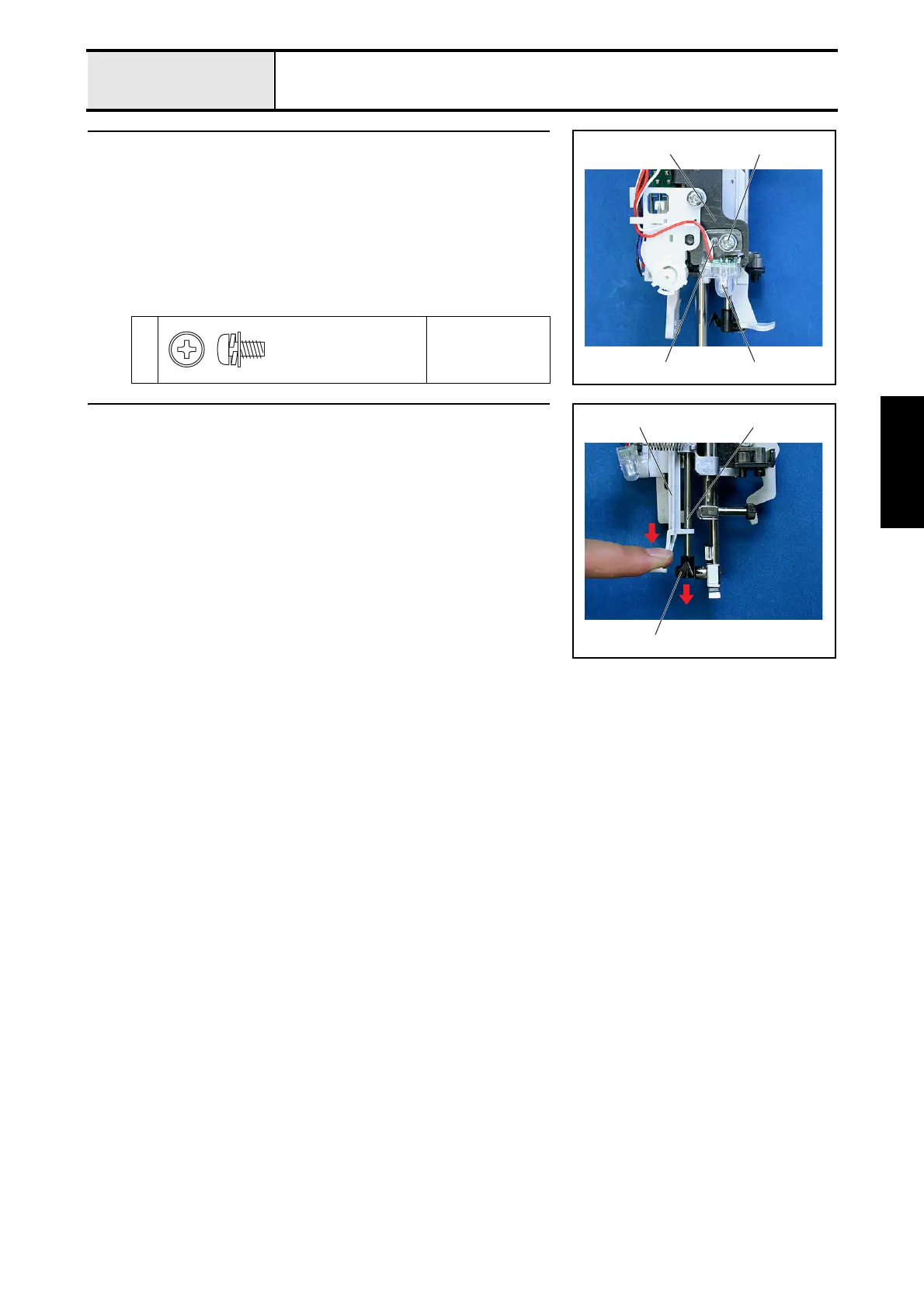

15 LED lamp left assembly
1. Attach the LED lamp L assembly 1 with the screw 1.
NOTE
• Align the boss 2 on the LED lamp L assembly 1 with the hole
on the base holder 3.
1
Torque
1.18 – 1.57 N
·m
1
1
3
2
Screw, Pan (S/P washer)
M4X8DA
Color; Silver
16 Threader hook attachment
1. Pull the needle thread slider 1 toward you, and then align the D-cut of the
threader hook assembly 2 with the D-cut of the needle thread shaft 3.
1 3
2
