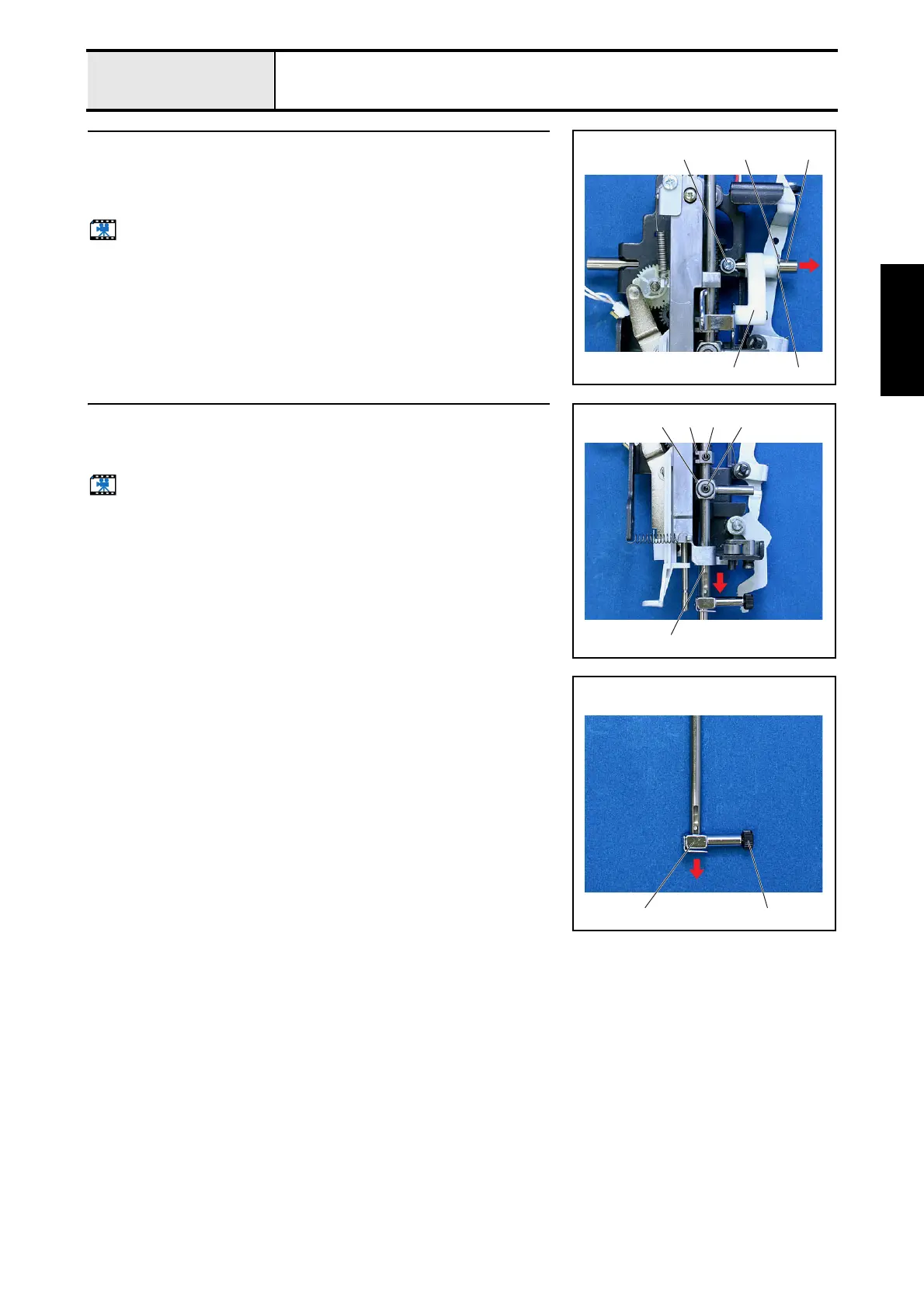

Brother BC800 - Thread Take-Up Lever Link Removal; Needle Bar Assembly Removal

2 - 29
Needle-presser unit
Main unit
Disassembly
5 Thread take-up lever link removal
1. Remove the retaining ring (E5) and spring washer 1, and then remove the
thread take-up lever link 3 from the shaft 2.
2. Remove the screw 1, and then pull the shaft 2 out of the base holder.
Start movie clip (CD-ROM version only)
1 2
3
1
Retaining ring E5
6 Needle bar assembly removal
1. Loosen the screws 1 and 2, and then pull the needle bar 1 down and
remove the needle thread block 2 and the needle bar block 3.
Start movie clip (CD-ROM version only)
1232
1
6-1 Needle bar ASSY disassembly
1. Remove the screw 1, and then remove the needle block assy 1.
11
