Brother BC800 - Lower Shaft Assembly Removal; Lower Shaft Bushing Removal

2 - 26
Feed unit
Main unit

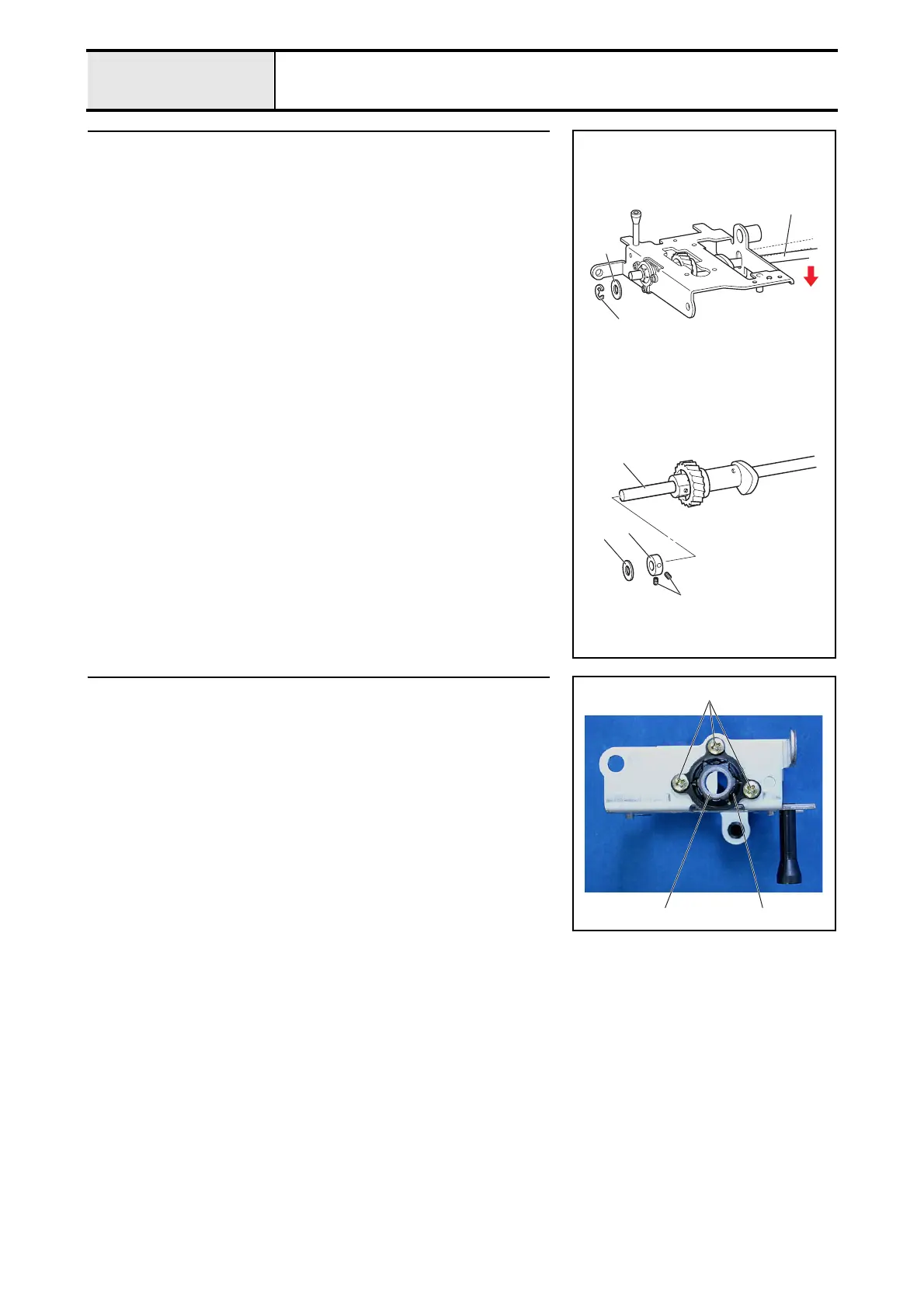

15 Lower shaft assembly removal
1. Remove the retaining ring (E6), and then remove the thrust washer 1.
2. Remove the lower shaft assembly 2.
*Key point
• Push down the lower shaft assembly 2 to remove it.
• Check that the gear does not contact the base plate.
3. Remove the 2 screws 1, and then remove the thrust wafer 1 and the set
collar 3.
1
2
Retaining ring E6
1
1
3
2
16 Lower shaft bushing removal
1. Remove the 3 screws 1.
2. Remove bushing presser B 1 and the lower shaft bushing 2.
1
2
1
