Brother BC800 - Face Plate a Assembly Attachment; Face Plate a ASSY Assembly

3 - 19
Main parts
Main unit
Assembly

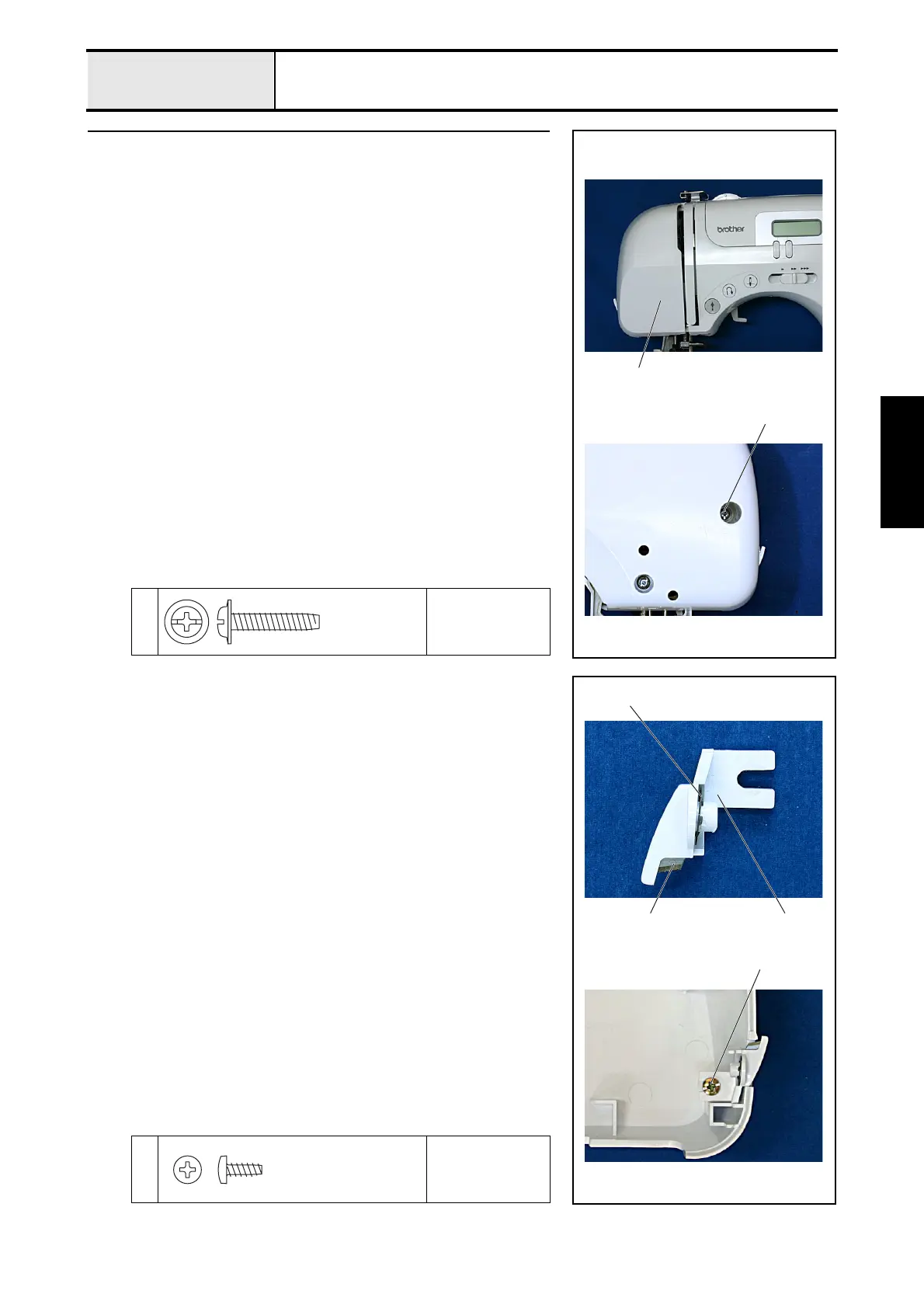

27 Face plate A assembly attachment
1. Attach the face plate A assembly 1 with the screw 1.
1
Torque
0.78 – 1.18 N
·m
1
1
Taptite, Cup P
M4X20
Color; Silver
27-1 Face plate A ASSY assembly
1. Attach the NT lower thread cutter 2 to the cutter cover 1, and then attach
the CS retaining ring 3.
*Key point
• Insert the narrow edge of the NT lower thread cutter 2 into
the cutter cover 1 first.
• Align the tab of the CS retaining ring with the groove on the
shaft of the cutter cover 1.
2. Attach the cutter cover assembly to face plate A 4 with the screw 1.
1
Torque
0.39 – 0.78 N
·m
3
21
1
Taptite, Bind B
M3X8
Color; Gold
