Brother BC800 - Needle Holder ASSY Disassembly

2 - 31
Needle-presser unit
Main unit
Disassembly

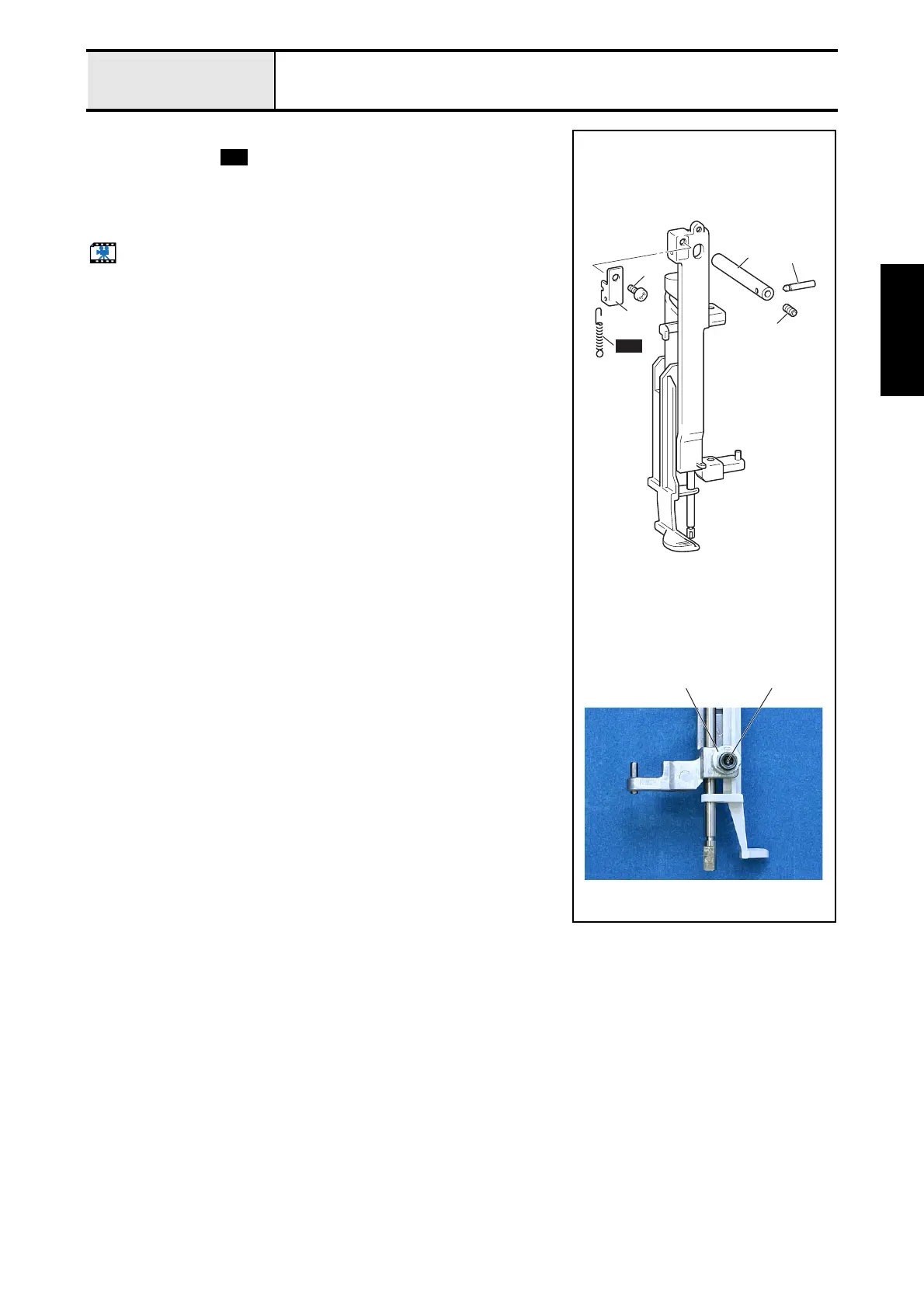

7-1 Needle holder ASSY disassembly
1. Remove spring .
2. Remove the screw 1, and then remove the plate 1.
3. Remove the screw 2. Pull out the shaft 2, and then remove needle holder
shaft A 3.
4. Remove the screw 3, and then remove the zigzag adjusting nut 4.
Start movie clip (CD-ROM version only)
34
1
2
3
1
S01
2
S01
