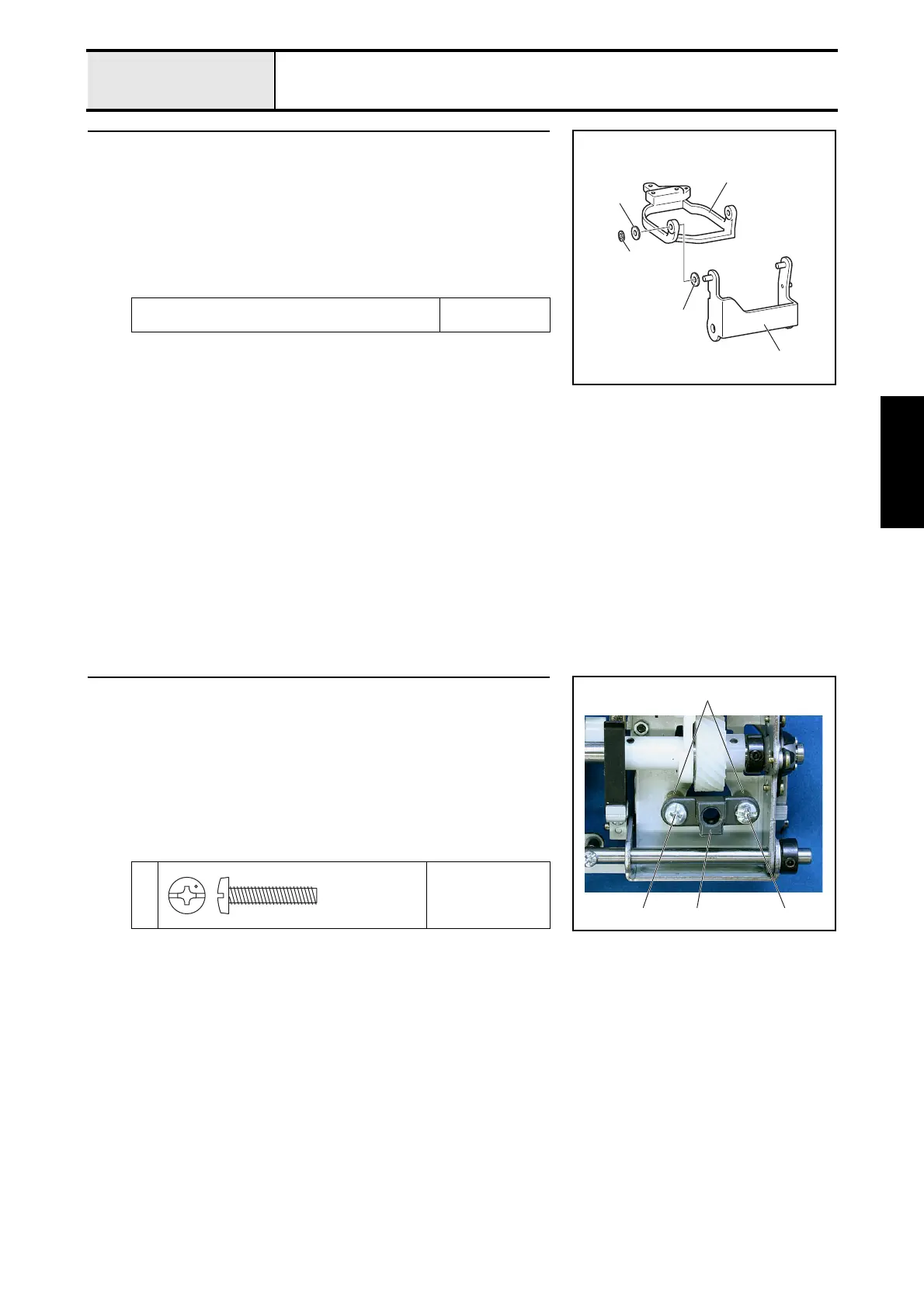

Brother BC800 - Feed Bar Attachment; Shaft Supporter Attachment

3 - 31
Feed unit
Main unit
Assembly
10 Feed bar attachment
1. Insert the polyester slider 2 to the left shaft of the feed arm A assembly
1.
2. Apply a bead of MOLYKOTE EM-30L to the shaft of the feed arm A
assembly 1.
3. Insert the feed bar 3 into the shaft of the feed arm A assembly 1.
4. Insert the polyester slider 2 into the left shaft of the feed arm A assembly
1, and then attach the retaining ring (CS4).
ApplyMOLYKOTE EM-30L to the shaft of the feed arm
A assembly.
Bead
XC8385***
Retaining
ring CS4
1
2
2
3
11 Shaft supporter attachment
1. Insert the collar 2 between the shaft supporter 1 and the base plate
assembly, and secure the shaft supporter with the 2 screws 1.
1
Torque
0.78 – 1.18 N
·m
11
2
1
Screw, Bind
M4X20
Color; Silver
