Brother HL-2250DN - Main Frame L ASSY

3-53
Confidential
9.22 Main Frame L ASSY
(1) Remove the two Taptite bind B M4x12 screws to remove the Front chute ASSY.
(2) Remove the Paper edge sensor harness ASSY from the Guides of the Main frame L
ASSY.

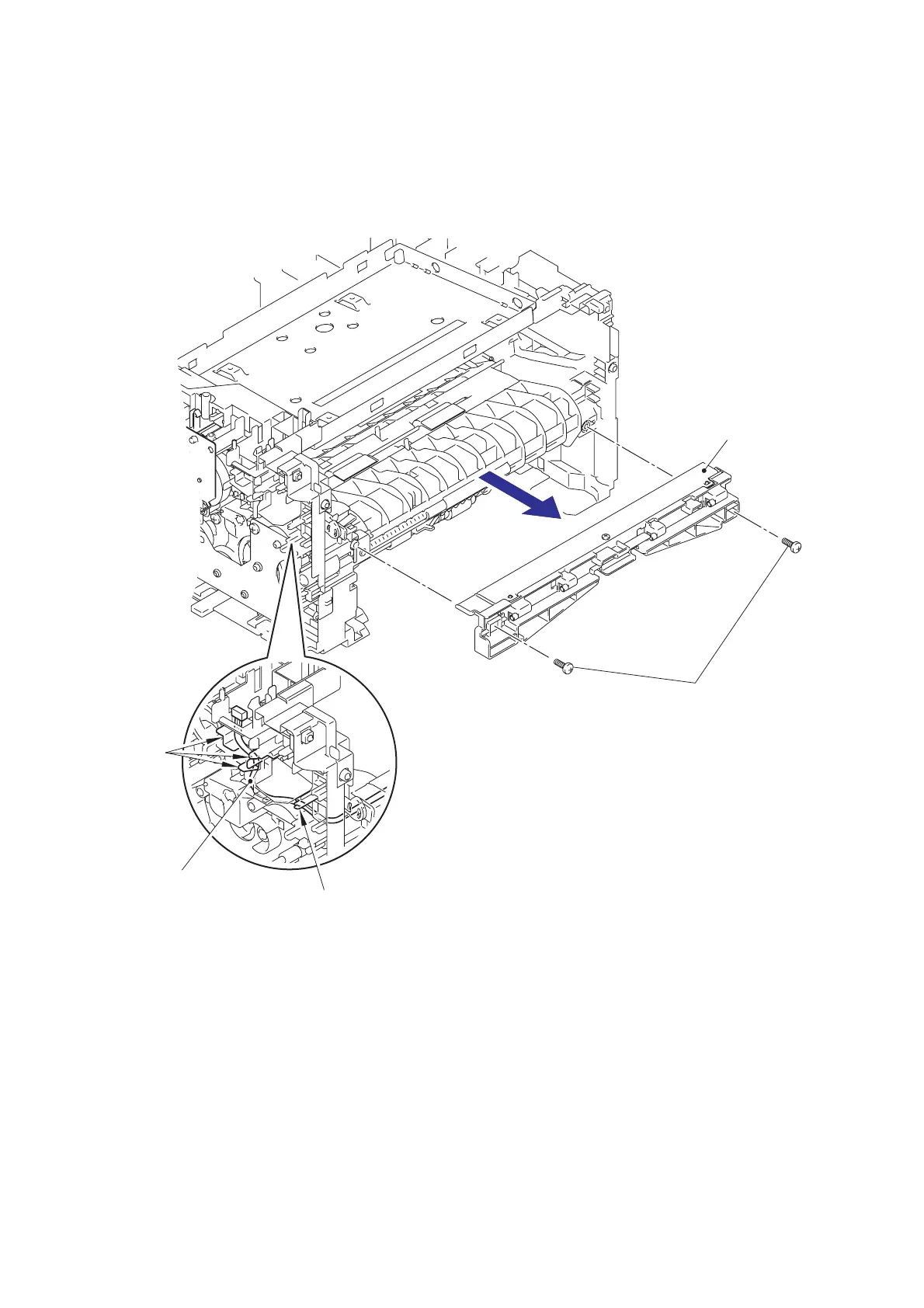

Fig. 3-52
Taptite bind B M4x12
Guides
Guide
Front chute ASSY
Paper edge sensor
harness ASSY
(HL-2250DN/2270DW/
2275DW only)
