Brother HL-2250DN Service Manual

4-2
Confidential
1.1 Rewriting the Firmware (Main Program)
1.1.1 Checking firmware version
Check if the firmware written on the main PCB ASSY is the latest version or not. If it is the
latest version, there is no need to write the firmware. If it is not, make sure to write the
firmware to the main PCB ASSY in accordance with "1.1.2 Rewriting the firmware".
<How to check firmware version>
When the front cover is closed, press the [Go] button three times. And print the Printer
Settings to check the firmware version.
1.1.2 Rewriting the firmware
(1) Turn off your PC, and turn the power supply of the printer off.
(2) Connect the PC and printer with the USB cable.
(3) Open the front cover of the printer. Turn on the power supply while pressing the [Go]
button, and then release the [Go] button after checking the lighting of the Toner/Drum/
Error LED.
(4) Check that all LEDs light off, and then press the [Go] button four times. Wait a few
seconds and check that blink the Toner/Drum/Error LED once, and check that all LEDs
light off. And then the printer shift to the "Rewrite firmware mode".
(5) Turn on your PC.
(6) Open the "hl2200" folder, and Double-click the "FILEDG32.EXE" to start.

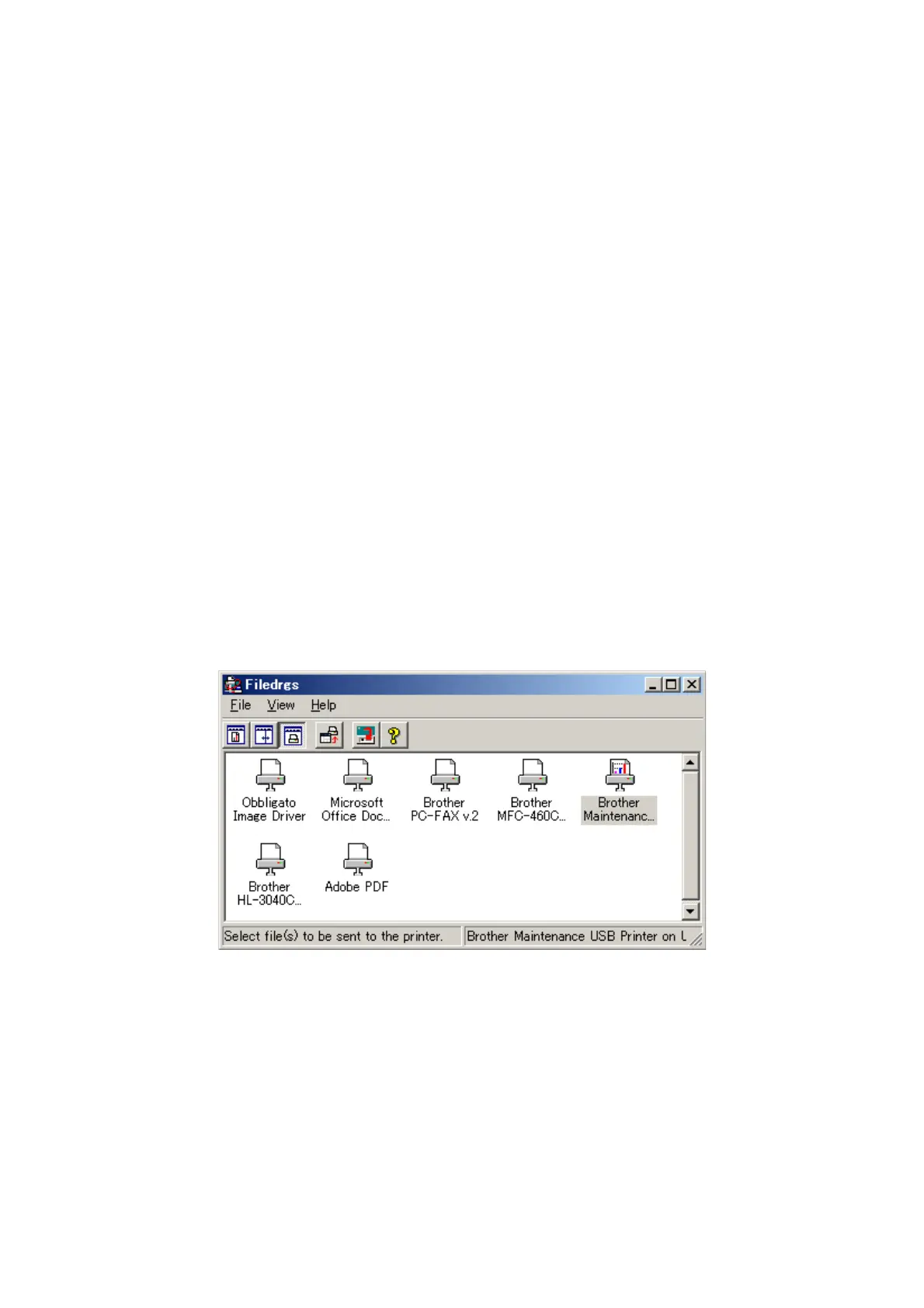

The following screen appears. Select the "Brother Maintenance USB Printer".
(7) Drag the firmware (LZXXXX_$.blf) and drop it onto the Brother Maintenance USB Printer
icon. The firmware files are sent to the printer and they are written into the flash ROM
automatically.
(8) The Ready LED and Error LED blink irregularly while the firmware being rewritten. The
all LEDs light up when rewriting the firmware is completed. Be sure not to disconnect the
USB cable or to turn off the power supply of the PC before the rewriting is completed.
(9) When the front cover is closed, press the [Go] button three times. And print the "Printer
Settings" to recheck the firmware version.
(10) Turn the power supply of the printer off.

Brother HL-2250DN Specifications

General

Color	No
N-up printing	2, 4, 6, 25
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Duplex print speed (black, normal quality, A4/US Letter)	5 ppm
Maximum internal memory	- MB
Sound power level (standby)	31 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	100 sheets
Total number of input trays	1
Maximum duty cycle	- pages per month
Page description languages	PCL 6
Custom media width	76.2 - 216 mm
Maximum print size	216 x 406 mm
Custom media length	116 - 406.4 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Transparencies
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Sustainability certificates	ENERGY STAR
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	495 W
Power consumption (PowerSave)	0.9 W
Package weight	8300 g
Operating temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80 %
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Server operating systems supported	Windows 2000 Advanced Server, Windows 2000 Server, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Dimensions (WxDxH)	368 x 360 x 183 mm
