Brother HL-2250DN Service Manual

4-14
Confidential
3. IF YOU REPLACE THE LOW VOLTAGE POWER SUPPLY PCB ASSY
3.1 Reset of Irregular Power Supply Detection Counter
The irregular power supply detection counter is counted up when the printer detects irregular
power supply. If the counter reaches to the limit, the printer shows the service error to
replace the low voltage power supply PCB because it might be damaged by recursive
irregular power supply.
In this case, if the same power supply is used, the same error may occur even when the low
voltage power supply PCB ASSY is replaced. Ask the user to review the installation
environment.
(1) Open the front cover, and turn the power supply of the printer on while pressing down
the [Go] button. Make sure that the Toner/Drum/Error LED light up.
(2) Release the [Go] button, and then make sure that all LEDs light off.
(3) Press the [Go] button for over 2 seconds, and the Error LED light up. And then the
printer goes into the PIT3 mode.
(4) Connect the printer to PC with USB cable.

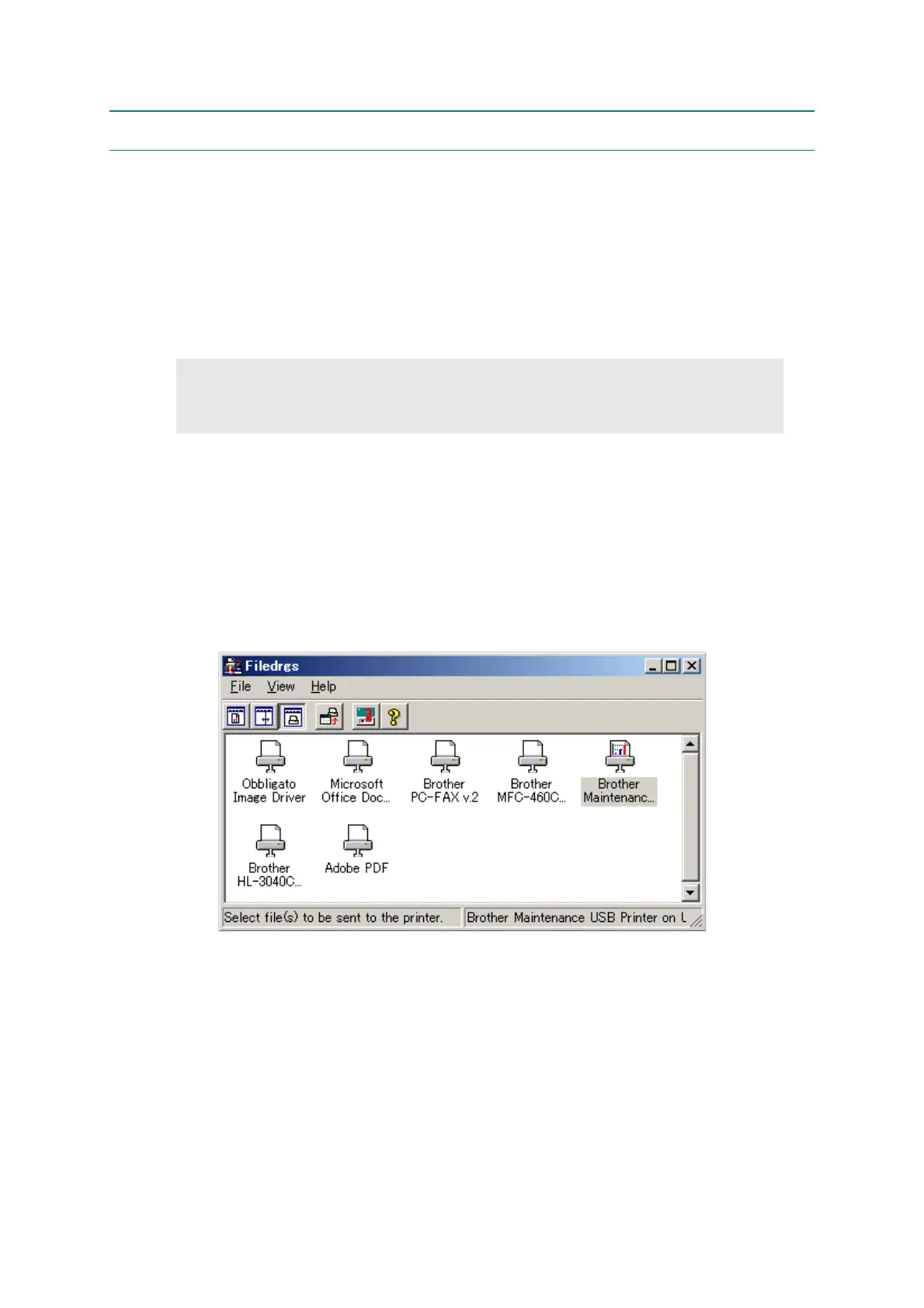

(5) Double-click the "FILEDG32.EXE" on PC to start. The following screen appears.
Select the "Brother Maintenance USB Printer".
(6) Drag the SQWAVE.PJL and drop it onto the Brother Maintenance USB Printer icon.
Note :
• The maintenance driver must have been installed. (Refer to "APPENDIX 3
INSTALLING THE MAINTENANCE PRINTER DRIVER".)

Brother HL-2250DN Specifications

General

Color	No
N-up printing	2, 4, 6, 25
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Duplex print speed (black, normal quality, A4/US Letter)	5 ppm
Maximum internal memory	- MB
Sound power level (standby)	31 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	100 sheets
Total number of input trays	1
Maximum duty cycle	- pages per month
Page description languages	PCL 6
Custom media width	76.2 - 216 mm
Maximum print size	216 x 406 mm
Custom media length	116 - 406.4 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Transparencies
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Sustainability certificates	ENERGY STAR
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	495 W
Power consumption (PowerSave)	0.9 W
Package weight	8300 g
Operating temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80 %
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Server operating systems supported	Windows 2000 Advanced Server, Windows 2000 Server, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Dimensions (WxDxH)	368 x 360 x 183 mm
