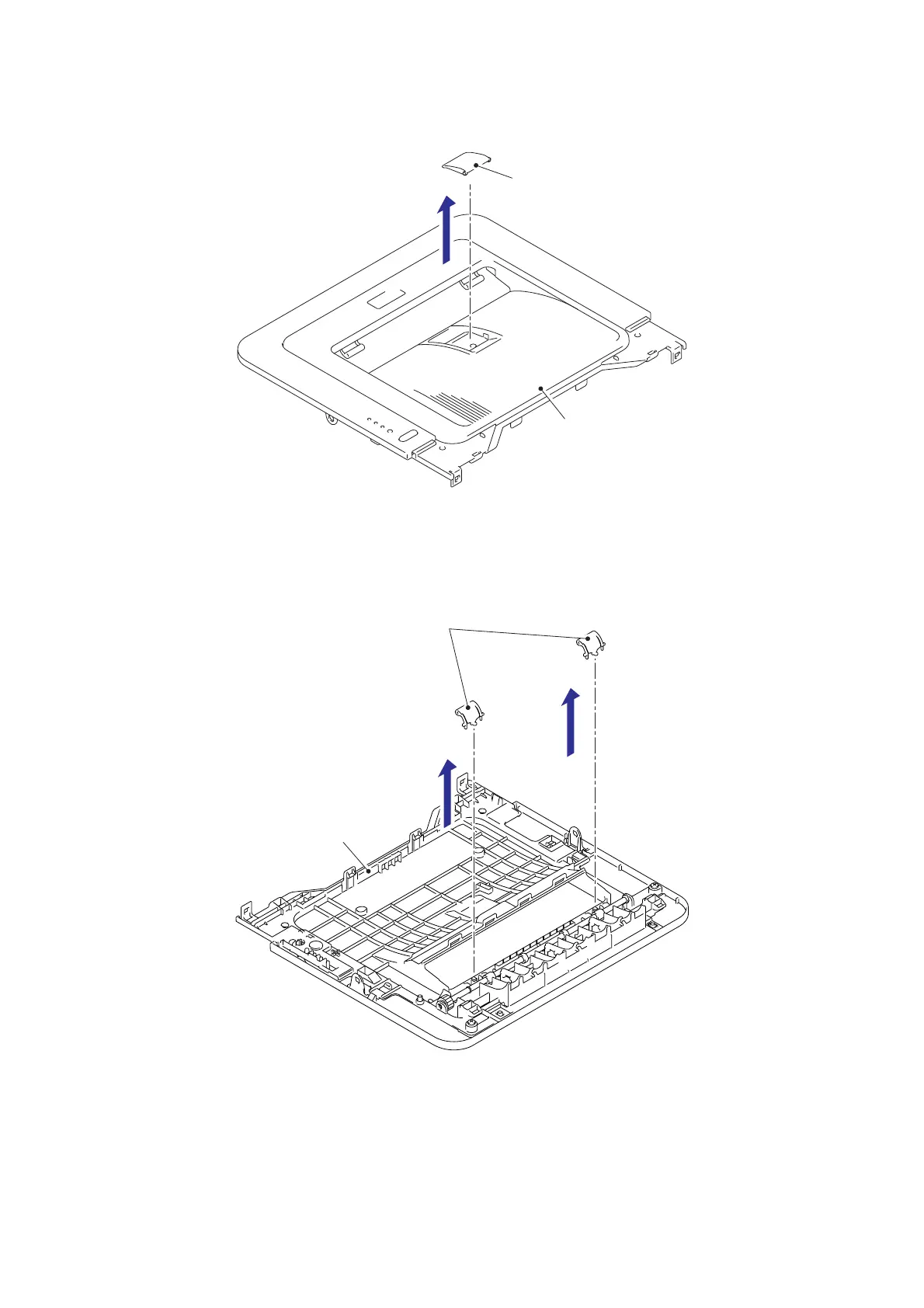

(3) Remove the Support flap 2 from the Top cover ASSY.
Fig. 3-27
(4) Turn the Top cover ASSY upside down.
(5) Remove the two Paper stack levers from the Top cover ASSY.
Fig. 3-28
Top cover ASSY
Support flap 2
Paper stack levers
Top cover ASSY
