Brother HL-2270DW - Paper Eject Sensor PCB ASSY

3-59
Confidential
9.25 Paper Eject Sensor PCB ASSY
(1) Remove the Taptite cup S M3x6 SR screw and the two Taptite bind B M4x12 screws.
(2) Release the Hooks to remove the Main PCB shield.

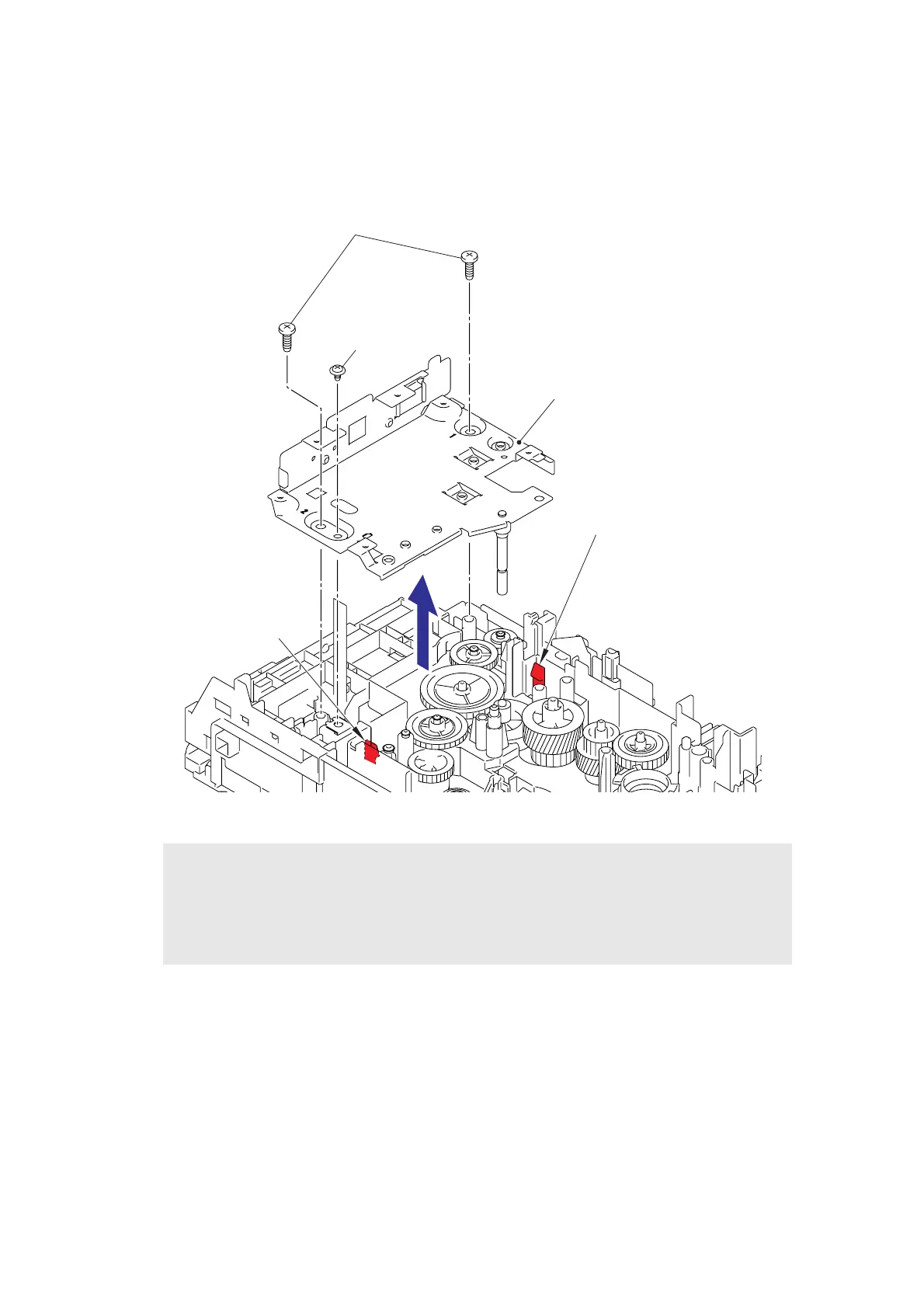

Fig. 3-58
Assembling Note:
• When assembling the Main PCB shield, insert the Flat cable of the Paper eject sensor
PCB ASSY into the hole of the Main PCB shield.
• When assembling the Main PCB shield, tighten the two Taptite bind B M4x12 screws in
numerical order written in the plate.
Main PCB shield
Hook
Hook
Taptite bind B M4x12
Taptite cup S M3X6 SR
1
2
