9.9 Top Cover ASSY
(1) Release the Hooks of the Top cover ASSY from A to F.
(2) Pull the Top cover ASSY to the direction of the arrow 2a, and remove it from the Main
body.

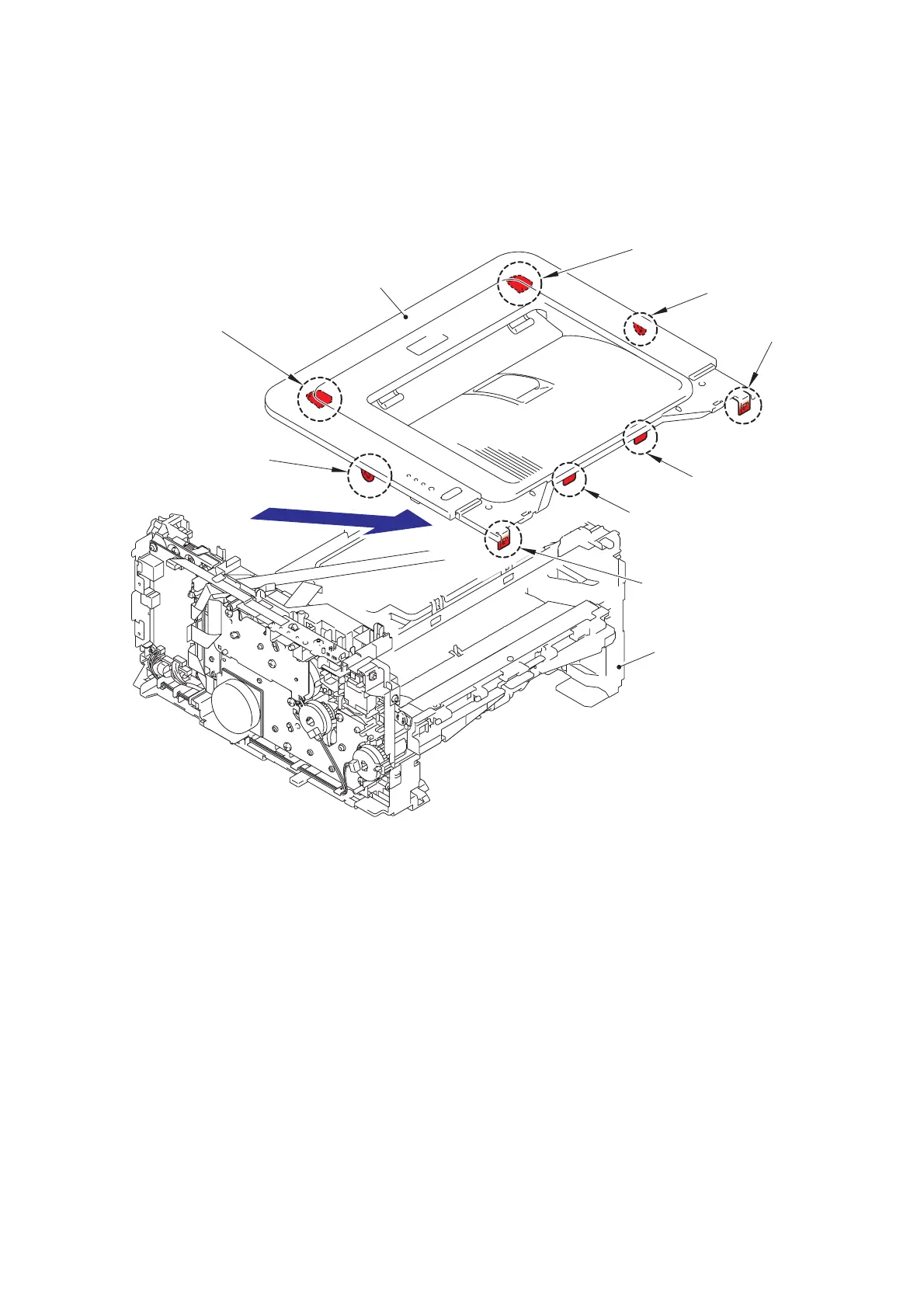

Fig. 3-26
Main body
Top cover ASSY
Hook
Hook F
Hook B
Hook C
Hook D
Hook E
Hook A
Hook
2a
