Brother HL-2270DW - Paper Tray

3-19
Confidential
9.1 Paper Tray

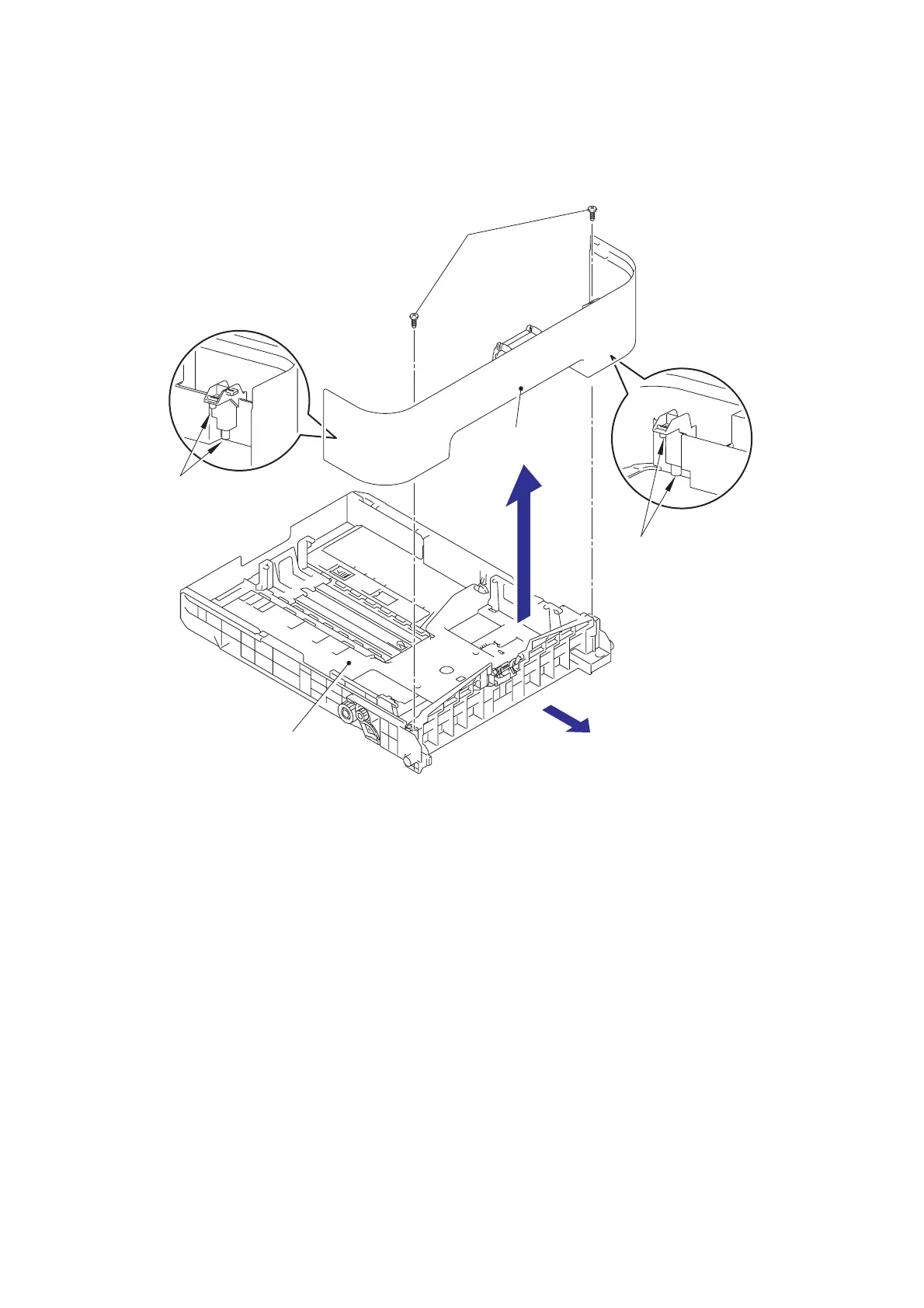

(1) Remove the two Taptite bind B M4x12 screws, and release the two Bosses (Upper side),
and remove the Tray cover from the Paper tray.
Fig. 3-12
Bosses
Back side view
Bosses
Back side view
Tray cover
Taptite bind B M4x12
Paper tray
