(2) Release the Hooks of the Separation pad ASSY from the Paper tray.
(3) Press both side Arms of the Separation pad ASSY to remove the Bosses, and remove
the Separation pad ASSY from the Paper tray.
(4) Remove the Separation pad spring from the Separation pad ASSY.

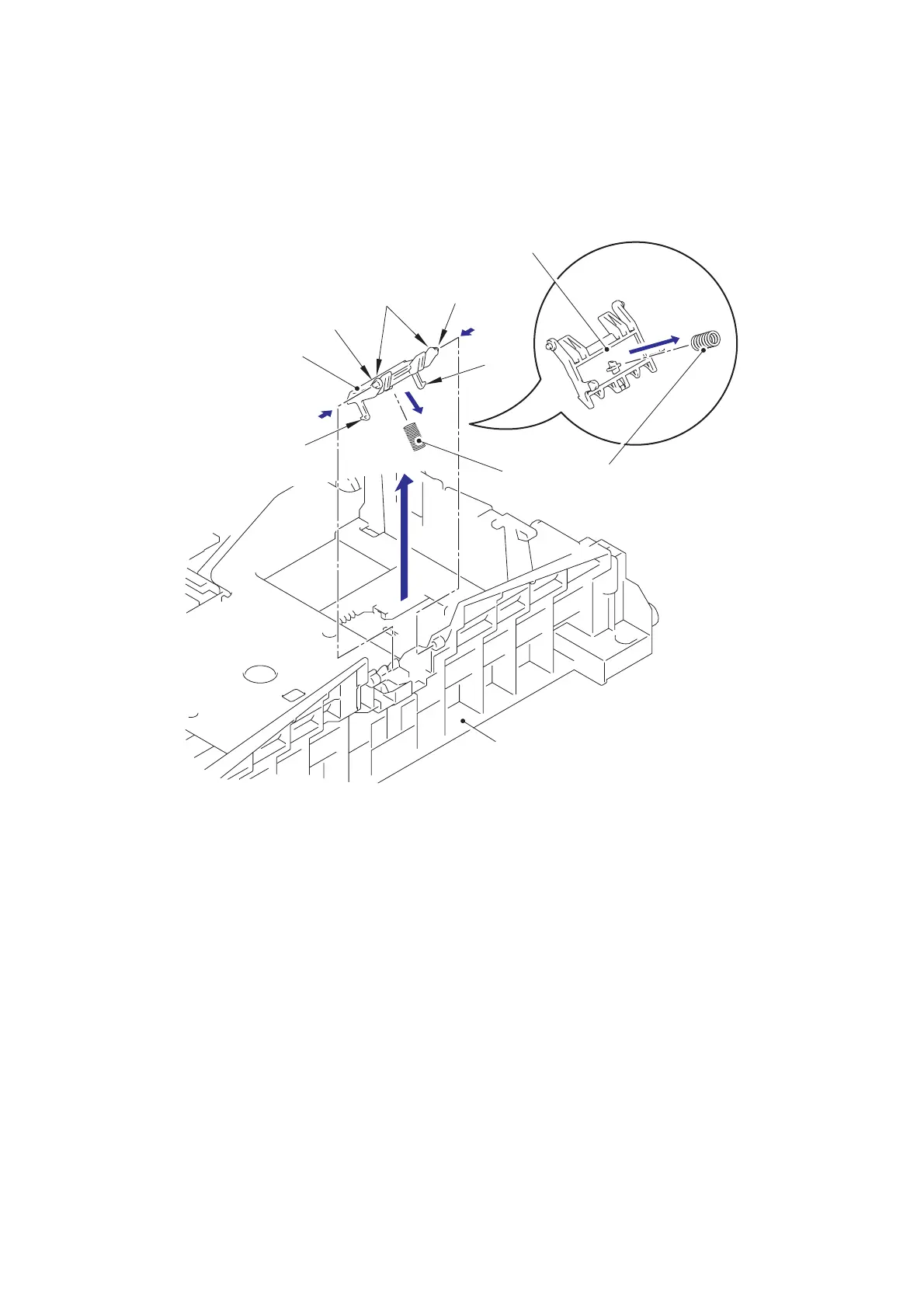

Fig. 3-13
Separation pad ASSY
Paper tray
Separation pad ASSY
Boss
Hook
Hook
Arms
Boss
3b
4
3a
3a
Separation pad spring
