Brother HL-2270DW - Fuser Unit

3-35
Confidential
9.10 Fuser Unit

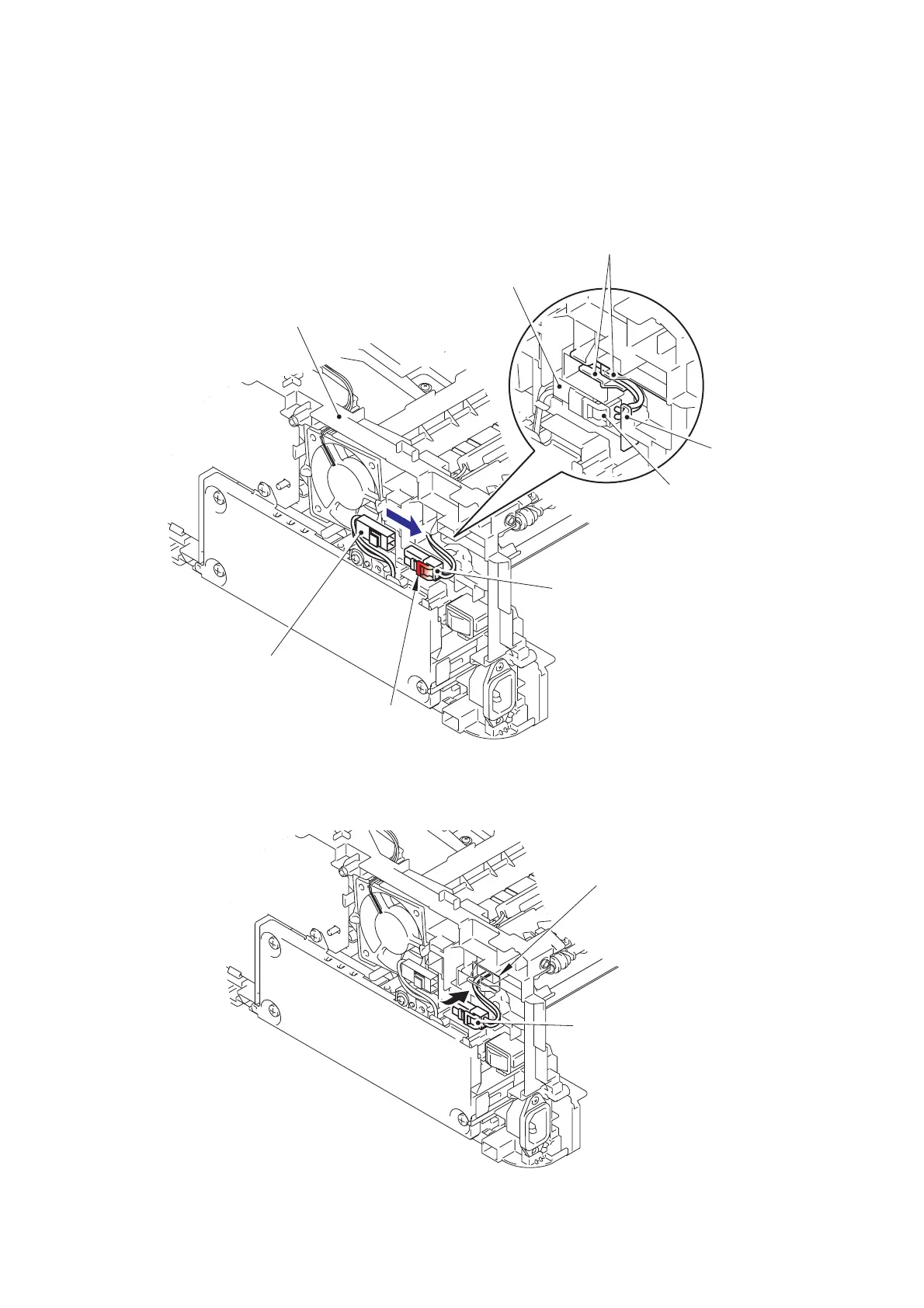

(1) Release the Harness of the Fuser unit from the Guides of the Main frame R ASSY.
(2) Disconnect the Connector of the Low voltage power supply PCB ASSY while pushing
the Hook of the Connector of the Fuser unit.
Fig. 3-31
(3) Put the Connector of the Fuser unit through the Hole of the Main frame R ASSY.
Fig. 3-32
Guide
Guides
Connector
(low voltage power
supply PCB ASSY)
Main frame R ASSY
Connector
(low voltage power
supply PCB ASSY)
Connector (fuser unit)
Connector (fuser unit)
Hook
Connector (fuser unit)
Hole
