(9) Remove the Low voltage power supply PCB ASSY, and disconnect the three connectors
from the rear side.
(10) Remove the LV insulation sheet.

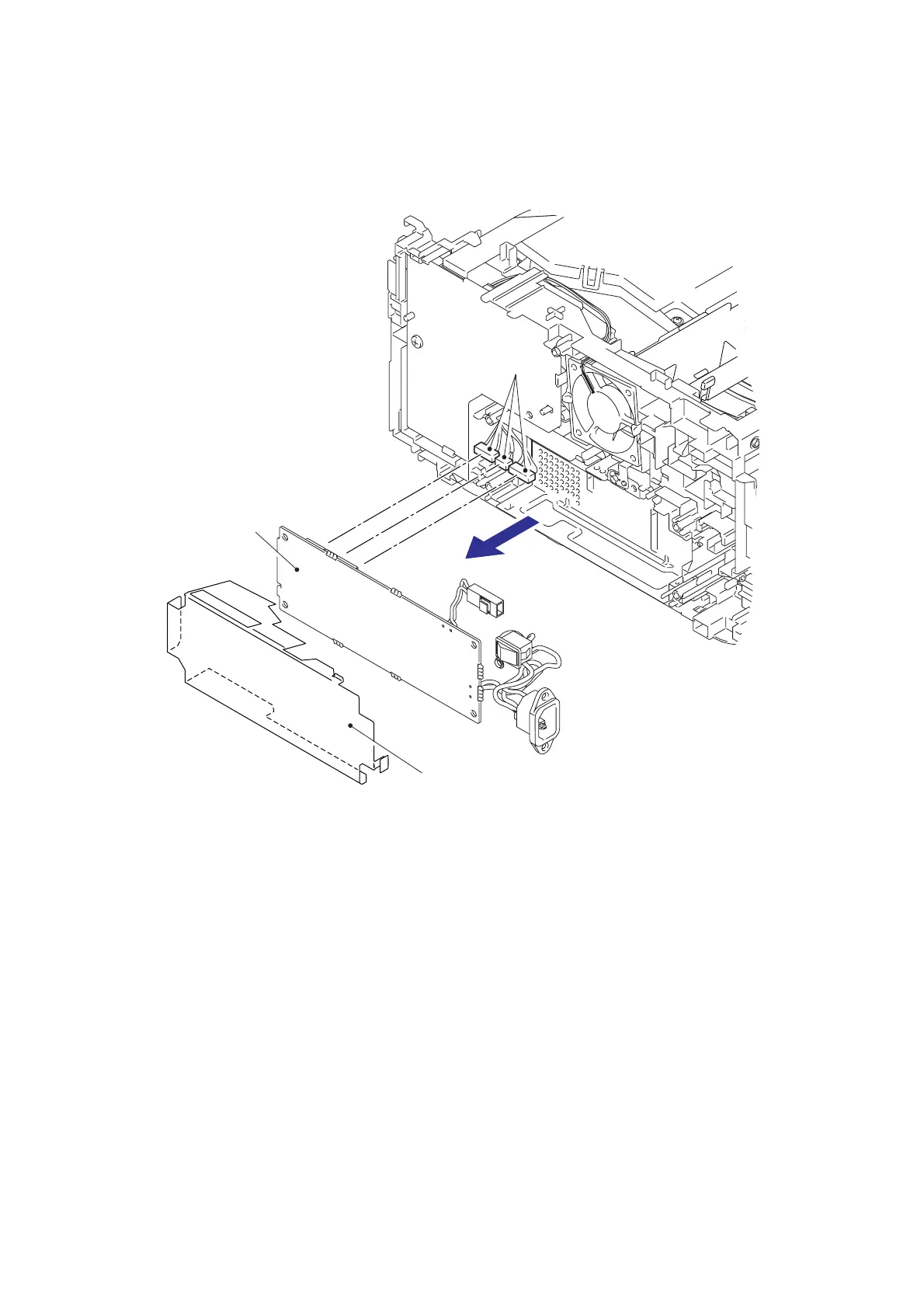

Fig. 3-38
Low voltage power
supply PCB ASSY
LV insulation sheet
Connectors
